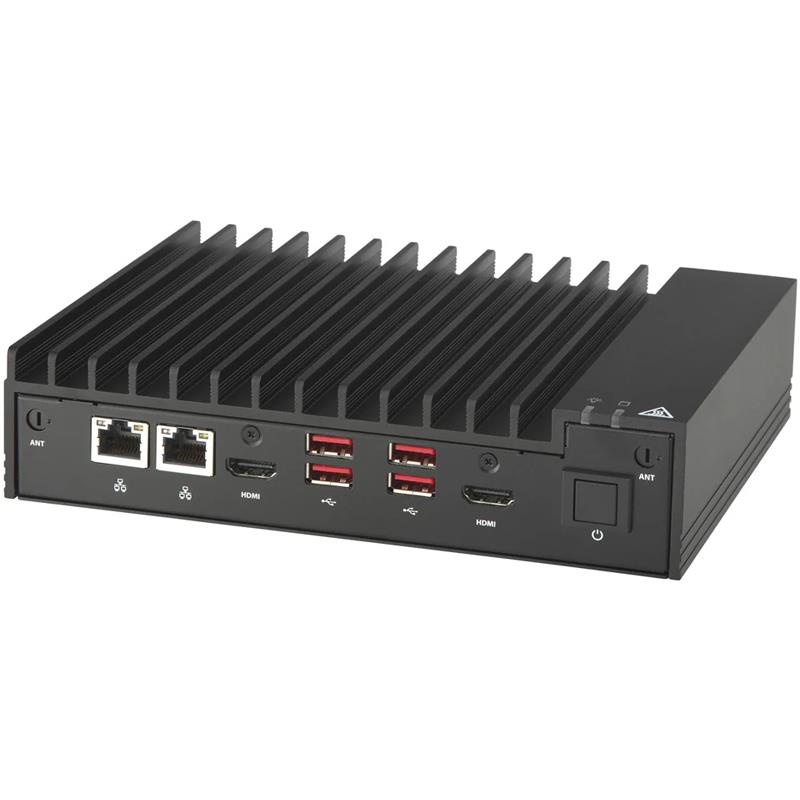

  2. Supermicro SYS-E100-14AM-E-TB2 IoT Fanless Embedded Intel Atom x7433RE Processor
Supermicro SYS-E100-14AM-E-TB2 IoT Fanless Embedded Intel Atom x7433RE Processor
Supermicro SYS-E100-14AM-E-TB2 IoT Fanless Embedded Intel Atom x7433RE Processor
Supermicro SYS-E100-14AM-E-TB2 IoT Fanless Embedded Intel Atom x7433RE Processor

Supermicro SYS-E100-14AM-E-TB2 IoT Fanless Embedded Intel Atom x7433RE Processor

• Industrial / Automation
• Healthcare
• Digital Signage Kiosk, Interactive info system
• Retail

Barebone Compact Fanless System, Embedded Intel Atom x7433RE, 3.4 GHz (4-Core, Up to 6MB Cache / TDP 9W). Up to 16GB DDR5-4800 in 1 DIMM Slots, SO-DIMM, Chipset: System on Chip, On-Board: ALC 888S HD Audio, 1 Intel UHD Graphics Port, Drive Bays: 1 M.2 PCIe 3.0 x1 NVMe Slot (M-key 2242/2280), 1 M.2 PCIe 3.0 x1 SATA Slot (B-key 2242/2280/3052, USB 3.0), Network Connectivity: 2 RJ45 2.5 GbE LAN ports (Intel I226), 60W Power Supply - (CSE-E101-05 + Super A4SAN-E-WOHS) - SYS-E100-14AM-E-TB2

$ 511.50$ 511.50511.5USD

$ 511.50

Option not available

PreOrder
5 lb

    This combination does not exist.

    Add to Cart

    1. Intel® Atom® x7433RE (TDP 9W / 4C)
    2. DDR5-4800MT/s 1 DIMM max 16GB
    3. 2x RJ45 2.5GbE (Intel i226-IT)
    4. Fanless supporting max 60°C with Fin Bottom Cover (Optional accessory)
    5. DC in 9~36V Terminal Block 2pin
    6. 2x HDMI 1.4 ports, 4x USB3.2 ports and 2x USB2.0 ports, 4x COM ports (COM1/2 RS232/422/485 + COM3/4 RS232)
    7. M.2:1x M-Key 2242 / 2280 ,1x B-Key 2242 / 2280 /3052 (NANO SIM slot),1x E-Key 2230

    Extra Specifications for Supermicro SYS-E100-14AM-E-TB2 IoT Fanless Embedded Intel Atom x7433RE Processor

    On-Board Devices
    ChipsetSystem on Chip
    Network Connectivity2 RJ45 2.5GbE with Intel® I226-IT
    Input / Output
    LAN2 RJ45 2.5 GbE LAN ports (Intel® I226)
    USB2 USB 2.0 Type-A ports(rear)
    4 USB 3.2 Gen2 Type-A ports(Front)
    Video2 HDMI 1.4 ports(Front)
    Serial4 COM ports(Rear)
    System BIOS
    BIOS TypeAMI 256MB SPI Flash EEPROM
    Management
    SoftwareSupermicro SuperDoctor® 5 (SD5)
    Power configurationsACPI Power Management
    Power-on mode control for AC power loss recovery
    Force power-on by jumper
    +9~36V DC Power Input
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    FeaturesSecure Boot
    Product SKUs
    Product SKUsSYS-E100-14AM-E-TB2
    Motherboard
    MotherboardSuper A4SAN-E-WOHS
    Processor
    CPUIntel® Atom® x7433RE
    Core CountUp to 4C/4T; Up to 6MB Cache
    NoteSupports up to 9W TDP CPUs (Air Cooled)
    System Memory
    MemoryView Memory Options
    Slot Count: 1 DIMM slots/1 Channels
    Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
    Memory Voltage1.1V
    Chassis
    Form FactorFanless Embedded
    ModelCSE-E101-05
    Dimensions and Weight
    Height1.73" (44 mm)
    Width7.68" (195 mm)
    Depth5.94" (150 mm)
    Package5.12" (H) x 11.81" (W) x 11" (D)
    WeightGross Weight: 4.3 lbs (1.95 kg)
    Net Weight: 2.16 lbs (0.98 kg)
    Palletized Packing (W x H x L)54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
    Available ColorBlack
    Expansion Slots
    M.2
    Drive Bays / Storage
    M.2View M.2 Options
    1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280)
    1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280/3052; USB 3.0)
    System Cooling
    FansN/A
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)
    Operating Temperature: -20°C to 50°C (-4°F to 122°F) with 0.7 m/s airflow
    NamePart NumberPriceAdd to CartQty.Description
    Audio KitMCP-280-10001-0B$ 24.501Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS
    Din Rail KitMCP-290-10201-0N1CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
    Thermal SolutionMCP-270-10105-0B$ 110.501FIN base bottom cover for M.2 NMVe
    Thermal SolutionMCP-270-10105-1B1FIN base bottom cover for HAILO-8 M.2 Module

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
