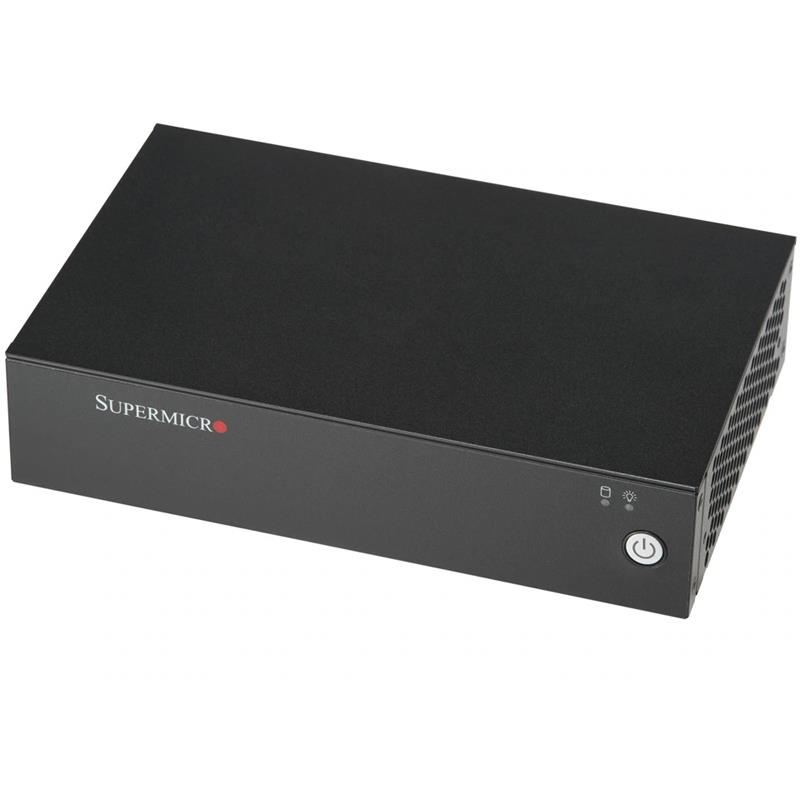

Supermicro SYS-E102-14AM-H IoT Fan-based Embedded Intel Atom x7835RE Processor

Supermicro SYS-E102-14AM-H IoT Fan-based Embedded Intel Atom x7835RE Processor

• IoT Gateway
• Network Security Appliance
• SD WAN
• Embedded Networking Applications

Barebone Fan-based System, Embedded Intel Atom x7835RE, 3.6 GHz (8-Core, Up to 6MB Cache / TDP 12W). Up to 16GB DDR5-4800 in 1 DIMM Slots, SO-DIMM, Chipset: System on Chip, On-Board: ALC 888S HD Audio, 1 Intel UHD Graphics Port, Drive Bays: 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280, USB 3.0), 1 M.2 PCIe 3.0 x1 NVMe/SATA slot (M-key 2242/2280) Network Connectivity: 2 RJ45 2.5 GbE LAN Ports, 60W Power Supply - (CSE-E102TF + A4SAN-H) - SYS-E102-14AM-H

1. Intel® Atom® x7835RE(TDP 12W/8C) with air cooling
2. Up to 16GB DDR5-4800MT/s in 1DPC
3. 2x RJ45 2.5GbE (Intel i226-IT)
4. 1x M.2 M-Key 2242/2280 (PCIe x3.0),1x M.2 B-key 2242/2280(SATA 3.0)

Extra Specifications for Supermicro SYS-E102-14AM-H IoT Fan-based Embedded Intel Atom x7835RE Processor

System Memory
Memory Voltage	1.1V
Memory	View Memory Options
	Slot Count: 1 DIMM slots/1 Channels
	Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 2.5GbE with Intel® I226-IT
Input / Output
LAN	2 RJ45 2.5 GbE LAN ports (Intel® I226)
USB	4 USB 3.2 Gen2 Type-A ports(Rear)
Video	2 HDMI 1.4 ports(Rear)
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro SuperDoctor® 5 (SD5)
Power configurations	ACPI Power Management
	Power-on mode control for AC power loss recovery
	Force power-on by jumper
Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Secure Boot
Front Panel
Buttons	Power On/Off
LED	LAN1 activity
	LAN2 activity
	Power status
	HDD Status
	LAN3 activity
	LAN4 activity
	LTE1 activity
	LTE2 activity
	LTE3 activity
	WIFI activity
Product SKUs
Product SKUs	SYS-E102-14AM-H
Motherboard
Motherboard	Super A4SAN-H
Processor
CPU	Intel® Atom® x7835RE
Core Count	Up to 8C/8T; Up to 6MB Cache
Note	Supports up to 12W TDP CPUs (Air Cooled)
Chassis
Form Factor	Fan-based Embedded
Model	CSE-E102TF
Dimensions and Weight
Height	1.72" (44 mm)
Width	7.48" (190 mm)
Depth	4.72" (120 mm)
Package	5.12" (H) x 11.81" (W) x 11.02" (D)
Weight	Gross Weight: 4.5 lbs (2 kg)
	Net Weight: 2.65 lbs (1.2 kg)
Palletized Packing (W x H x L)	46.5" (1180 mm) x 39.4" (1000 mm) x 37.4" (950 mm)
Available Color	Black
Expansion Slots
M.2
Drive Bays / Storage
M.2	View M.2 Options
	1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280)
	1 M.2 PCIe 3.0 x1 NVMe/SATA slot (M-key 2242/2280)
System Cooling
Fans	1x 40x40mm Fan(s)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Operating Temperature: 0°C to 50°C (32°F to 122°F)

Name	Part Number	Price	Add to Cart	Qty.	Description
	Power Adapter	MCP-250-10134-0N	$ 50.50		1	FSP 60W Lockable Power Adapter w/o power cord - EN62368
	Power Adapter	CBL-PWCD-0260-IS	$ 20.00		1	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
Wall mount/VESA mount kit	MCP-290-10113-0B			1	Wall mount/VESA mount for E101 series/E102

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro SYS-E102-14AM-H IoT Fan-based Embedded Intel Atom x7835RE Processor

$ 497.50$ 497.50497.5USD

$ 497.50
