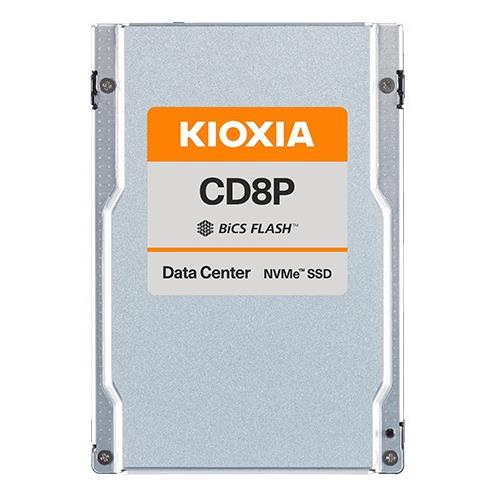

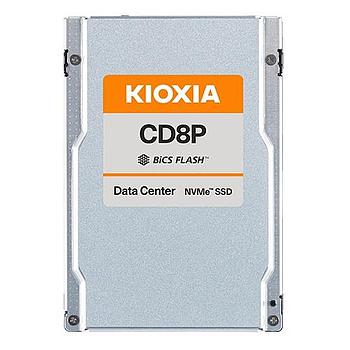

Kioxia KCD8XPUG3T20 Hard Drive 3.20TB NVMe SSD PCIe 5.0 (32 GT/s x4) 2.5in x 15mm TLC 3DWPD Sanitize Instant Erase (SIE) - CD8P-V Series

Reliable, consistent performance for 24/7 operations
Power loss protection (PLP) + end-to-end data correction
Single-port architecture optimized for data center workloads
Massive 3.20TB capacity, Ideal for high-density deployments

The NVMe Solid State Drive (SSD) Features 3.20TB Storage Capacity Built With PCIe 5.0 Interface And NVMe 2.0 Protocol. Designed in 2.5-inch Form Factor Thickness of 15mm. Utilizing BiCS FLASH TLC Technology, With a Durability Rating of 3DWPD. Optimized For A Broad Range Of Scale-out and Cloud Applications, Features: Sanitize Instant Erase (SIE). KIOXIA CD8P-V Series - OEM

Data Center NVMe Mixed Use SSD

KIOXIA CD8P-V Series is a mixed-use data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-V Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 400K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-V Series).

Featuring

KIOXIA BiCS FLASH generation 5 TLC flash memory, CD8P-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB, making them well-suited for hyperscale data center applications.

Key Features

PCIe 5.0, NVMe 2.0 specification compliant
Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
Form factor: 2.5-inch, 15 mm thickness
Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH generation 5 TLC flash memory
Single-port design, optimized for data center class workloads
Consistent performance and reliability for demanding 24x7 environments
Designed for high-density storage deployments
Power loss protection (PLP) and end-to-end data correction

Extra Specifications for Kioxia KCD8XPUG3T20 Hard Drive 3.20TB NVMe SSD PCIe 5.0 (32 GT/s x4) 2.5in x 15mm TLC 3DWPD Sanitize Instant Erase (SIE) - CD8P-V Series

Main Specifications
Device Type	Solid state drive - internal
Capacity	3.20 TB
Interface	PCIe 5.0, NVMe 2.0
Maximum Interface Speed	128 GT/s (PCIe Gen5 x4)
Form Factor	2.5-inch, 15mm thickness
NAND Flash Memory Type	BiCS FLASH TLC
Dimensions (WxDxH)	Height 15 mm +0 / -0.5 mm x Width 69.85 0.25 mm x Length 100.45 mm Max.
Weight	130 g Max.
Performance
Internal Data Rate	12,000 MB/s (Read) / 5,500 MB/s (Write)
4KB Random Read	1900K IOPS
4KB Random Write	400K IOPS
Drive Writes Per Day (DWPD)	3
Power
Supply Voltage	12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (Active)	19 W typ.
Power Consumption (Ready)	5 W typ.
Miscellaneous
MTBF	2,500,000 hours
Package Type	OEM
Environmental
Operating Environment	Humidity (Operating): 5 % to 95 % R.H.
	Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
	Temperature (Non-operating): -40 °C to 85 °C
	Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
	Temperature (Operating): 0 °C to 73 °C

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
