| Main Specifications |

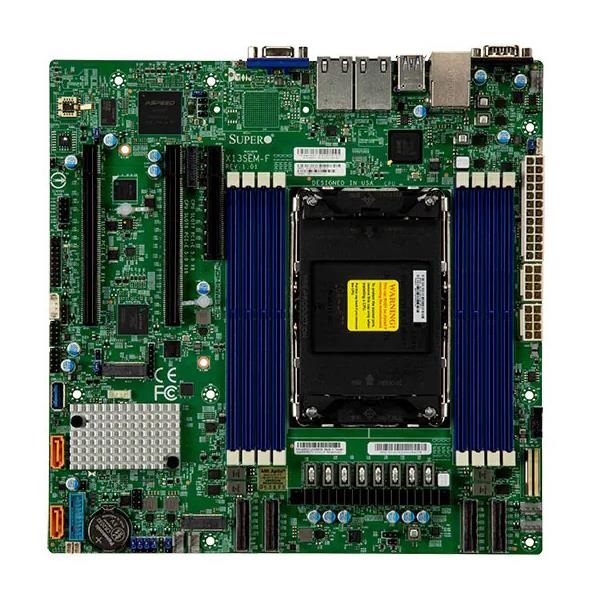

| Device Type | Motherboard |
| Form Factor | microATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
| BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors |
| Compatible Socket | Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP |
| Number of Cores | Up to 64 Cores |
| System Memory |
| Memory Capacity | Slot Count: 8 DIMM Slots/8 Channels |
| Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 2TB 4800MT/s ECC DDR5 3DS RDIMM |
| DIMM Sizes | RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB |
| 3DS RDIMM:128GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel C741 |
| SATA/SAS | Intel C741 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10 |
| IPMI | ASPEED AST2600 BMC |
| Graphics | 1 Aspeed AST2600 BMC port(s) |
| Network Controllers | Dual LAN with 1GbE with Intel I350 |
| Input / Output |
| SATA | 10 SATA3 (6Gbps) port(s) |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port |
| USB(s) | 6 USB 2.0 port(s) (4 via header, 2 rear), 5 USB 3.2 Gen1 port(s) (2 via header, 2 rear, 1 type A) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port / Headers | 1 COM Port(s) (1 rear) |
| DOM | 2 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16, 1 PCIe 5.0 x8, 4 PCIe 5.0 x8 MCIO connector |
| M.2 | Key: M-key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 4.0 x2 |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.4, SMBIOS 3.5, UEFI 2.8 or above |
| Management |
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V |
| LED | UID/Remote UID, CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control, 5 fans with tachometer status monitoring, Overheat LED indication |
| Other Features | WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management |
| Parts List |
| CPU carrier | 1x SKT-1424L-001B-FXC, 1x SKT-1333L-0000-FXC |
| I/O Shield | 1x MCP-260-00042-0N |
| I/O Cables | 2x CBL-0044L |
