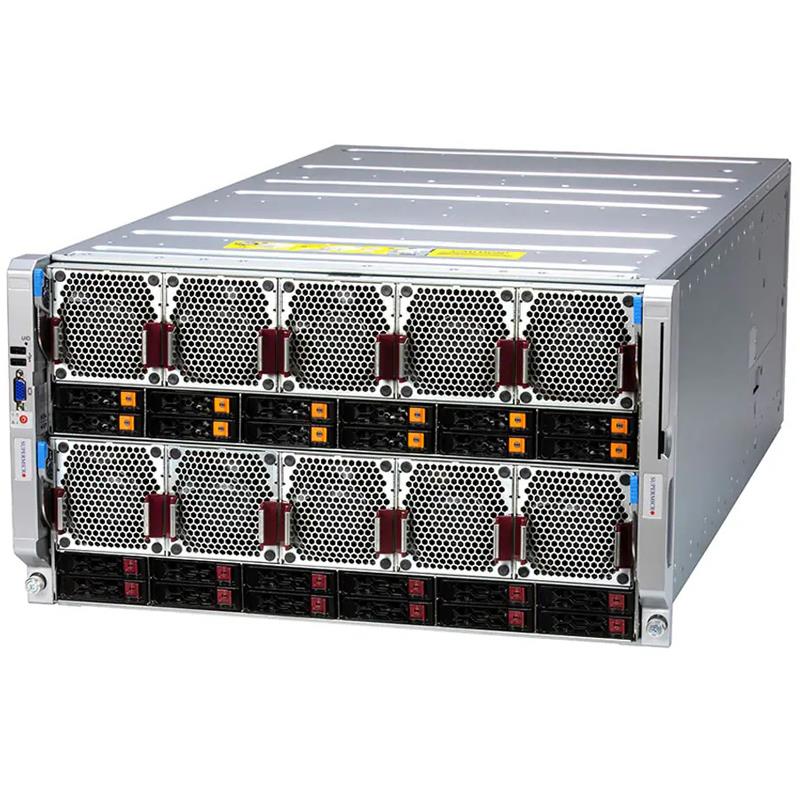

Supermicro SYS-681E-TR MP 6U Rackmount 8 Socket E (LGA-4677) Intel Xeon Scalable 4th Generation Processors
• In-Memory Database
• Virtualization, ERP, CRM
• Research Lab/National Lab
• Scale -up HPC
Barebone 6U Rackmount SuperServer, Support 8 Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 4th Generation (Up to 60C/120T Up to 112.5MB Cache Per CPU), Supports up to 250W - 350W TDP CPUs (Air Cooled). Max GPU Count: Up to 12 double-width GPUs. Up to 32TB in 128 DIMM slots, DDR5 RDIMM/RDIMM-3DS, Chipset: Intel C741, On-Board: 4x USB Ports, 1 VGA Port (Front), 1 DisplayPort (Rear), Drive Bays: 8 Front Hot-swap 2.5in SATA Drive Bays, Two M.2 PCIe 3.0 x4 NVMe/SATA Slots (M-key 2280/22110). Network Connectivity: 1 RJ45 1GbE Dedicated BMC LAN Port, 1 RJ45 1GbE LAN Port, Expansion Slots: 12 PCIe 5.0 x16 FHFL Slots, 2 PCIe 5.0 x16 LP Slots. 4x 2600W Power Supply - (CSE-618TS-R5K26P + Super X13OEI-CPU) - SYS-681E-TR
1. Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
2. 128 DIMM Slots; Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
3. Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards
4. 24x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays ; 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card
5. 10 heavy duty fans w/ optimal fan speed control
Extra Specifications for Supermicro SYS-681E-TR MP 6U Rackmount 8 Socket E (LGA-4677) Intel Xeon Scalable 4th Generation Processors
| Product SKUs | ||
| Product SKUs | SYS-681E-TR | |
| Motherboard | ||
| Motherboard | Super X13OEI-CPU | |
| Processor | ||
| CPU | 4th Gen Intel® Xeon® Scalable processors | |
| 8 Socket E (LGA-4677) | ||
| 4 UPI up to 16GT/s | ||
| Note | Supports 205W - 350W TDP CPUs (Air Cooled) | |
| CPUs with high TDP (Air Cooled) only supported under specific conditions. Contact Technical Support for details | ||
| For SYS-681E-TR, only SOCKET SCALABLE(-H) is supported: 8490H, 8468H, 8460H, 8454H, 8450H and 8444H | ||
| System Memory | ||
| Memory | Memory Capacity: 128 DIMM slots | |
| Up to 32TB: 128x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM/RDIMM-3DS | ||
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Connectivity | 1x 1GbE BaseT | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 1x 1GbE RJ45 | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 1.1 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| 1 DisplayPort (s) | ||
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 6U Rackmount | |
| Model | CSE-618TS-R5K26P | |
| Dimensions and Weight | ||
| Height | 10.4" (265mm) | |
| Width | 17.68" (449mm) | |
| Depth | 33.1" (841mm) | |
| Package | 36.3" (H) x 28.34" (W) x 42.5" (D) | |
| Weight | Net Weight: 176.37 lbs (80 kg) | |
| Gross Weight: 242.5 lbs (110 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | UID | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 12 PCIe 5.0 x16 FHFL slot(s) | |
| 12 PCIe 5.0 x16 FHFL optional slot(s) | ||
| 2 PCIe 5.0 x16 LP internal optional slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24x 2.5" NVMe hybrid) (Default 8x SATA3 drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 10 Heavy duty counter-rotating 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 2600W: 200-240Vac / 15A Max | |
| DC Input | 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz | |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Additional Power Supply(s) | PWS-2K63A-1R | $ 620.50 | 1 ~ 2 | 1U 2600W Redundant single output power supply with wide range | ||
| CPU Carrier (Require 8pcs of one PN only) | SKT-1333L-0001-LTS | $ 18.50 | 8 | Intel SPR 84xxH Socket E LGA4677, E1A XCC carrier, DG 1.0, NO SHIM, (Brand LOTES) | ||
| CPU Carrier (Require 8pcs of one PN only) | SKT-1333L-0000-FXC | $ 19.00 | 8 | Intel SPR 84xxH Socket E LGA4677, E1A XCC carrier, DG 1.0, (Brand FOXCONN) | ||
| GPU Power Cable(s) | CBL-PWEX-1171-2654 • | 1/GPU | 8-pin PCIe power cable | |||
| GPU Power Cable(s) | CBL-PWEX-1040 • | 1/GPU | 8-pin CPU to 8-pin PCIe power connector (Requires 1x CBL-PWEX-1148-20) | |||
| GPU Power Cable(s) | CBL-PWEX-1148-20 • | 1/GPU | 8-pin CPU power cable (Example A6000, A100, A40 and etc.) | |||
| GPU Power Cable(s) | CBL-PWEX-0962Y-20 | $ 42.50 | 1/GPU | 16-pin power cable (Example H100) | ||
| NVMe Intel VROC Controller | AOC-VROCSTNMOD • | 1 | Intel VROC HW key (RSTe) standard upgrade module | |||
| NVMe Intel VROC Controller | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| NVMe Support Kit | MCP-220-00178-0B | $ 24.50 | 1 ~ 24 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive) | ||
| NVMe Support Kit | CBL-MCIO-1232M5 • | 1 ~ 12 | MCIO x8 (STR to STR),32cm,85OHM,RoHS (1 cable supports 2 NVMe U.2 Drives) | |||
| PCIe Module Kit for Slots 13-24 | AOM-FRU-X13OEI-PCIE | 1 | Right PCIe Module, included PCB and cables, 12x PCIe Gen5 x16 (Slots 13-24) | |||
| RAID Controller 1-12pcs SATA3/SAS | AOC-S3916L-H16IR-32DD | $ 786.50 | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP | ||
| RAID Controller 1-12pcs SATA3/SAS | CBL-SAST-1261-100 • | 2 | Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O | |||
| RAID Controller 1-12pcs SATA3/SAS | CBL-MCIO-1232M5 • | 2 | MCIO x8 (STR to STR),32cm,85OHM,RoHS | |||
| RAID Controller 13-24pcs SATA3/SAS | AOC-S3916L-H16IR-32DD | $ 786.50 | 2 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP | ||
| RAID Controller 13-24pcs SATA3/SAS | CBL-SAST-1261-100 • | 4 | Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O | |||
| RAID Controller 13-24pcs SATA3/SAS | CBL-MCIO-1232M5 • | 4 | MCIO x8 (STR to STR),32cm,85OHM,RoHS | |||
| RAID Controller CacheVault(s) | BTR-CVPM05 • | 1 ~ 2 | CacheVault for Broadcom RAID Controller (Ex. S3908/S3916) | |||
| Rear Fan Module(s) | MCP-320-00059-0N-KIT | 1 ~ 6 | Rear fan kit, cooling 4x PCIe slots each (11K RPM fan) | |||
| TPM Security Module | AOM-TPM-9672V | $ 72.00 | 1 | TPM 2.0 with 10 pins SPI,RoHS (Vertical) | ||
| TPM Security Module | AOM-TPM-9672V-FIPS | $ 78.00 | 1 | TPM 2.0 with 10 pins SPI support FIPS 140,RoHS (Vertical) |
