| Main Specifications |

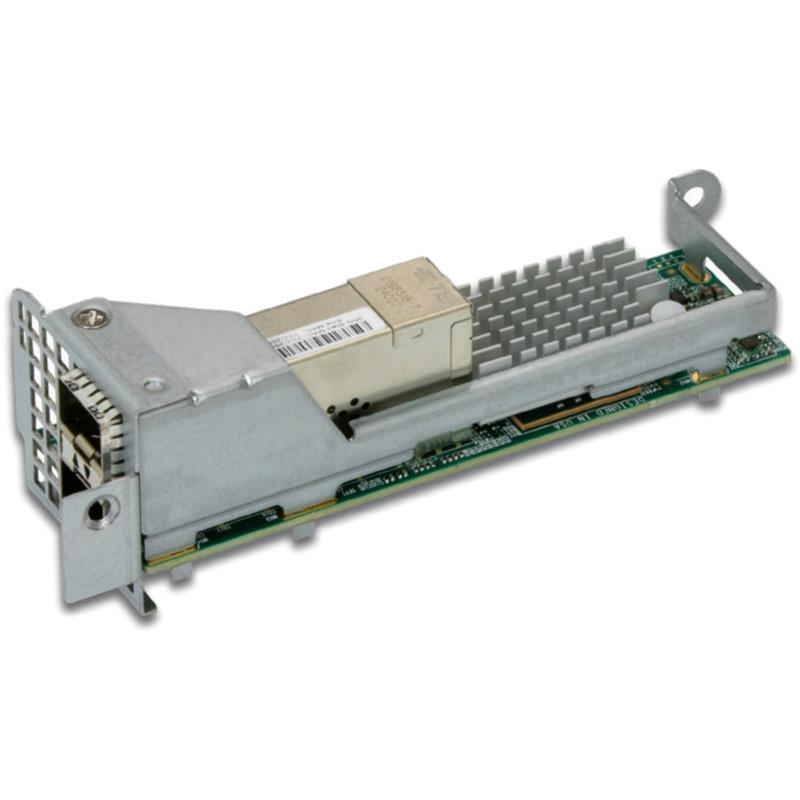

| Device Type | 25Gbe Ethernet Adapter Card |
| Form Factor | MicroLP |
| Interface | PCI-E 4.0 x8, backward compatible to PCI-E 3.0 x8 |
| Dimensions (WxDxH) | Card PCB dimensions: 113mm (4.46in) x 39mm (1.54in) |
| Connectivity |
| Connectors | Dual SFP28 ports |
| Networking |
| Host Interface | PCI-E v4.0, Backward compatible with PCIe v3.0, Message Signal Interrupt (MSI-X) |
| Networking Features | Jumbo Packet (9K Max), Teaming, Virtual LANs 802.1q VLAN tagging |
| Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload, Large Send Offload, Receive Segment Coalescing, TCP segmentation Offload (TSO), UDP Segment Offload (USO), Large Segment Offload (LSO), Receive Side Scaling (RSS) |
| Virtualization Features | VXLAN, NVGRE, Geneve, SR-IOV, 768 Virtual Station Interface (VSI), 8 Physical Functions (PF), Microsoft VM Queue, VMWare NetQueue, DPDK Support, QoS: Priority-based Flow Control (802.1Qbb), Enhanced Transmission Selection (802.1Qaz) |
| Manageability | Network Controller Sideband Interface (NC-SI), Asset Management with Thermal Sensors |
| RDMA over Converged Ethernet (iWARP and RoCE) | iWARP, RoCEv2, Data Center Bridging |
| Remote Boot | UEFI PXE Boot |
| Data Center Bridging | Enhanced transmission IEEE 802.1Qaz, Priority based Flow Control IEEE 802.1Qbbb, Edge Virtual Bridging - IEEE 802.Qbg |
| Power |
| Power Savings | ACPI Compliant power management, Pass through Energy Efficient Ethernet (IEEE802.3az-2010) |
| Power Consumption | 10.5W |
| Specifications |
| Cables Support | SFP28 Direct Attach Copper cables, Fiber-optic cables (with required optional SFP28 transceivers) |
| Environmental Parameters |
| Operating Temperature | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Supported Platforms |
| Supported Platforms | MicroCloud 8/10 node systems |
