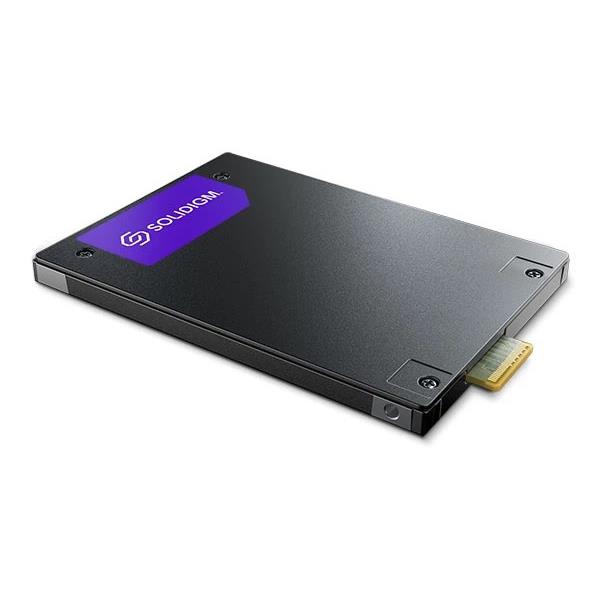

Solidigm SB5PHA7E064T 6.4TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E3.S 7.5mm TLC 3DWPD D7-PS1030 Series

E3.S 7.5mm, industry-standard compatible
Zero data errors for reliable long-term use
PCIe 5.0 for top performance in enterprise, cloud
Secure data storage with OPAL Encrypted technology

This NVMe Solid-State Drive (SSD) Features 6.4TB Storage Capacity. Built With PCIe Generation 5 x4 Interface, Designed in E3.S Form Factor Thickness of 7.5mm. Triple-Level Cell (TLC) Technology, With a Durability Rating Of 3DWPD. Optimized For Accelerate Write-centric And Mixed Workloads Applications. Solidigm D7-PS1030 - OEM

Our extensive SSD portfolio expands into PCIe 5.0 with the Solidigm D7-PS1030 drives, powerful additions to the high performance D7 series. This drive provide standard endurance and mid-endurance, respectively, across a range of capacities in the industry’s most popular form factors. Combining classleading performance and performance optimizations for real-world IO conditions,2 the Solidigm D7-PS1030 efficiently accelerate a wide range of enterprise, cloud, and AI/ML workloads, regardless of PCIe interface. Designed and tested with zero tolerance for data errors3 and consistent performance across the life of the drive,4 they can be deployed with the utmost confidence.

Extra Specifications for Solidigm SB5PHA7E064T 6.4TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 E3.S 7.5mm TLC 3DWPD D7-PS1030 Series

Main Specifications
Device Type	NVMe Solid state drive - internal
Capacity	6.4TB
Form Factor	E3.S 7.5mm
Interface	PCIe 5.0 x4, NVMe
NAND Flash Memory Type	176L TLC 3D NAND
Weight	110g +/- 10g
Performance
4KB Random Read	3000000 IOPS (4K Blocks)
4KB Random Write	800000 IOPS (4K Blocks)
Endurance DWPD	3DWPD
Average Latency	Latency - Random Read (typ.): 60μs
	Latency - Sequential Read (typ.): 60μs
	Latency - Sequential Write (typ.): 7μs
	Latency - Random Write (typ.): 7μs
Power
Power Consumption (Active)	23W
Power Consumption (Idle)	5W
Miscellaneous
MTBF	2.5M hours
Reliability
Non-Recoverable Errors	Unrecovered Bit Error Rate (UBER): <1 sector in 1018* bits read
Environmental
Operating Environment	Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
	Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
	Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
	Operating Temperature Range: 0°C to 77°C

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
