  1. Products
  2. Solidigm SB5PH27E128TOP 12.8TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 U.2 15mm TLC 3DWPD OPAL Encrypted D7-PS1030 Series

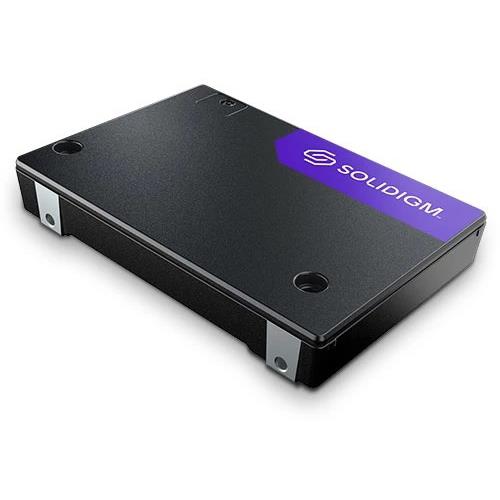

Solidigm SB5PH27E128TOP 12.8TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 U.2 15mm TLC 3DWPD OPAL Encrypted D7-PS1030 Series

Solidigm SB5PH27E128TOP 12.8TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 U.2 15mm TLC 3DWPD OPAL Encrypted D7-PS1030 Series

  • U.2 15mm, industry-standard compatible

  • Zero data errors for reliable long-term use

  • PCIe 5.0 for top performance in enterprise, cloud

  • Secure data storage with OPAL Encrypted technology

This NVMe Solid-State Drive (SSD) Features 12.8TB Storage Capacity. Built With PCIe Generation 5 x4 Interface, Designed in U.2 Form Factor Thickness of 15mm. Triple-Level Cell (TLC) Technology, With a Durability Rating Of 3DWPD. Optimized For Accelerate Write-centric And Mixed Workloads Applications. Features: OPAL Encrypted Solidigm D7-PS1030 - OEM

Contact us for volume discounts

    This combination does not exist.

    PreOrder
    1 lb
    Email For Price

    Our extensive SSD portfolio expands into PCIe 5.0 with the Solidigm D7-PS1030 drives, powerful additions to the high performance D7 series. This drive provide standard endurance and mid-endurance, respectively, across a range of capacities in the industry’s most popular form factors. Combining classleading performance and performance optimizations for real-world IO conditions,2 the Solidigm D7-PS1030 efficiently accelerate a wide range of enterprise, cloud, and AI/ML workloads, regardless of PCIe interface. Designed and tested with zero tolerance for data errors3 and consistent performance across the life of the drive,4 they can be deployed with the utmost confidence.

    Extra Specifications for Solidigm SB5PH27E128TOP 12.8TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 U.2 15mm TLC 3DWPD OPAL Encrypted D7-PS1030 Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity12.8TB
    Form Factor U.2 15mm
    InterfacePCIe 5.0 x4, NVMe
    NAND Flash Memory TypeMicron 176-layer 3D TLC NAND
    Weight10G
    Performance
    4KB Random Read2750000 IOPS (4K Blocks)
    4KB Random Write800000 IOPS (4K Blocks)
    Endurance DWPD3DWPD
    Average LatencyLatency - Random Read (typ.): 60μs
    Latency - Sequential Read (typ.): 60μs
    Latency - Sequential Write (typ.): 7μs
    Latency - Random Write (typ.): 7μs
    Power
    Power Consumption (Active)23W
    Power Consumption (Idle)5W
    Miscellaneous
    MTBF2.5M hours
    Environmental
    Operating EnvironmentVibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
    Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
    Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
    Operating Temperature Range: 0°C to 77°C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:SOLIDIGM
    Type of Support:FULL
    Phone No.:833-313-7337
    URL:Click here for Manufacturer Website
