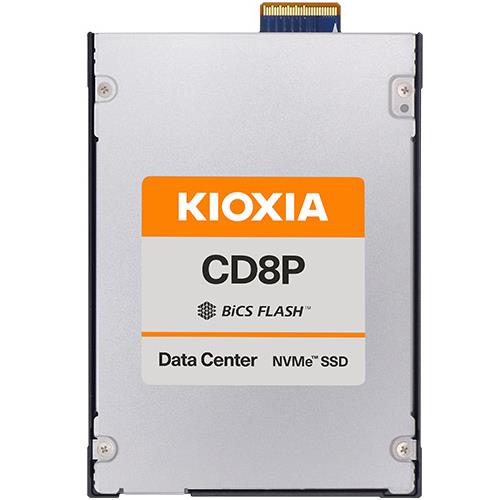

  2. Kioxia KCD8DPJE1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 128 GT/s E3.S 7.5mm TLC SED 1DWPD CD8P-R Series
Kioxia KCD8DPJE1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 128 GT/s E3.S 7.5mm TLC SED 1DWPD CD8P-R Series

Kioxia KCD8DPJE1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 128 GT/s E3.S 7.5mm TLC SED 1DWPD CD8P-R Series

  • E3.S form factor (7.5 mm thickness) designed for high-density, 24x7 workloads

  • Features: Power Loss Protection (PLP), end-to-end data correction, and SED for data integrity

  • Powered by KIOXIA’s controller, firmware, and BiCS FLASH generation 5 TLC for reliability and performance

  • PCIe 5.0 and NVMe 2.0 compliant for fast data transfer and seamless integration into data center environments

The NVMe Solid-State Drive Features 1.92TB Storage Capacity. Built With PCIe Generation 5 x4 Interface With Maximum Interface Speed Of 128 GT/s, Designed in E3.S Form Factor Thickness of 7.5mm. BiCS FLASH Generation 5 TLC Flash Memory, With a Durability Rating Of 1DWPD. Optimized For Hyperscale, IoT and Big Data Analytics, Online Transaction Processing (OLTP) (Transactional And Relational Databases), Virtualized Environments, Streaming Media And Content Delivery Networks Applications. Features: Self-Encrypting Drives (SED) Kioxia CD8P-R Series - OEM

Contact us for volume discounts

    This combination does not exist.

    PreOrder
    1 lb
    Email For Price

    Data Center NVMe Read Intensive SSD


    KIOXIA CD8P-R Series is a read intensive data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series 2.5-inch).


    Featuring KIOXIA BiCS FLASH generation 5 TLC flash memory, CD8P-R E3.S form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 1.92TB, making them well-suited for hyperscale data center applications.


    Key Features


    • PCIe 5.0, NVMe 2.0 specification compliant

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)

    • Form factor: E3.S, 7.5 mm thickness

    • Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH generation 5 TLC flash memory

    • Single-port design, optimized for data center class workloads

    • Consistent performance and reliability for demanding 24x7 environments

    • Designed for high-density storage deployments

    • Power loss protection (PLP) and end-to-end data correction


    Key Applications


    • Hyperscale

    • IoT and big data analytics

    • Online transaction processing (OLTP) (transactional and relational databases)

    • Virtualized environments

    • Streaming media and content delivery networks

    Extra Specifications for Kioxia KCD8DPJE1T92 1.92TB NVMe Solid-State Drive PCIe x4 Lanes Generation 5.0 128 GT/s E3.S 7.5mm TLC SED 1DWPD CD8P-R Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity1.92TB
    Form FactorE3.S 7.5mm
    InterfacePCIe 5.0 NVMe 2.0
    Maximum Interface Speed128 GT/s (PCIe Gen5 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Thickness 7.5 mm +0.2 / -0.5 mm x Width 76 mm ± 0.25 mm x Length 112.75 mm ± 0.4 mm
    Weight110 g Max
    Performance
    Internal Data RateSustained 128 KiB Sequential Read: 12,000 MB/s / Sustained 128 KiB Sequential Write: 3,500 MB/s
    4KB Random Read1,600K IOPS
    4KB Random Write150K IOPS
    Drive Writes Per Day (DWPD)1
    Power
    Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
    Power Consumption (Active)18 W typ.
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2,500,000 hours
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Temperature (Non-operating): -40 °C to 85 °C
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( 0.5 ms )
    Temperature (Operating): 0 °C to 76 °C
