| GPU |
| Max GPU Count | Up to 1 single-width GPU |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: L4, A2 |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 8 DIMM slots/8 Channels |
| Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 2 RJ45 1GbE with Intel® I210 |
| SATA | SATA (6Gbps) |
| Input / Output |
| LAN | 2 RJ45 1 GbE LAN ports |
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) |
| 2 USB 3.2 Gen1 ports(Header) |
| Video | 1 VGA port |
| Serial | 1 COM port(Rear) |
| TPM | 1 TPM header |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| System Lockdown |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| Front Panel |
| Buttons | Power On/Off |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| Product SKUs |

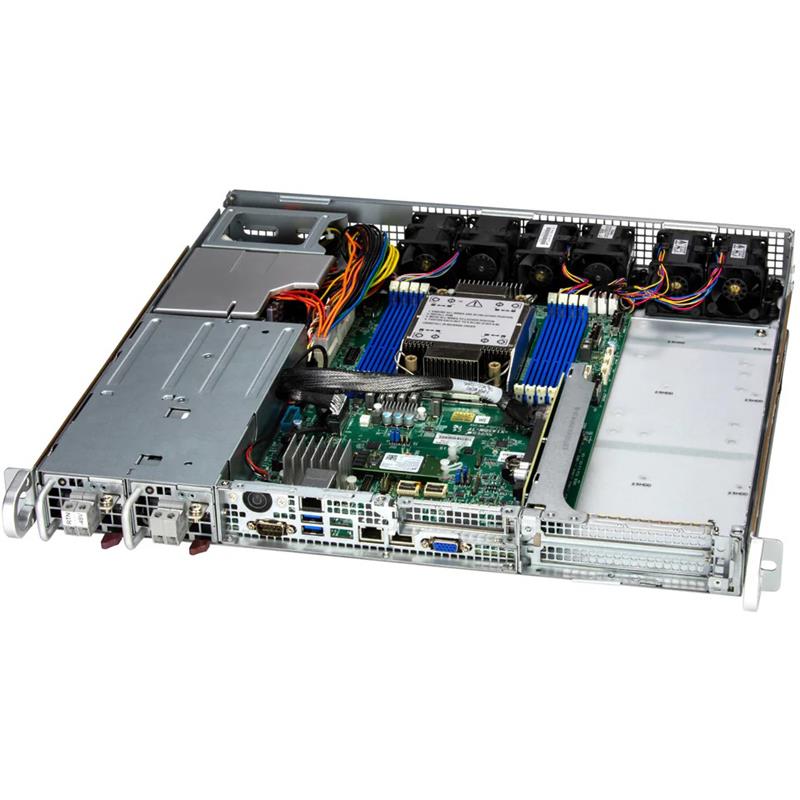

| Product SKUs | SYS-112B-FDWR |
| Motherboard |
| Motherboard | Super X14SBW-F |
| Processor |
| CPU | Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Single Socket E2 (LGA-4710) |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache |
| E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 250W TDP CPUs (Air Cooled) |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-515B-R000WNP |
| Dimensions and Weight |
| Height | 1.7" (44.5 mm) |
| Width | 17.2" (436.88 mm) |
| Depth | 16.9" (429.3 mm) |
| Package | 8" (H) x 27" (W) x 24" (D) |
| Weight | Gross Weight: 15 lbs (6.8 kg) |
| Net Weight: 10 lbs (4.54 kg) |
| Available Color | Silver |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 2 bays 2 internal fixed 2.5" NVMe/SATA drive bays |
| 2 internal fixed 2.5" NVMe/SATA drive bays |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling |
| Fans | 6x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
