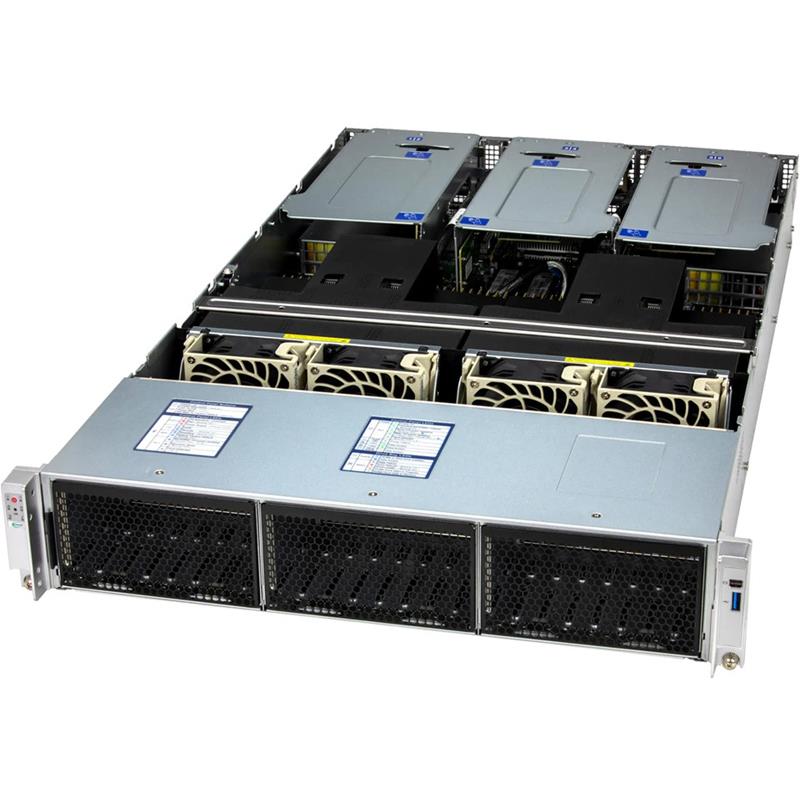

Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores

Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores

• Data Center Optimized, Value IaaS
• Cloud Computing
• HPC, Data Center
• Private & Hybrid Cloud
• Cloud Solution Provider (CSP)
• Networking Security Appliance

Barebone 2U Rackmount SuperServer, Support Dual Socket E2 (LGA-4710), Supporting Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores. Supports up to 350W TDP CPUs (Air Cooled). Core Count: P-cores: Up to 86C/172T, Up to 336MB Cache per CPU, E-cores: Up to 144C/144T, Up to 108MB Cache per CPU. Max GPU Count: Up To 3 Double-width or 6 Single-width GPUs. Up to 4TB in 32 DIMM slots, DDR5 RDIMM, Chipset: System on Chip, On-Board: NVMe RAID 0/1/5/10 support(VROC HW key required). Drive Bays: 24 Front Hot-swap 2.5in NVMe/SAS/SATA Drive Bays (NVMe/SAS/SATA Support May Require Additional Storage Controller and/or Cables), 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110 (default) /2280, VROC Required for RAID). Network Connectivity: Via AIOM 2x 2000W Power Supply - (CSE-DC201TS-R000NP + Super X14DBHM) - SYS-222C-TN

$ 2,172.00$ 2,172.002172.0USD

$ 2,172.00

Option not available

PreOrder
126 lb

    This combination does not exist.

    Add to Cart

    1. Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
    2. Optimized power & balanced performance for cloud applications
    3. Server management flexibility with OpenBMC

    Extra Specifications for Supermicro SYS-222C-TN CloudDC 2U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores

    Product SKUs
    Product SKUsSYS-222C-TN
    Motherboard
    MotherboardSuper X14DBHM
    Processor
    CPUDual Socket E2 (LGA-4710)
    Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
    Core CountE-cores: Up to 144C/144T; Up to 108MB Cache per CPU
    P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
    NoteSupports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 3 double-width or 6 single-width GPUs
    System Memory
    MemoryView Memory Options
    Slot Count: 32 DIMM slots
    Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
    Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
    Memory Voltage1.1V
    On-Board Devices
    NVMeView NVMe Options
    NVMe; RAID 0/1/5/10 support(VROC HW key required)
    ChipsetSystem on Chip
    Network ConnectivityVia AIOM
    View AOC Options
    View AIOM Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port
    USB1 USB 2.0 Type-A port(Rear)
    1 USB 3.2 Gen1 Type-A port(Rear)
    Video1 VGA port(Rear)
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 64MB SPI Flash ROM
    Management
    SoftwareSupermicro Thin-Agent Service (TAS)
    Supermicro Server Manager (SSM)
    SuperCloud Composer®
    Super Diagnostics Offline (SDO)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    Chassis
    Form Factor2U Rackmount
    ModelCSE-DC201TS-R000NP
    Dimensions and Weight
    Height3.47" (88 mm)
    Width17.25" (438 mm)
    Depth30.7" (780 mm)
    Package9.4" (H) x 23.5" (W) x 43.2" (D)
    WeightGross Weight: 83.78 lbs (38 kg)
    Net Weight: 61.73 lbs (28 kg)
    Available ColorSilver
    Front Panel
    LEDLAN1 activity
    Power status
    HDD activity
    System information (overheat/UID)
    Power Fail
    LAN2 acticity
    ButtonsUID button
    Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    Drive Bays ConfigurationView Drive Options
    View NVMe Options
    24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
    Default: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
    (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
    M.2View M.2 Options
    2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
    System Cooling
    Fans4x 8cm heavy duty fans with optimal fan speed control
    Air Shroud1 Air Shroud
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)
    Non-operating Temperature: -30°C to 60°C (-30°F to 140°F)
    Operating Relative Humidity: 8% to 80% (Non-Condensing)
    Non-operating Relative Humidity: 8% to 90% (Non-Condensing)
    NamePart NumberPriceAdd to CartQty.Description
    3808 HBA CardAOC-S3808L-L8IT$ 401.501Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
    3816 HBA CardAOC-S3816L-L16IT$ 502.501Standard LP 16 internal ports (12Gb/s) Gen-4 122HDD HBA
    3908 RAID CardAOC-S3908L-H8IR-16DD$ 823.501Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
    3908/3916 CacheVaultBTR-CVPM05$ 266.501CacheVault for Broadcom 3908/3916 (requires a mount)
    3916 RAID CardAOC-S3916L-H16IR-32DD$ 794.501Standard LP 16 internal ports (12Gb/s) Gen-4, 32HDD RAID 0, 1, 5, 6, 10, 50, 60
    AIOM Network Card(s)AOC-A100G-b2CG0OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
    AIOM Network Card(s)AOC-A25G-b2SG0OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Broadcom® BCM57414
    AIOM Network Card(s)AOC-A25G-i4SG0OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
    AIOM Network Card(s)AOC-AG-i2G0OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
    AIOM Network Card(s)AOC-AG-i4G0OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
    AIOM Network Card(s)AOC-ATG-b2TG0OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
    AIOM Network Card(s)AOC-ATG-i4SG0OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
    AIOM Network Card(s)AOC-ATGC-i2TG0OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
    CacheVault MountMCP-240-00203-0N$ 26.501CacheVault mounting bracket for PCIe slot
    Fan UpgradeFAN-0239L4$ 0.00480x80x38 mm 16.8K RPM High Performance Cooling Fans
    Front BezelMCP-210-21903-0B$ 55.5012U Plastic Black Front Bezel with Regular Filter
    Front BezelMCP-210-82601-0B$ 31.5012U Plastic Black Front Bezel
    Front HandleMCP-290-20113-0V12U DC201 right chassis handle for USB and mini display ports
    LicenseSFT-DCMS-SINGLE •1Supermicro System Managment Software License
    LicenseSFT-SDDC-SINGLE •1Supermicro Data Center Monitor License
    M.2 TrayAOC-SLG4-2H8M2$ 226.000Standard LP PCIe x8 supporting 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0, 1
    NC-SI CableCBL-PWEX-1099-341FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
    Power SupplyPWS-1K61A-1R$ 484.5021600W AC-DC Titanium Level Power Supply M-CRPS
    Power SupplyPWS-1K62D-1R21600W DC-DC Power Supply M-CRPS
    Power SupplyPWS-2K09A-1R$ 479.5022000W AC-DC Titanium Level Power Supply CRPS
    Power SupplyPWS-2K21A-1R22200W AC-DC Titanium Level Power Supply CRPS
    Power SupplyPWS-3K21A-1R2$ 693.5023200W AC-DC Titanium Level Power Supply M-CRPS
    Rails SetMCP-290-10129-0N130.5" ball-bearing rail set, without auto latch, cable mgmt arm not supported
    Rails SetMCP-290-20106-0N1(Default) 35.25" ball-bearing rail set, without auto latch, cable mgmt arm not supported, comes with server
    Rails SetMCP-290-20122-0N141" Long ball-bearing rail set, without auto latch, cable mgmt arm supported
    TPMAOM-TPM-9672SCM1TPM 2.0 with Infineon SLB 9672 For SCM module
    VROC HW KeyAOC-VROCPREMOD$ 347.501Intel VROC Premium RAID 0, 1, 5, 10
    VROC HW KeyAOC-VROCSTNMOD$ 178.001Intel VROC Standard RAID 0, 1, 10

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
