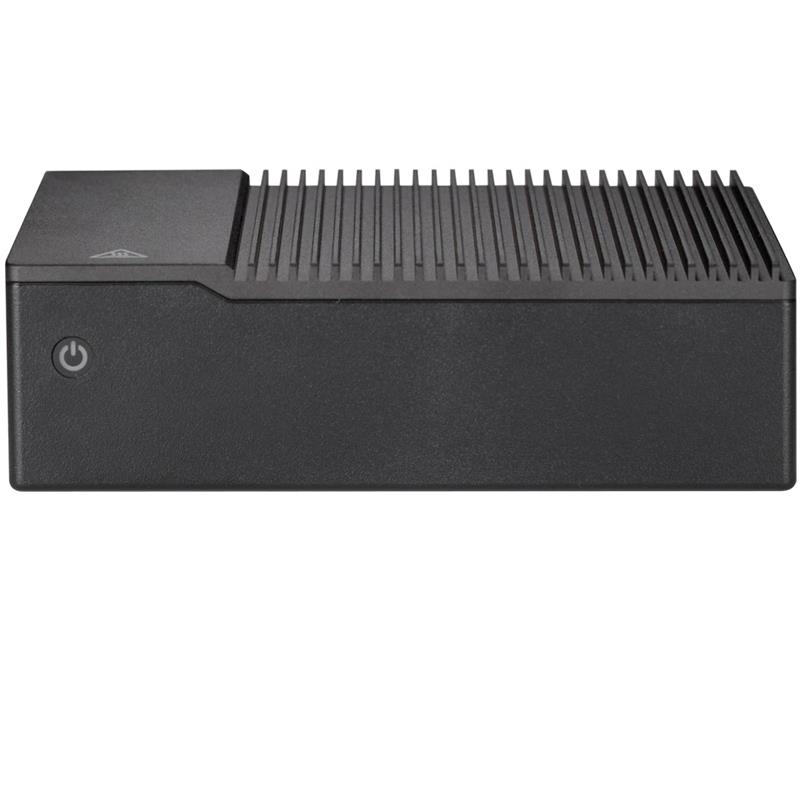

Supermicro SYS-E50-14AM-L IoT Fanless Embedded Intel Atom N97 Processor Alder Lake-N N97
Supermicro SYS-E50-14AM-L IoT Fanless Embedded Embedded Intel Atom N97 Processor With 4-core And 12Thread
Supermicro SYS-E50-14AM-L IoT Fanless Embedded Embedded Intel Atom N97 Processor With 4-core And 12Thread

Supermicro SYS-E50-14AM-L IoT Fanless Embedded Intel Atom N97 Processor Alder Lake-N N97

• Industrial / Automation
• Healthcare
• Digital Signage Kiosk, Interactive info system
• Retail

Barebone Palm-size Fanless Embedded System, Embedded Intel Atom N97 Processor, 3.6 GHz (4-Core/12Thread, Up to 6MB Cache / TDP 12W). Up to 16GB in 1 DIMM Slots, DDR5 SO-DIMM, Chipset: System on Chip, On-Board: 2x USB Ports, 1 HDMI 1.4 Port (Rear), Drive Bays / Storage: 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042), 1 M.2 PCIe 3.0 x1 SATA Slot (B-key 2242/3042), 1 M.2 PCIe 3.0 x1 Slot (E-key 2230), Network Connectivity: 2 RJ45 2.5 GbE LAN Ports, 40W Power Supply - (CSE-E50-L + Super A4SAP-H) - SYS-E50-14AM-L

$ 408.00$ 408.00408.0USD

$ 408.00

Option not available

PreOrder
4 lb

    This combination does not exist.

    Add to Cart

    1. Intel® Atom® Alder Lake-N N97 (TDP 7W / 4C)
    2. DDR5-4800MT/s 1 DIMM max 16GB
    3. 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042) 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
    4. 2 RJ45 2.5GbE (Realtek)
    5. Front IP 51 protection (Water/Dust proof)
    6. Fanless Embedded chassis with 4.64" (118mm) depth
    7. 2 USB 3.2 Gen2 Type-A port(s) (Rear), 1 HDMI 1.4 port(s) (Rear)

    Extra Specifications for Supermicro SYS-E50-14AM-L IoT Fanless Embedded Intel Atom N97 Processor Alder Lake-N N97

    System Memory
    Memory Voltage1.1V
    MemoryView Memory Options
    Slot Count: 1 DIMM slots/1 Channels
    Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
    On-Board Devices
    ChipsetSystem on Chip
    Network ConnectivityView AOC Options
    2 RJ45 2.5GbE with Realtek
    System BIOS
    BIOS TypeAMI 256MB SPI Flash EEPROM
    Management
    SoftwareSupermicro SuperDoctor® 5 (SD5)
    Power configurationsACPI Power Management
    Control of power-on for recovery from AC power loss
    +12V DC Power Input
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    FeaturesSecure Boot
    Front Panel
    ButtonsPower On/Off
    LEDPower status
    Product SKUs
    Product SKUsSYS-E50-14AM-L
    Motherboard
    MotherboardSuper A4SAP-H
    Processor
    CPUIntel® Processor N97
    Core CountUp to 4C/12T; Up to 6MB Cache
    NoteSupports up to 7W TDP CPUs (Air Cooled)
    Input / Output
    LAN2 RJ45 2.5 GbE LAN ports
    USB2 USB 3.2 Gen2 Type-A ports(Rear)
    Video1 HDMI 1.4 port(Rear)
    Chassis
    Form FactorFanless Embedded
    ModelCSE-E50-L
    Dimensions and Weight
    Height1.72" (44 mm)
    Width5.82" (148 mm)
    Depth4.64" (118 mm)
    Package9.5" (H) x 5.5" (W) x 8" (D)
    WeightGross Weight: 3.52 lbs (1.6 kg)
    Net Weight: 2.2 lbs (1 kg)
    Available ColorBlack
    Expansion Slots
    M.2
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    M.2View M.2 Options
    1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
    System Cooling
    FansN/A
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)
    Operating Temperature: 0°C to 45°C (32°F to 113°F) with 0.7 m/s airflow

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
