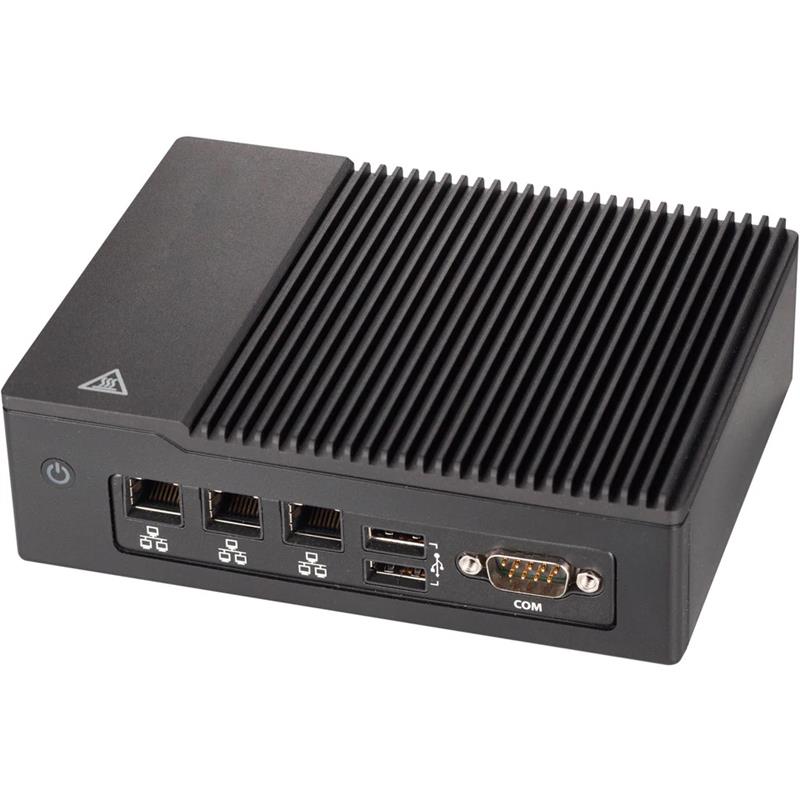

Supermicro SYS-E50-14AM-N5 IoT Fanless Embedded Embedded Intel Atom N97 Processor With 4-core And 12Thread

Supermicro SYS-E50-14AM-N5 IoT Fanless Embedded Embedded Intel Atom N97 Processor With 4-core And 12Thread

• Industrial / Automation
• Healthcare
• Digital Signage Kiosk, Interactive info system
• Retail

Barebone Palm-size Fanless Embedded System, Embedded Intel Atom N97 Processor, 3.6 GHz (4-Core/12Thread, Up to 6MB Cache / TDP 12W). Up to 16GB in 1 DIMM Slots, DDR5 SO-DIMM, Chipset: System on Chip, On-Board: 4x USB Ports, 2 HDMI 1.4 Ports (Rear), 1 COM Port (Front), 1 TPM Onboard/port 80, Drive Bays / Storage: 1 Internal Fixed 2.5in SATA Drive Bay, 1 M.2 PCIe 3.0 x1 Slot (E-key 2230, USB 2.0), 1 M.2 PCIe 3.0 x1 SATA Slot (B-key 2242/3042, USB 3.0). Network Connectivity: 3 RJ45 1 GbE LAN Ports (Intel I210-IT), 2 RJ45 2.5 GbE LAN Ports, 40W Power Supply - (CSE-E50 + Super A4SAP-H) - SYS-E50-14AM-N5

1. Intel® Atom® Alder Lake-N N97 (TDP 7W / 4C)
2. DDR5-4800MT/s 1 DIMM max 16GB
3. 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042) 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
4. 2 RJ45 2.5GbE and 3 RJ45 1GbE
5. Fanless Embedded chassis with 4.64" (118mm) depth
6. 2 USB 2.0 port(s) (front),2 USB 3.2 Gen2 Type-A port(s) (Rear),2 HDMI 1.4 port(s) (Rear)

Extra Specifications for Supermicro SYS-E50-14AM-N5 IoT Fanless Embedded Embedded Intel Atom N97 Processor With 4-core And 12Thread

System Memory
Memory Voltage	1.1V
Memory	View Memory Options
	Slot Count: 1 DIMM slots/1 Channels
	Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 2.5GbE with Realtek
	3 RJ45 1GbE with Intel® I210-IT
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro SuperDoctor® 5 (SD5)
Power configurations	ACPI Power Management
	Control of power-on for recovery from AC power loss
	+12V DC Power Input
Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Secure Boot
Front Panel
Buttons	Power On/Off
LED	Power status
Drive Bays / Storage
Drive Bays Configuration	View Drive Options
	Default: Total 1 bay 1 internal fixed 2.5" SATA drive bay
	1 internal fixed 2.5" SATA drive bay
M.2	View M.2 Options
	1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
Product SKUs
Product SKUs	SYS-E50-14AM-N5
Motherboard
Motherboard	Super A4SAP-H
Processor
CPU	Intel® Processor N97
Core Count	Up to 4C/12T; Up to 6MB Cache
Note	Supports up to 7W TDP CPUs (Air Cooled)
Input / Output
LAN	2 RJ45 2.5 GbE LAN ports
	3 RJ45 1 GbE LAN ports (Intel® I210-IT)
USB	2 USB 3.2 Gen2 Type-A ports(Rear)
	2 USB 2.0 ports(front)
Video	2 HDMI 1.4 ports(Rear)
Serial	1 COM port(Front)
TPM	1 TPM Onboard/port 80
Chassis
Form Factor	Fanless Embedded
Model	CSE-E50
Dimensions and Weight
Height	1.72" (44 mm)
Width	5.82" (148 mm)
Depth	4.64" (118 mm)
Package	9.5" (H) x 5.5" (W) x 8" (D)
Weight	N/A
Available Color	Black
Expansion Slots
M.2
System Cooling
Fans	N/A
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)
	Operating Temperature: 0°C to 45°C (32°F to 113°F) with 0.7 m/s airflow

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
