| GPU |
| Max GPU Count | Up to 1 triple-width or 1 double-width GPU |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: RTX 5000 Ada, RTX 6000 Ada Generation |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 4 DIMM slots |
| Max Memory (2DPC): Up to 192GB 6400MT/s ECC/non-ECC DDR5 UDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| SATA | SATA (6Gbps) via Intel® W880; RAID 0/1/5/10 support |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Intel® I219-LM |
| 1 RJ45 2.5GbE with Intel® I226-LM |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Supermicro SuperDoctor® 5 (SD5) |
| Power configurations | ACPI 6.0 Power Management |
| Security |
| Hardware | Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| PC Health Monitoring |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature |
| Front Panel |
| Buttons | Power On/Off |
| Port | Audio Jack-Combo microphone input / audio output port |
| USB Type-A Ports-USB 3.2 Gen 1 ports (5G) |
| USB Type-C-USB 3.2 Gen 2 port (20G) |
| LED | Power status LED |
| HDD activity |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| 4 internal fixed 2.5" SATA drive bays |
| Default: Total 6 bays 2 internal fixed 3.5"/2.5" SATA drive bays 4 internal fixed 2.5" SATA drive bays |
| 2 internal fixed 3.5"/2.5" SATA drive bays |
| M.2 | View M.2 Options |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110(default)/2280) |
| 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)) |
| Product SKUs |

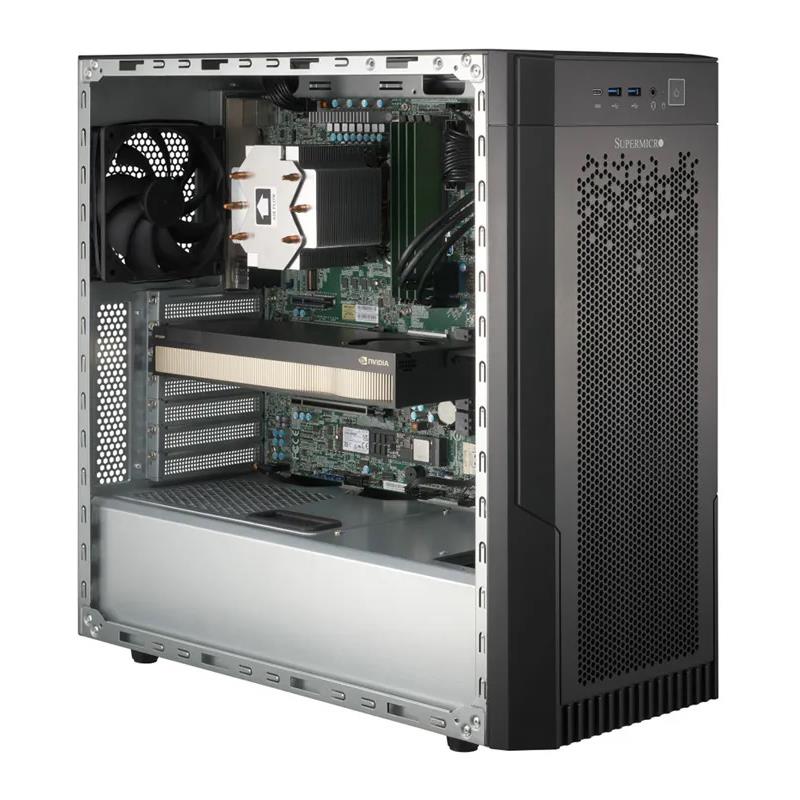

| Product SKUs | SYS-532AW-C |
| Motherboard |
| Motherboard | Super X14SAE |
| Processor |
| CPU | Single LGA-1851 |
| Intel® Core™ Ultra 9/7/5 (Series 2) processors |
| Core Count | Up to 24C/24T; Up to 36MB Cache |
| Note | Supports up to 125W TDP CPUs (Air Cooled) |
| Input / Output |
| USB | 2 USB 3.2 Gen1 Type-A ports(front) |
| 1 USB 3.2 Gen2 Type-C port(Rear) |
| 1 USB 3.2 Gen2 Type-C port(Front) |
| 3 USB 3.2 Gen2 Type-A ports(Rear) |
| 1 Thunderbolt™ 4 Type-C port(Rear) |
| Video | 1 HDMI 2.1 port(Rear) |
| 1 DisplayPort 2.1 port(Rear) |
| Audio | 7.1 HD Audio |
| TPM | 1 TPM header |
| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-GS3A-000NBP |
| Dimensions and Weight |
| Height | 17.72" (450 mm) |
| Width | 8.07" (205 mm) |
| Depth | 18.5" (470 mm) |
| Package | 24.29" (H) x 12.8" (W) x 23.23" (D) |
| Weight | Gross Weight: 19.2 lbs (8.7 kg) |
| Net Weight: 14.1 lbs (6.4 kg) |
| Available Color | Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| System Cooling |
| Fans | 4x 120mm Fan(s) |
| Operating Environment |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
