| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 16 DIMM slots |
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | No NIC option supported |
| View AOC Options |
| NVMe | NVMe; RAID 0/1 support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Default: Total 90 bays 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays |
| 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays |
| 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays |
| Option A: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| Product SKUs |

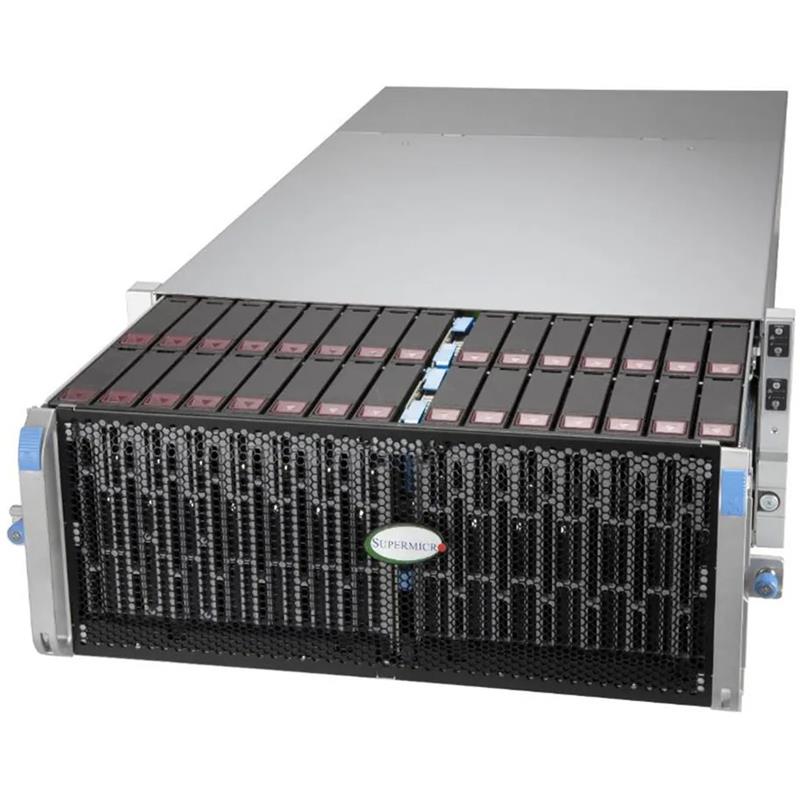

| Product SKUs | SSG-542B-DE1CR90 |
| Motherboard |
| Motherboard | Super X14SBSC |
| Processor |
| CPU | Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Single Socket E2 (LGA-4710) |
| Core Count | Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-947HTS-R2K63P |
| Dimensions and Weight |
| Height | 6.96" (177 mm) |
| Width | 17.6" (447 mm) |
| Depth | 43.3" (1099 mm) |
| Package | N/A |
| Weight | Gross Weight: 225 lbs (102.06 kg) |
| Net Weight: 130 lbs (58.97 kg) |
| Palletized Packing (W x H x L) | 35.82" (910 mm) x 29.92" (755 mm) x 53.15" (1345 mm) |
| Available Color | N/A |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| System Cooling |
| Fans | 6 Heavy Duty 8cm Fan(s) |
| 1 Counter Rotating 6cm Fan(s) |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
