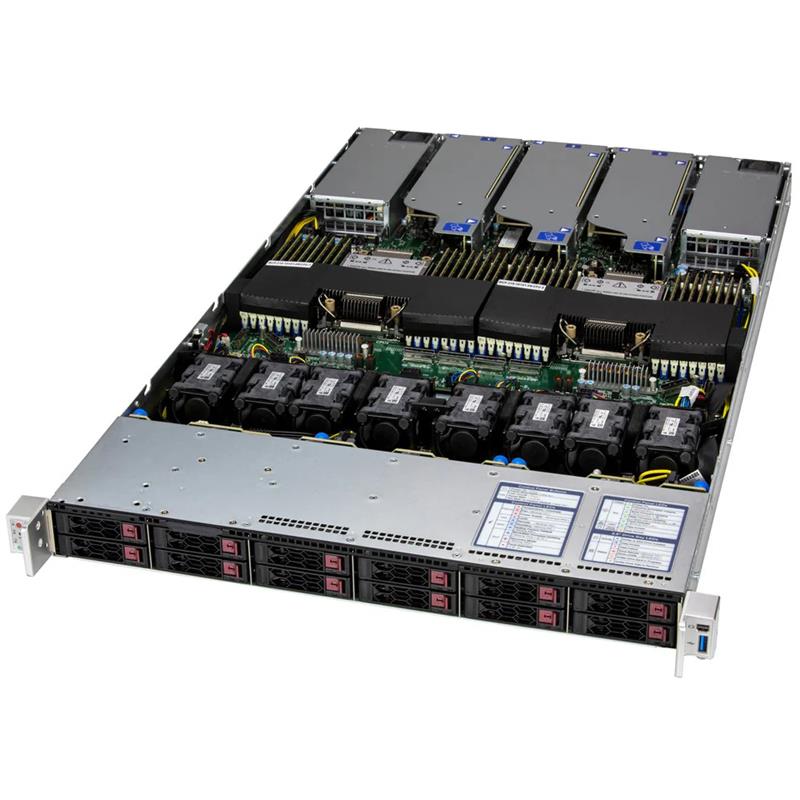

- Supermicro SYS-122C-TN CloudDC 1U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-122C-TN CloudDC 1U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
• Data Center Optimized, Value IaaS
• Cloud Computing
• HPC, Data Center
• Private & Hybrid Cloud
• Cloud Solution Provider (CSP)
• Networking Security Appliance
Barebone 1U Rackmount SuperServer, Support Dual Socket E2 (LGA-4710), Supporting Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores, Core Count: P-cores: Up to 86C/172T, Up to 336MB Cache per CPU, E-cores: Up to 144C/144T, Up to 108MB Cache per CPU. Max GPU Count: Up to 3 single-width GPUs. Up to 4TB in 32 DIMM slots, DDR5-5200 RDIMM, Chipset: System on Chip, On-Board: NVMe, RAID 0/1/5/10 Support (VROC HW key required), Drive Bays / Storage: 12 Front Hot-swap 2.5in NVMe/SAS/SATA Drive Bays, 2 M.2 PCIe 5.0 x2 NVMe Slots (M-key 22110 (default)/2280, VROC Required For RAID). Network Connectivity: 1 RJ45 1 GbE Dedicated BMC LAN Port, Others: 2x USB Ports, 1 VGA Port (Rear), 1 TPM Header. 1000W Power Supply - (CSE-DC101TS-R000NP + X14DBHM) - SYS-122C-TN
1. Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
2. Optimized power & balanced performance for cloud applications
3. Server management flexibility with OpenBMC
Extra Specifications for Supermicro SYS-122C-TN CloudDC 1U Barebone Dual Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
| Product SKUs | ||
| Product SKUs | SYS-122C-TN | |
| Motherboard | ||
| Motherboard | Super X14DBHM | |
| Processor | ||
| CPU | Dual Socket E2 (LGA-4710) | |
| Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores | ||
| Core Count | E-cores: Up to 144C/144T; Up to 108MB Cache per CPU | |
| P-cores: Up to 86C/172T; Up to 336MB Cache per CPU | ||
| Note | Supports up to 350W TDP CPUs (Air Cooled)* | |
| *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details. | ||
| GPU | ||
| Max GPU Count | Up to 3 single-width GPUs | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 32 DIMM slots | ||
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM | ||
| Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| NVMe | View NVMe Options | |
| NVMe; RAID 0/1/5/10 support(VROC HW key required) | ||
| Chipset | System on Chip | |
| Network Connectivity | Via AIOM | |
| View AOC Options | ||
| View AIOM Options | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB | 1 USB 2.0 Type-A port(Rear) | |
| 1 USB 3.2 Gen1 Type-A port(Rear) | ||
| Video | 1 VGA port(Rear) | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash ROM | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Power configurations | ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-DC101TS-R000NP | |
| Dimensions and Weight | ||
| Height | 1.7" (43.6 mm) | |
| Width | 17.2" (438.4 mm) | |
| Depth | 29.7" (755.1 mm) | |
| Package | 7.28" (H) x 22.83" (W) x 42.5" (D) | |
| Weight | Gross Weight: 41 lbs (19 kg) | |
| Net Weight: 31 lbs (17 kg) | ||
| Palletized Packing (W x H x L) | 49.6" (1260 mm) x 4.7" (120 mm) x 44.5" (1130 mm) | |
| Available Color | Silver | |
| Front Panel | ||
| LED | Power Fail LED | |
| LAN1 activity | ||
| LAN2 activity | ||
| Power status | ||
| HDD activity | ||
| System information | ||
| Buttons | UID button | |
| Power On/Off | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| View NVMe Options | ||
| 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays | ||
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables) | ||
| Default: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) | ||
| System Cooling | ||
| Fans | 8x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shrouds | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-30°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (Non-Condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3808 HBA Card | AOC-S3808L-L8IT | $ 401.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA | ||
| 3816 HBA Card | AOC-S3816L-L16IT | $ 502.50 | 1 | Standard LP 16 internal ports (12Gb/s) Gen-4 122HDD HBA | ||
| 3908 RAID Card | AOC-S3908L-H8IR-16DD | $ 823.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
| 3908/3916 CacheVault | BTR-CVPM05 | $ 266.50 | 1 | CacheVault for Broadcom 3908/3916 (requires a mount) | ||
| 3916 RAID Card | AOC-S3916L-H16IR-32DD | $ 794.50 | 1 | Standard LP 16 internal ports (12Gb/s) Gen-4, 32HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
| AIOM Network Card | AOC-A100G-b2CG | 0 | OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508 | |||
| AIOM Network Card | AOC-A25G-b2SG | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Broadcom® BCM57414 | |||
| AIOM Network Card | AOC-A25G-i4SG | 0 | OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1 | |||
| AIOM Network Card | AOC-AG-i2G | 0 | OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2 | |||
| AIOM Network Card | AOC-AG-i4G | 0 | OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4 | |||
| AIOM Network Card | AOC-ATG-b2TG | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416 | |||
| AIOM Network Card | AOC-ATG-i4SG | 0 | OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1 | |||
| AIOM Network Card | AOC-ATGC-i2TG | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2 | |||
| CacheVault Mount | MCP-240-00127-0N | $ 20.50 | 1 | CacheVault mounting tray for 2.5" drive bay | ||
| CacheVault Mount | MCP-240-00203-0N | $ 26.50 | 1 | CacheVault mounting bracket for PCIe slot | ||
| Front Bezel | MCP-210-10119-0B | 1 | 1U Plastic Black Front Bezel | |||
| Front Handle | MCP-290-10121-0V | 1 | 1U DC101 right chassis handle for USB and mini display ports | |||
| License | SFT-DCMS-SINGLE • | 1 | Supermicro System Managment Software License | |||
| License | SFT-SDDC-SINGLE • | 1 | Supermicro Data Center Monitor License | |||
| M.2 Tray | AOC-SLG4-2H8M2 | $ 226.00 | 0 | Standard LP PCIe x8 supporting 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0, 1 | ||
| NC-SI Cable | CBL-PWEX-1099-34 | 1 | FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM | |||
| Power Supply | PWS-1K04A-1R | $ 322.50 | 2 | 1000W AC-DC Titanium Level Power Supply CRPS | ||
| Power Supply | PWS-1K21A-1R | $ 417.00 | 2 | 1200W AC-DC Titanium Level Power Supply CRPS | ||
| Power Supply | PWS-1K61A-1R | $ 484.50 | 2 | 1600W AC-DC Titanium Level Power Supply M-CRPS | ||
| Power Supply | PWS-1K62D-1R | 2 | 1600W DC-DC Power Supply M-CRPS | |||
| Rails Set | MCP-290-10129-0N | 1 | 30.5" ball-bearing rail set, without auto latch, cable mgmt arm not supported | |||
| Rails Set | MCP-290-20106-0N | 1 | (Default) 35.25" ball-bearing rail set, without auto latch, cable mgmt arm not supported, comes with server | |||
| Rails Set | MCP-290-20122-0N | 1 | 41" Long ball-bearing rail set, without auto latch, cable mgmt arm supported | |||
| TPM | AOM-TPM-9672SCM | 1 | TPM 2.0 with Infineon SLB 9672 For SCM module | |||
| VROC HW Key | AOC-VROCPREMOD | $ 347.50 | 1 | Intel VROC Premium RAID 0, 1, 5, 10 | ||
| VROC HW Key | AOC-VROCSTNMOD | $ 178.00 | 1 | Intel VROC Standard RAID 0, 1, 10 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
