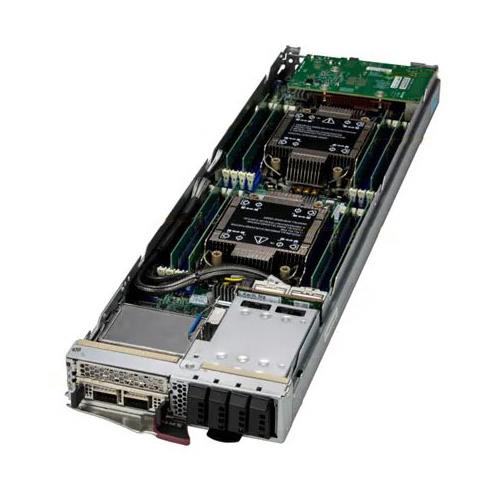

Supermicro SBI-422B-1NE14 Blade Barebone Dual Intel Xeon 6700/6500-series Processors With P-cores Or E-cores

Enterprise data center
EDA, Cloud
High-performance Computing (HPC)

Barebone Node, Designed For Supermicro 8U Enclosure SBE-820L.Support Dual Socket E2 (LGA-4710), Supporting Intel Xeon 6700/6500-series Processors With P-cores Or E-cores, Note: Up to 205W TDP CPUs (Air Cooled at 35°C. Up to 4TB in 16 DIMM slots, DDR5-6400MT/s ECC RDIMM/RDIMM, Chipset: System on Chip On-Board: 1 TPM 2.0 Header. Drive Bays / Storage: Hot-swap: 4 E1.S Drives, M.2: 1 NVMe M.2 2280 (onboard), Optional: 4 M.2 NVMe Via Mezz Card, Network Connectivity: Onboard Dual 25G Ethernet, IPMI 2.0 / KVM Over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust. OCP Card: 1x OCP 3.0 Card Compliant Including IB NDR or IB NDR200. (SBI-422B-1NE14)

1. 100 servers per 42U rack

2. Dual Socket E2 (LGA-4710), Intel Xeon 6700/6500-series processors with P-cores or E-cores

3. Up to 16 DIMMs, 1DPC, DDR5-6400MT/s ECC RDIMM/3DS-RDIMM

4. Supports up to 9 drives per blade

5. Dual-port 25G Ethernet (LOM)

6. Expansion slot for IB or Ethernet mezzanine card and OCP 3.0 compliant card

7. Optional liquid cooling solution

Extra Specifications for Supermicro SBI-422B-1NE14 Blade Barebone Dual Intel Xeon 6700/6500-series Processors With P-cores Or E-cores

Main Specifications
Device Type	SuperBlade Sled
Built-in Devices	MBD-B14DBT
Dimensions (WxDxH)	Height 1.7" x Width 6.55" x Depth 23.9"
Weight	7.37 lbs
Enclosure Color	Metalic Silver with Black Drive Bays
Processor
Compatible Processors	Intel Xeon 6700/6500-series processors with P-cores or E-cores
Compatible Socket	Dual Socket E2 (LGA-4710), Up to 205W TDP CPUs (Air Cooled at 35°C
System Memory
Memory Capacity (per Node)	Up to 4TB DDR5ECC RDIMM/3DS-RDIMM, with speed 6400MT/s (1DPC) or 5200MT/s (2DPC) in 16 DIMM slots
	Up to 512GB MRDIMM with speed 8000MT/s in 1DPC memory population
	16 DDR5 DIMM slots
On-Board Devices
Chipset	System on Chip
Network Controllers	Onboard Dual 25G Ethernet
	1 expansion slot w/ optional mezzanine cards
	1 expansion slot for OCP 3.0 compliant card (IB NDR/NDR200)
MGMT/Security	IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
Graphics	Aspeed AST2600
TPM	1 TPM 2.0 header
System BIOS
BIOS Type	256Mb SPI Flash EEPROM with AMI® BIOS
Front Panel
Buttons	Power On/Off button
LEDs	Power LED, UID, Network Activity LED, Fault LED
Expansion / Connectivity
OCP card	1x OCP 3.0 card compliant including IB NDR or IB NDR200
Expansion Bays Total (Free)	Hot-swap: 4 E1.S drives
M.2	1 NVMe M.2 2280 (onboard)
	Optional: 4 M.2 NVMe via mezz card
Miscellaneous
Environmental Compliance	RoHS Compliant
Environmental
Operating Environment	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro SBI-422B-1NE14 Blade Barebone Dual Intel Xeon 6700/6500-series Processors With P-cores Or E-cores

$ 1,502.00$ 1,502.001502.0USD

$ 1,502.00
