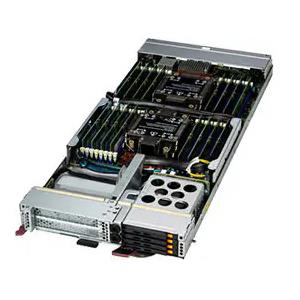

Supermicro SBI-622B-1NE34 SuperBlade Sled Barebone Dual Intel Xeon 6700/6500-series Processors With P-cores or E-cores
Supermicro SBI-622B-1NE34 SuperBlade Sled Barebone Dual Intel Xeon 6700/6500-series Processors With P-cores or E-cores

Supermicro SBI-622B-1NE34 SuperBlade Sled Barebone Dual Intel Xeon 6700/6500-series Processors With P-cores or E-cores

  • Enterprise Applications

  • High Performance Computing

  • Engineering/scientific research

  • Cloud, virtualization, financial, EDA

Barebone Node, Designed For Supermicro 6U Enclosure SBE-610J and SBE-610J2. Support Dual Socket E2 (LGA-4710), Supporting Intel Xeon 6700/6500-series Processors With P-cores or E-cores, Note: Up to 350W TDP CPUs (Air Cooled at 35°C). CPU-GPU Interconnect: Up to 2 LP PCIe 5.0 x16 GPUs. Up to 8TB 6400MT/s DDR5 RDIMM Or Up to 1TB ECC Registered MRDIMM for P-core CPU in 32 DIMM slots, Chipset: System on Chip On-Board: 1 TPM 2.0 Header. Drive Bays / Storage: Hot-swap: 4 Hot-swap E3.S Drive Bays, Optional: 2 M.2 2280 NVMe SSDs Via Adapter, Network Connectivity: Onboard Dual 25G Ethernet Port With Intel Controller E810-XXVAM2 1 Expansion Slot With Optional Mezzanine Cards With Dual 25G Ethernet Port. PCIe: 2 PCIe 5.0 x16 Slots, Support 2 HHHL Single-width PCIe Cards - (SBI-622B-1NE34)

$ 1,795.00$ 1,795.001795.0USD

$ 1,795.00

Option not available

PreOrder
15 lb

    This combination does not exist.

    Add to Cart

    1. 70 servers per 42U rack

    2. Dual Socket E2 (LGA 4710) Intel Xeon 6700 and 6500 series processors with E cores or P cores up to 350W TDP

    3. Up to 1TB MRDIMM with speeds up to 8000 MT/s (1DPC) or up to 8TB RDIMM 3DS with speeds up to 6400 MT/s (1DPC) or 5200 MT/s (2DPC) in 32 DIMM slots

    4. 6 NVMe SSDs including 4 hot swap E3.S SSD PCIe Gen5 and 2 M.2 PCIe Gen5

    5. Dual-port 25G Ethernet LAN on motherboard with Intel E810

    6. Expansion slot for Ethernet mezzanine card and two standard PCIe cards

    7. Direct liquid cooling solution is available

    Extra Specifications for Supermicro SBI-622B-1NE34 SuperBlade Sled Barebone Dual Intel Xeon 6700/6500-series Processors With P-cores or E-cores

    Main Specifications
    Device TypeSuperBlade Sled
    Built-in DevicesMBD-B14DBE
    Dimensions (WxDxH)Height 1.7" x Width 9.83" x Depth 24.8"
    Enclosure ColorMetalic Silver with Black Drive Bays
    Weight8.36 lbs
    Processor
    Compatible ProcessorsIntel Xeon 6700/6500 series processors with E-cores or P-cores
    Compatible SocketDual Socket E2 (LGA-4710), Up to 350W TDP
    Cache/CoreUp to 144 E-cores or 86 P-cores
    NoteSupports up to 250W TDP CPUs (Air Cooled)
    Direct liquid cooling solution is available
    GPU
    CPU-GPU InterconnectUp to 2 LP PCIe 5.0 x16 GPUs
    System Memory
    Memory Capacity32 DIMM slots, Up to 8TB ECC Registered RDIMM (3DS), DDR5-6400MT/s Up to 1TB ECC Registered MRDIMM for P-core CPU
    Memory TypeECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC), ECC Registered MRDIMM up to 64GB of memory with speed up to 8000MT/s (1DPC)
    DIMM SizesRDIMM (3DS) 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB MRDIMM 32GB, 64GB
    Memory Voltage1.1 V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    Network ControllersOnboard Dual 25G Ethernet port with Intel Controller E810-XXVAM2, 1 expansion slot with optional mezzanine cards with Dual 25G Ethernet port
    MGMT/SecurityIPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
    GraphicsAspeed AST2600
    TPM1 TPM 2.0 header
    System BIOS
    BIOS Type64Mb SPI Flash EEPROM with AMI BIOS
    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED, UID LED, Network Activity LED, Fault LED
    Expansion / Connectivity
    Expansion Slots Total (Free)2 PCIe 5.0 x16 slots, support 2 HHHL single-width PCIe cards
    Drive Bays / Storage
    Drive Bays / Storage4 Hot-swap E3.S drive bays
    Optional: 2 M.2 2280 NVMe SSDs via adapter
    Miscellaneous
    Environmental ComplianceRoHS Compliant
    Environmental
    Operating EnvironmentOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
