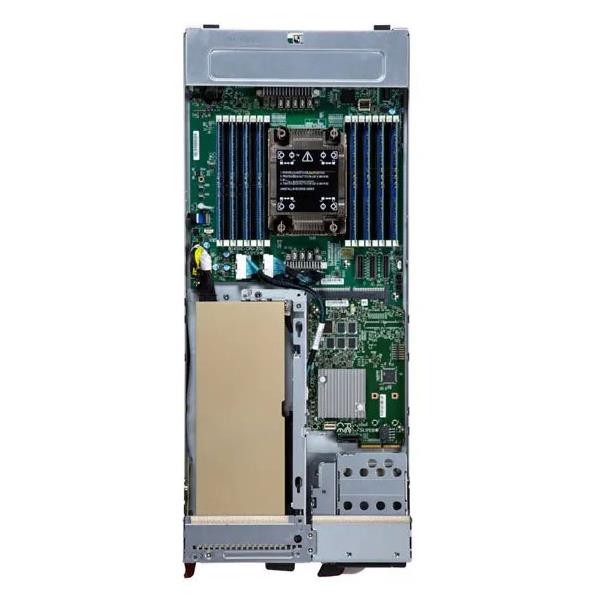

  2. Supermicro SBI-612B-1C2N SuperBlade Sled Barebone Single Intel Xeon 6700/6500-series Processors With P-cores or E-cores
Supermicro SBI-612B-1C2N SuperBlade Sled Barebone Single Intel Xeon 6700/6500-series Processors With P-cores or E-cores
Supermicro SBI-612B-1C2N SuperBlade Sled Barebone Single Intel Xeon 6700/6500-series Processors With P-cores or E-cores
Supermicro SBI-612B-1C2N SuperBlade Sled Barebone Single Intel Xeon 6700/6500-series Processors With P-cores or E-cores

Supermicro SBI-612B-1C2N SuperBlade Sled Barebone Single Intel Xeon 6700/6500-series Processors With P-cores or E-cores

  • Enterprise Applications

  • High Performance Computing

  • Engineering/scientific research

  • Cloud, virtualization, financial, EDA

Barebone Node, Designed For Supermicro 6U Enclosure SBE-610J and SBE-610J2. Support Single Socket E2 (LGA-4710), Supporting Intel Xeon 6700/6500-series Processors With P-cores or E-cores, Note: Note: Up to 250W TDP CPUs (Air Cooled at 35°C). Max GPU Count: Up to 1 Double-width Or 2 Single-width GPU. Up to 4TB in 16 DIMM slots, DDR5-8800MT/s RDIMM Or Up to 512GB MRDIMM, Chipset: System on Chip On-Board: 1 TPM Header. Drive Bays / Storage: 2 Front-end Hot-swap 2.5in NVMe/SAS Drive Bays HW RAID 0 & 1 With Broadcom 3108, M.2: 1 M.2 2280/22110 NVMe/SATA3 Drive (Onboard). Network Connectivity: Onboard Dual 25G Ethernet, 1 Expansion Slot With Optional Mezzanine Cards, PCIe: 2 PCIe Gen5 x16 Slot, Support 1 FHFL DW PCIe Card or 2 SW PCIe Cards - (SBI-612B-1C2N)

$ 1,741.00$ 1,741.001741.0USD

$ 1,741.00

Option not available

PreOrder
15 lb

    This combination does not exist.

    Add to Cart

    1. 70 servers per 42U rack

    2. Single Socket E2 (LGA-4710), Intel Xeon 6700/6500-series processors with P-cores or E-cores

    3. Up to 4TB DDR5 ECC RDIMM/3DS-RDIMM, 16 DIMM slots, 6400MT/s (1DPC) or 5200MT/s (2DPC)

    4. 2 Hot-swap U.2 NVMe/SAS drives

    5. HW RAID 0 and 1 via Broadcom 3108

    6. Dual-port 25G Ethernet (LOM)

    7. Expansion slot for Ethernet mezzanine and standard PCIe card

    8. Optional liquid cooling solution

    Extra Specifications for Supermicro SBI-612B-1C2N SuperBlade Sled Barebone Single Intel Xeon 6700/6500-series Processors With P-cores or E-cores

    Main Specifications
    Device TypeSuperBlade Sled
    Built-in DevicesMBD-B14SBE-CPU-25G
    Dimensions (WxDxH)Height 1.7" x Width 9.83" x Depth 24"
    Weight6.2 lbs
    Enclosure ColorMetalic Silver with Black Drive Bays
    Processor
    Compatible Processors (per Node)Intel Xeon 6700/6500-series processors with P-cores or E-cores
    Compatible Socket (per Node)Single Socket E2 (LGA-4710)
    GPU
    Max GPU Count (per Node)Up to 1 double-width or 2 single-width GPUs
    System Memory
    Memory Capacity (per Node)16 DIMM slots (2DPC)
    Up to 4TB DDR5ECC RDIMM/3DS-RDIMM, with speed 6400MT/s (1DPC) or 5200MT/s (2DPC) in 16 DIMM slots
    Up to 512GB MRDIMM with speed 8000MT/s in 1DPC memory population
    On-Board Devices
    Chipset (per Node)System on Chip
    Network Controllers (per Node)Onboard Dual 25G Ethernet
    1 expansion slot w/ optional mezzanine cards
    MGMT/Security (per Node)IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
    Graphics (per Node)Aspeed AST2600
    TPM1 TPM Header
    System BIOS
    BIOS Type (per Node)AMI 256MB SPI Flash EEPROM
    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED, UID, Network Activity LED, Fault LED
    Expansion Slots
    Expansion Slots (per node)2 PCIe Gen5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards
    Expansion / Connectivity
    Drive Bays / Storage (per Node)2 front-end hot-swap 2.5" NVMe/SAS drive bay(s); HW RAID 0 & 1 with Broadcom 3108
    Drive Bays
    M.2 (per node)1 M.2 2280/22110 NVMe/SATA3 drive (onboard)
    Miscellaneous
    Environmental ComplianceRoHS Compliant
    Environmental
    Operating EnvironmentOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
