| Main Specifications |
| Device Type | IoT A+ Server |
| Built-in Devices | H13SVW-NT |

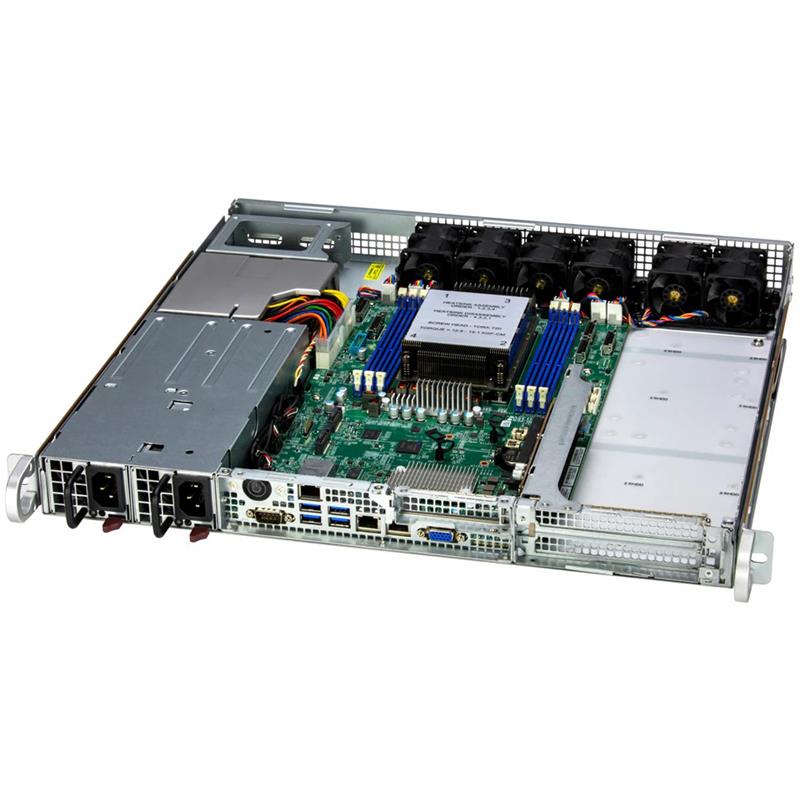

| Form Factor | 1U Rackmount - CSE-515B-R000WNP |
| Dimensions (WxDxH) | Height 1.7" (44.5 mm) x Width 17.2" (436.88 mm) x Depth 16.9" (429.3 mm) |
| Weight | Gross Weight: 15 lbs (6.8 kg) - Net Weight: 10 lbs (4.54 kg) |
| Enclosure Color | Silver |
| GPU |
| Max GPU Count | Up to 1 single-width GPU(s) |
| Supported GPUs | NVIDIA PCIe: L4, A2 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Processor |
| Processor Installed | AMD EPYC 8124P Processor (Installed) With 16-Core/32 Thread (2.45 GHz) |
| System Memory |
| Memory Installed | 128GB |
| Drive Bays |
| Hard Drive Installed | 1x 480GB Hard Drive, 1x 1.92TB Hard Drive |
| On-Board Devices |
| SATA/SAS | SATA (6Gbps) |
| NVMe. | NVMe; (Optional) |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom BCM57416 |
| TPM | 1 TPM Header |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port, 2 RJ45 10 GbE LAN ports |
| USB(s) | 4 ports |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | 1U 800W Redundant 100-240Vac Platinum AC power supply |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| CPU | Monitors for CPU thermal trip, Chipset Voltages, Memory |
| Front Panel |
| LEDs | LAN1 activity, LAN2 activity, Power status |
| Buttons | Power On/Off button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x16 FHFL slots, 1 PCIe 5.0 x16 LP slot |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | 2 internal fixed 2.5" NVMe/SAS/SATA drive bays |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| 6 Heavy duty counter-rotating 4cm Fan(s) |
| Power Supply |
| Power Supply | 2x 800W Redundant Platinum Level (94%) power supplies |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
