| Main Specifications |

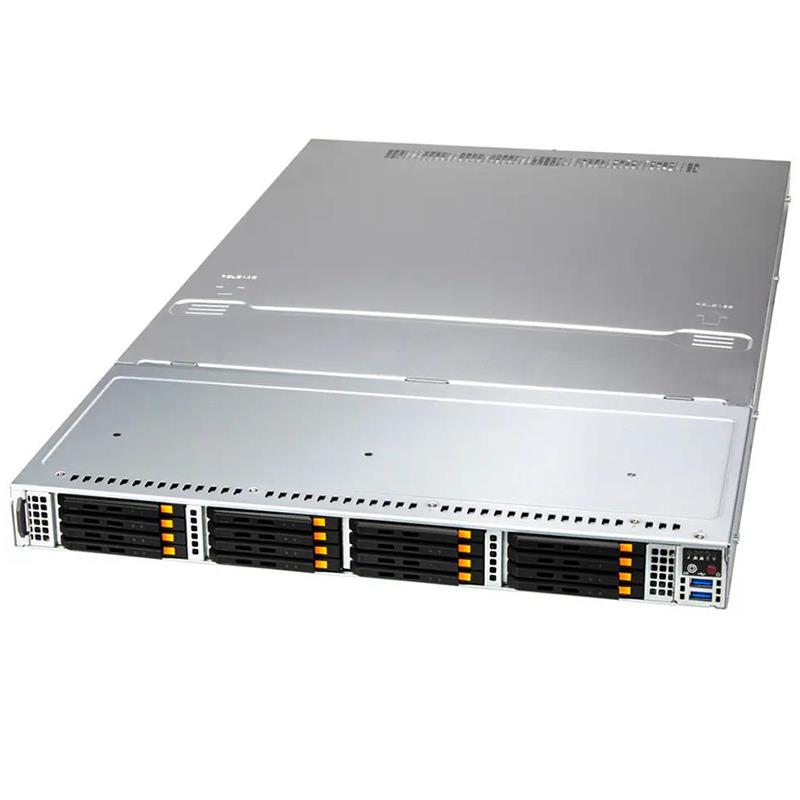

| Device Type | Storage A+ Server |
| Built-in Devices | Super H13SSF |
| Form Factor | 1U Rackmount - CSE-126E32-R1K62P |
| Dimensions (WxDxH) | Height 1.7" (43.6 mm) x Width 17.2" (438.4 mm) x Depth 30.4" (773.25 mm) |
| Weight | Gross Weight: 68.74 lbs (31.2 kg) - Net Weight: 48 lbs (21.8 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | AMD EPYC 9454P Processor (Installed) With 48-Core/96 Thread (2.75GHz) |
| System Memory |
| Memory Installed | 384GB DDR5-5600 |
| Drive Bays |
| Hard Drive Installed | 2x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | Dual 10GbE With RJ45 Connectivity (Installed) |
| Chipset | AMD System on Chip |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 ports(rear), 2 USB 3.0 ports(front) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Memory |
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT |
| Front Panel |
| LEDs | Network activity, Power status, SSD activity, System information (overheat/UID) |
| Buttons | Power On/Off button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 16 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays |
| 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110) |
| 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110) |
| System Cooling |
| Fans/Air Shroud | Air Shroud: 1 Air Shroud |
| Fans: 8 Heavy Duty 4cm Fan(s) |
| Power Supply |
| Power Supply | 2x 1600W Titanium Level Power Supplies |
