| Main Specifications |

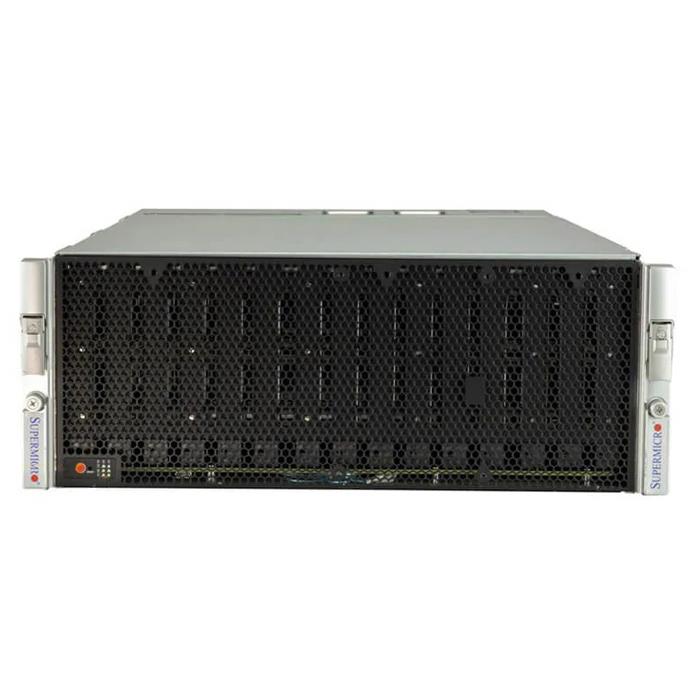

| Device Type | Storage SuperServer |
| Built-in Devices | Super X12SPI-TF |
| Form Factor | 4U Rackmount - CSV-946STS-R1K6LPP |
| Dimensions (WxDxH) | Height 7" x Width 17.2" x Depth 30.2" (767 mm) |
| Weight | Gross Weight: 169.5 lbs (76.9 kg) - Net Weight: 117 lbs (53 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Intel Xeon Scalable 4310 3rd Generation (Installed) With 12-Core/24 Thread (2.10GHz) |
| System Memory |
| Memory Installed | 128GB DDR4-3200MHz |
| Drive Bays |
| Hard Drive Installed | 1x 480GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | Dual 25GbE With SFP28 Connectivity (Included) |
| Chipset | Intel C621A |
| SATA/SAS | SATA (6Gbps), SAS (12Gbps) (IT mode) |
| Input / Output |
| USB(s) | 4 USB 3.0 ports(rear) |
| Video Output | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) ports |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | HDD activity, Network activity, Power status, System information (overheat/UID) |
| Buttons | Power On/Off button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 3 PCIe 4.0 x8 LP slots, 2 PCIe 4.0 x16 LP slots |
| M.2 | 1 M.2 PCIe 3.0 x4 SATA slot (M-key) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 60 top-loading hot-swap 3.5" SAS/SATA drive bays |
| System Cooling |
| Fans/Air Shroud | Air Shroud: 1 Air Shroud |
| Fans: 5 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Power Supply | 2x 1600W Titanium Level Power Supplies |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
| Environmental |
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
