| Main Specifications |

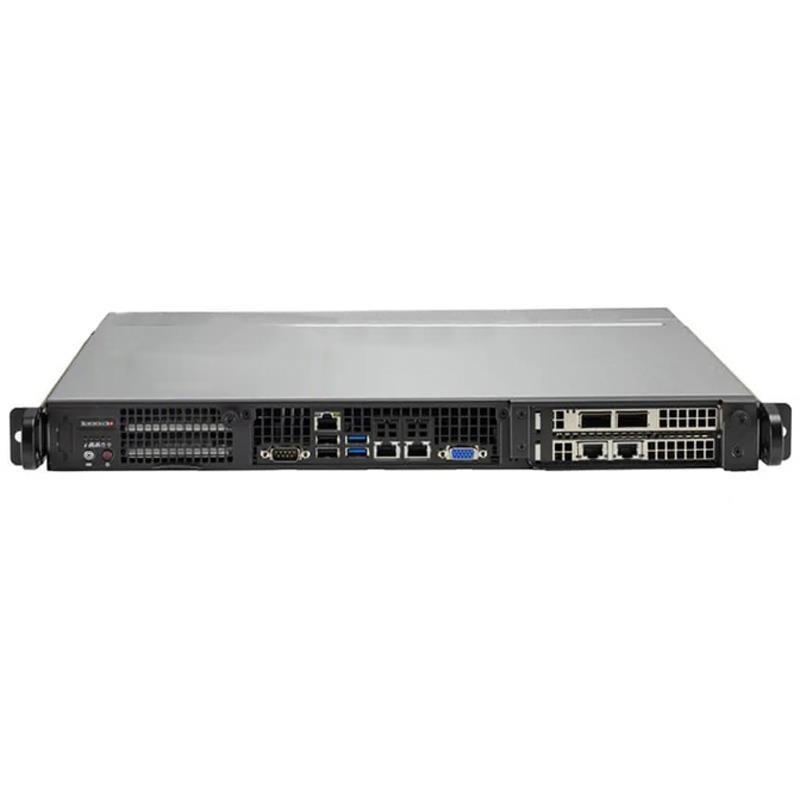

| Device Type | IoT SuperServer |
| Built-in Devices | Super X12SPW-TF |
| Form Factor | 1U - CSE-515M-R804 |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 15.7" (399 mm) |
| Weight | Gross Weight: 18 lbs (8.16 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Intel Xeon Scalable 4310 3rd Generation (Installed) With 12-Core/24 Thread (2.10GHz) |
| System Memory |
| Memory Installed | 64GB DDR4-3200MHz |
| Drive Bays |
| Hard Drive Installed | 1x 480GB 2.5in SATA Drive And 1x 480GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | Dual 10GbE With QSFP28 Connectivity (Included) |
| Chipset | Intel C621A |
| SATA/SAS | SATA (6Gbps), RAID 0/1 support |
| Input / Output |
| LAN | 2 RJ45 10 GbE LAN ports |
| USB(s) | 2 USB 3.0 Type-A ports, 2 USB 2.0 Type-A ports |
| Video Output | 1 VGA port |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, PEPI |
| Front Panel |
| LEDs | Fan Fail/System Over Heat LED, HDD activity LED, Network Activity LEDs, Power status LED |
| Buttons | Power On/Off button, System Reset button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 4.0 x16 FHFL slots |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | 2 internal fixed 2.5" SATA drive bays |
| System Cooling |
| Fans/Air Shroud | Air Shroud: 1 Air Shroud |
| Fans: 5 heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | 1x 800W Redundant Platinum Level (94%) power supply |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
