| Main Specifications |

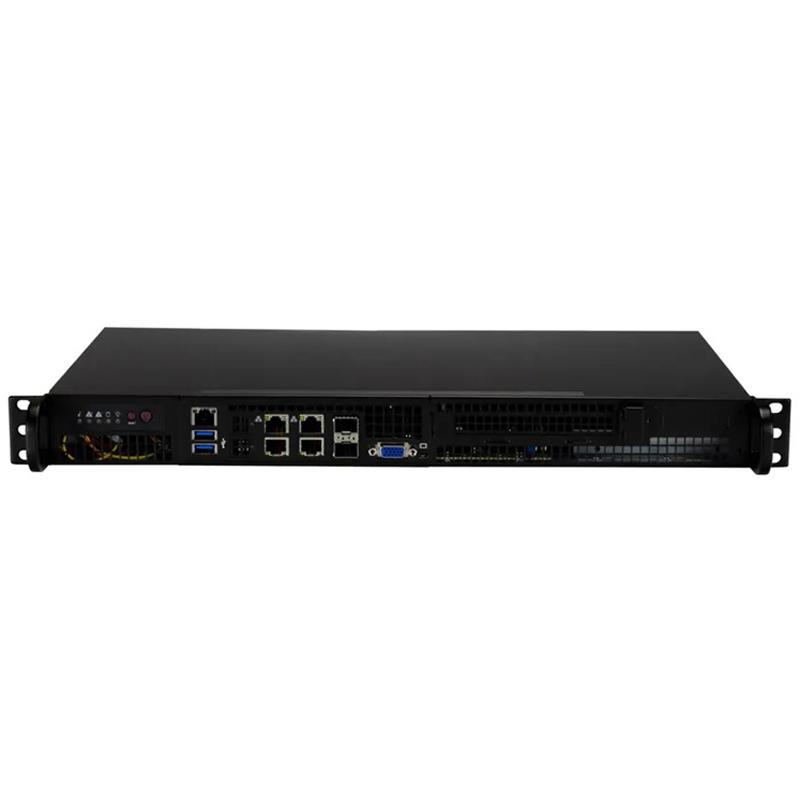

| Device Type | IoT SuperServer |
| Built-in Devices | Super X12SDV-4C-SP6F |
| Form Factor | Mini-1U - CSE-505-203B |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 9.8" (249 mm) |
| Weight | Net Weight: 8 lbs (3.62 kg) - Gross Weight: 10 lbs (4.54 kg) |
| Enclosure Color | Black |
| Processor |
| Processor Installed | Intel Xeon D-1718T Processors (Installed) With 4-Core/4 Thread (2.6GHz) |
| System Memory |
| Memory Installed | 16GB DDR4-3200MHz |
| Drive Bays |
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | Dual 100GbE With QSFP28 Connectivity (Included) |
| Chipset | Intel SoC |
| Input / Output |
| USB(s) | 2 ports |
| Video Output | 1 VGA port |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | CPU thermal trip support, PEPI Monitoring for CPU and chassis environment |
| Front Panel |
| LEDs | Fan Fail/System Over Heat LED, HDD activity LED, Network Activity LEDs, Power status LED |
| Buttons | Power On/Off button, System Reset button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 4.0 x16 FHHL slot |
| M.2 | 1 M.2 PCIe 3.0 x1 SATA slot (E-key 2230; USB 2.0) |
| 1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0) |
| 1 M.2 PCIe 3.0 x4 SATA slot (M-key 2280) |
| Drive Bays / Storage |
| Drive Bays Configuration | 4 internal fixed 2.5" SATA drive bays |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| 4x 4-PIN PWM 40x28mm Fan(s) (optional) |
| Power Supply |
| Power Supply | 1x 200W Gold Level (91%) power supply |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
