| Main Specifications |

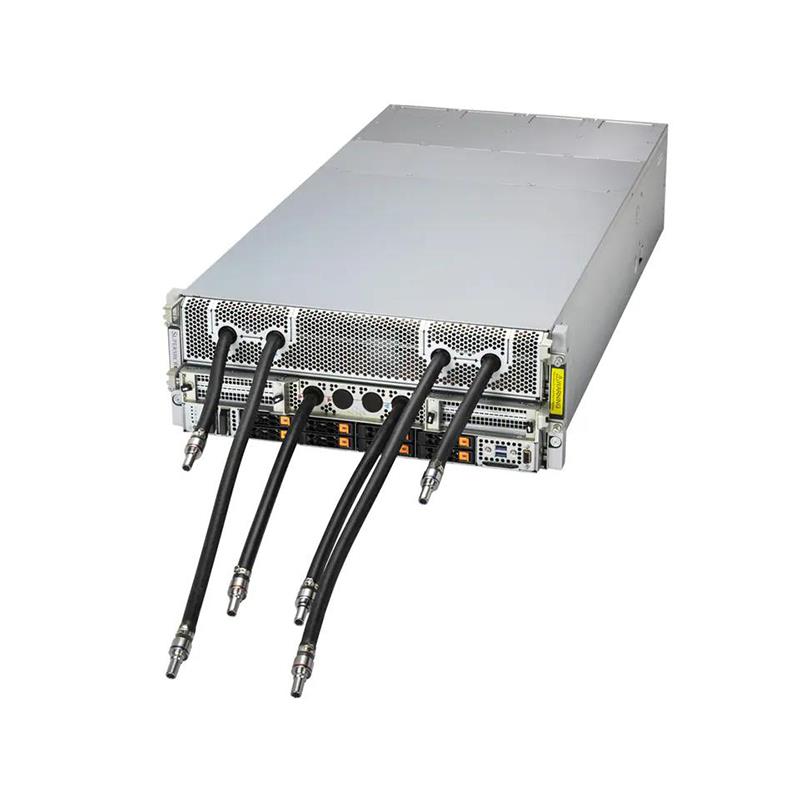

| Device Type | GPU A+ Server |
| Built-in Devices | Super H14DSG-OD |
| Form Factor | 4U Rackmount - CSE-GP403TS-R000NP |
| Dimensions (WxDxH) | Height 6.85" (174 mm) x Width 17.6" (449 mm) x Depth 35.25" (895.35 mm) |
| Weight | Gross Weight: 140 lbs (63.5 kg) - Net Weight: 80 lbs (53 kg) |
| Enclosure Color | Silver |
| GPU |
| Max GPU Count | 8 onboard GPUs |
| Supported GPUs | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA NVLink with NVSwitch |
| Processor |
| Processor Installed | Two AMD EPYC 9575F Processor (Installed) With 16-Core/128 Thread (3.3GHz) |
| System Memory |
| Memory Installed | 3TB DDR5-6400 |
| Drive Bays |
| Hard Drive Installed | 4x 15.3TB U.2 NVMe Solid-state Drive (SSD), 2x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 8x Single 400G NDR/ETH OSFP, 1x NVIDIA BlueField-3 DPU 200Gb/s (Included) |
| Chipset | System on Chip |
| TPM | 1 TPM Header |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 Type-A ports (Rear) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | Network activity LEDs, System information (overheat/UID), UID |
| Buttons | Power On/Off, UID/ Reset button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 8 PCIe 5.0 x16 LP slots, 2 PCIe 5.0 x16 FHHL slots |
| M.2 | 2 M.2 NVMe slots (M-key 22110 (default) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| 5x 6cm heavy duty fans with optimal fan speed control |
| Liquid Cooling: Direct to Chip (D2C) Cold Plate |
| Power Supply |
| Power Supply | 4x 6600W Redundant (2+2) Titanium Level Power Supplies |
| Environmental |
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
