| Main Specifications |

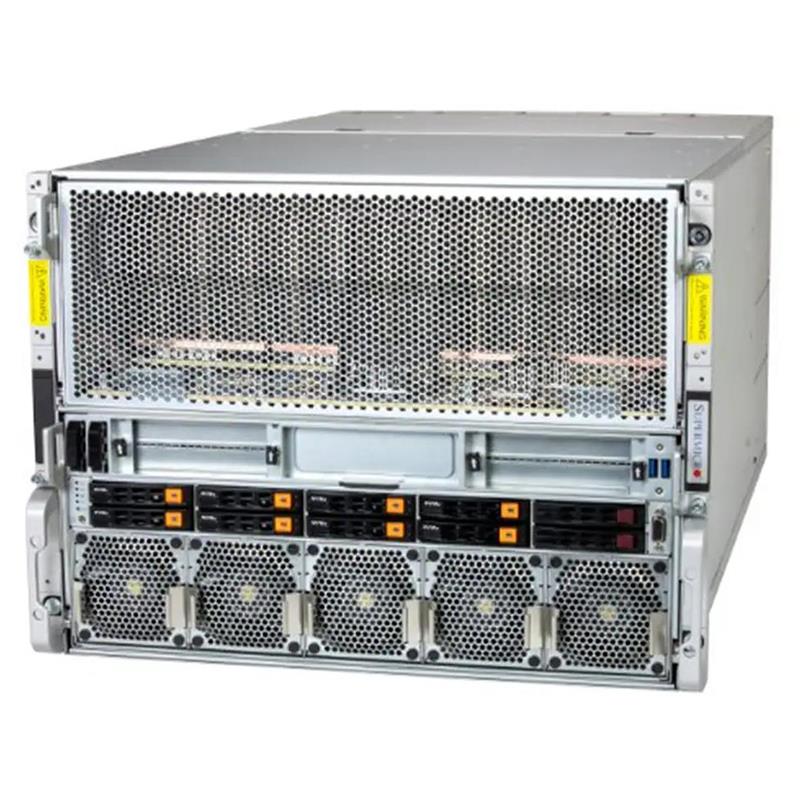

| Device Type | GPU A+ Server |
| Built-in Devices | Super H14DSG-OD |
| Form Factor | 8U Rackmount - CSE-GP805TS-R000NPF |
| Dimensions (WxDxH) | Height 13.8" (356 mm) x Width 17.6" (447 mm) x Depth 33.2" (843 mm) |
| Weight | Gross Weight: 158.73 lbs (72 kg) - Net Weight: 105.82 lbs (48 kg) |
| Enclosure Color | Silver |
| GPU Support | AMD Instinct MI325X 8-GPU (Included) |
| Processor |
| Processor Installed | Two AMD EPYC 9575F Processor (Installed) With 16-Core/128 Thread (3.3GHz) |
| System Memory |
| Memory Installed | 2.3TB DDR5-6400 |
| Drive Bays |
| Hard Drive Installed | 4x 3.8TB U.2 NVMe Solid-state Drive (SSD), 1x 960GB U.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 8 Single 400GbE With QSFP112 And 1 Dual 10GbE With RJ45 Connectivity (Included) |
| Chipset | System on Chip |
| TPM | 1 TPM Header |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 Type-A ports(Rear) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| LEDs | HDD activity, Network activity LEDs, System information (overheat/UID), UID |
| Buttons | Power On/Off, UID/ Reset button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 8 PCIe 5.0 x16 LP slots, 2 PCIe 5.0 x16 FHHL slots |
| 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default)) |
| Drive Bays / Storage |
| Drive Bays Configuration | 2 M.2 NVMe slots (M-key) |
| Default: 2 front hot-swap 2.5" SATA drive bays, 8 front hot-swap 2.5" NVMe drive bays |
| System Cooling |
| Fans/Air Shroud | Air Shroud: 1 Air Shroud |
| Fans: 10 heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
