- Supermicro AS-1116CS-TN CloudDC 1U Barebone Single AMD EPYC 9005/9004 Series Processors

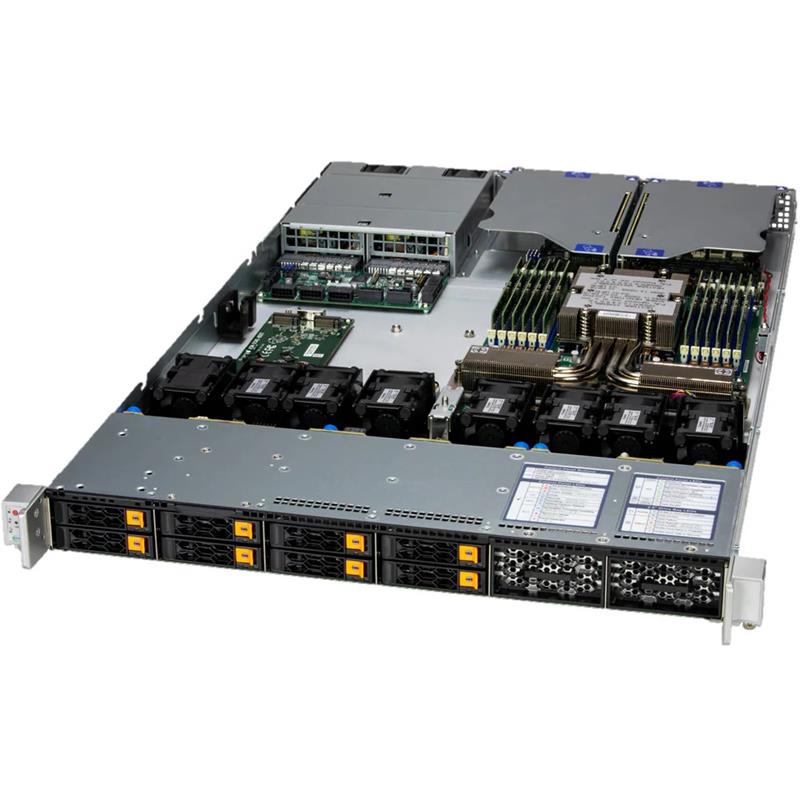

Supermicro AS-1116CS-TN CloudDC 1U Barebone Single AMD EPYC 9005/9004 Series Processors
• Virtualization
• HPC
• CDN, Edge Nodes
• Cloud Computing
• Data Center Optimized
• Storage Headnode
Barebone 1U Rackmount SuperServer, Support Single Processor, Supporting AMD EPYC 9005/9004 Series Processors, Core Count: Up to 192C/384T, Supports up to 500W TDP CPUs, Max GPU Count: Up to 2 single-width GPUs, CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect. Up to 3TB 6400MT/s ECC DDR5 RDIMM in 12 DIMM slots Chipset: System on Chip On-Board: 2x USB Ports, 1 VGA Port (Rear), 1 TPM header, Drive Bays / Storage: 8 Front Hot-swap 2.5in PCIe 5.0 NVMe/SAS/SATA Drive Bays, 2 M.2 PCIe 3.0 x2 NVMe Slots (M-key 2280 (default) 22110). Network Connectivity: 1 RJ45 1 GbE Dedicated BMC LAN Port, Optional Configuration For Power Supply - (CSE-MD101TS-R000NDP + H14SHM) - AS-1116CS-TN
1. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations Based on Modular DeNsity Optimized HPM Form Factor (M-DNO) Support DC-SCM module with OpenBMC
2. Single AMD EPYC™ 9005/9004 Series Processor
3. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
4. 2 PCIe 5.0 x16 FHHL slots
5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible) 1 RJ45 1 GbE Dedicated BMC LAN Port (DC-SCM)
6. 8 Hot-swap 2.5" NVMe/SATA/SAS drive bays Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive bays Optional RAID support via storage add-on card
7. Support up to 2 FHHL GPU accelerator cards
8. Dual 1000W / 2000W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1116CS-TN CloudDC 1U Barebone Single AMD EPYC 9005/9004 Series Processors
| Product SKUs | ||
| Product SKUs | AS -1116CS-TN | |
| Motherboard | ||
| Motherboard | Super H14SHM | |
| Processor | ||
| CPU | Single processor(s) | |
| AMD EPYC™ 9005/9004 Series Processors | ||
| Core Count | Up to 192C/384T | |
| Note | Supports up to 500W TDP CPUs | |
| GPU | ||
| Max GPU Count | Up to 2 single-width GPUs | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 12 DIMM slots/12 Channels | ||
| Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) | ||
| Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via AIOM | |
| View AOC Options | ||
| View AIOM Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB | 1 USB 2.0 Type-A port(Rear) | |
| 1 USB 3.2 Gen1 Type-A port(Rear) | ||
| Video | 1 VGA port(Rear) | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| ACPI 6.5 | ||
| Management | ||
| Software | KVM with dedicated LAN | |
| IPMI 2.0 | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Supermicro Thin-Agent Service (TAS) | ||
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| IPMIView | ||
| Power configurations | Power-on mode control for AC power loss recovery | |
| Power button override mechanism, | ||
| ACPI/APM Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-MD101TS-R000NDP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 29.4" (747 mm) | |
| Package | 8.1" (H) x 23.8" (W) x 40.6" (D) | |
| Weight | Net Weight: 34 lbs (15.4 kg) | |
| Gross Weight: 49 lbs (22.2 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | LAN1 activity | |
| LAN2 activity | ||
| Power status | ||
| HDD activity | ||
| System information | ||
| Power Failed LED | ||
| Buttons | Power On/Off button | |
| UID button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| CXL Support | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| View NVMe Options | ||
| Default: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| 8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| Option A: Total 12 bays 12 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| 12 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110) | ||
| System Cooling | ||
| Fans | 8 Counter-Rotating PWM 40x40x56mm Fan(s) | |
| Air Shroud | 1 Air Shroud | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
