- Supermicro AS-1116CS-TN CloudDC 1U Barebone Single AMD EPYC 9005/9004 Series Processors

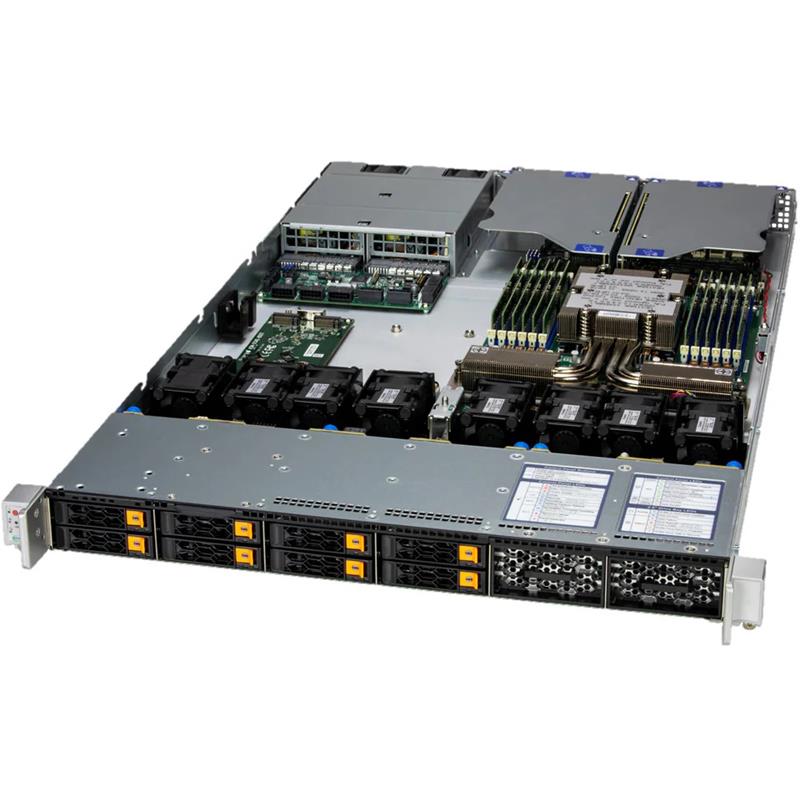

Supermicro AS-1116CS-TN CloudDC 1U Barebone Single AMD EPYC 9005/9004 Series Processors
• Virtualization
• HPC
• CDN, Edge Nodes
• Cloud Computing
• Data Center Optimized
• Storage Headnode
Barebone 1U Rackmount SuperServer, Support Single Processor, Supporting AMD EPYC 9005/9004 Series Processors, Core Count: Up to 192C/384T, Supports up to 500W TDP CPUs, Max GPU Count: Up to 2 single-width GPUs, CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect. Up to 3TB 6400MT/s ECC DDR5 RDIMM in 12 DIMM slots Chipset: System on Chip On-Board: 2x USB Ports, 1 VGA Port (Rear), 1 TPM header, Drive Bays / Storage: 8 Front Hot-swap 2.5in PCIe 5.0 NVMe/SAS/SATA Drive Bays, 2 M.2 PCIe 3.0 x2 NVMe Slots (M-key 2280 (default) 22110). Network Connectivity: 1 RJ45 1 GbE Dedicated BMC LAN Port, Optional Configuration For Power Supply - (CSE-MD101TS-R000NDP + H14SHM) - AS-1116CS-TN
1. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations Based on Modular DeNsity Optimized HPM Form Factor (M-DNO) Support DC-SCM module with OpenBMC
2. Single AMD EPYC™ 9005/9004 Series Processor
3. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
4. 2 PCIe 5.0 x16 FHHL slots
5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible) 1 RJ45 1 GbE Dedicated BMC LAN Port (DC-SCM)
6. 8 Hot-swap 2.5" NVMe/SATA/SAS drive bays Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive bays Optional RAID support via storage add-on card
7. Support up to 2 FHHL GPU accelerator cards
8. Dual 1000W / 2000W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1116CS-TN CloudDC 1U Barebone Single AMD EPYC 9005/9004 Series Processors
| Product SKUs | ||
| Product SKUs | AS -1116CS-TN | |
| Motherboard | ||
| Motherboard | Super H14SHM | |
| Processor | ||
| CPU | Single processor(s) | |
| AMD EPYC™ 9005/9004 Series Processors | ||
| Core Count | Up to 192C/384T | |
| Note | Supports up to 500W TDP CPUs | |
| GPU | ||
| Max GPU Count | Up to 2 single-width GPUs | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 12 DIMM slots/12 Channels | ||
| Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) | ||
| Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via AIOM | |
| View AOC Options | ||
| View AIOM Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB | 1 USB 2.0 Type-A port(Rear) | |
| 1 USB 3.2 Gen1 Type-A port(Rear) | ||
| Video | 1 VGA port(Rear) | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| ACPI 6.5 | ||
| Management | ||
| Software | KVM with dedicated LAN | |
| IPMI 2.0 | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Supermicro Thin-Agent Service (TAS) | ||
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| IPMIView | ||
| Power configurations | Power-on mode control for AC power loss recovery | |
| Power button override mechanism, | ||
| ACPI/APM Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-MD101TS-R000NDP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 29.4" (747 mm) | |
| Package | 8.1" (H) x 23.8" (W) x 40.6" (D) | |
| Weight | Net Weight: 34 lbs (15.4 kg) | |
| Gross Weight: 49 lbs (22.2 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | LAN1 activity | |
| LAN2 activity | ||
| Power status | ||
| HDD activity | ||
| System information | ||
| Power Failed LED | ||
| Buttons | Power On/Off button | |
| UID button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| CXL Support | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| View NVMe Options | ||
| Default: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| 8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| Option A: Total 12 bays 12 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| 12 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110) | ||
| System Cooling | ||
| Fans | 8 Counter-Rotating PWM 40x40x56mm Fan(s) | |
| Air Shroud | 1 Air Shroud | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 12 NVMe (Drives 0-11) | CBL-PWEX-1136-70 | 1 | MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS | |||
| 12 NVMe (Drives 0-11) | CBL-MCIO-1339M5R | $ 55.50 | 1 | MCIO x8 (STR to RA),39CM,32AWG,RoHS | ||
| 12 NVMe (Drives 0-11) | MCP-220-00178-0B | $ 24.50 | 4 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | ||
| 12 NVMe (Drives 0-11) | CBL-MCIO-1340M5-1 | $ 0.00 | 1 | MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS | ||
| 12 NVMe (Drives 0-11) | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF, | ||
| 12 NVMe (Drives 0-11) | CBL-MCIO-1226M5 | $ 0.00 | 1 | MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS | ||
| 12 NVMe (Drives 0-11) | CBL-MCIO-1245M5RE | 1 | [NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS | |||
| 12 NVMe (Drives 0-11) | CBL-MCIO-1330M5 | $ 0.00 | 2 | MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS | ||
| 12 SATA (Drives 0-11) | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS | ||
| 12 SATA (Drives 0-11) | CBL-MCIO-1255L4Y • | 2 | (MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS | |||
| 12 SATA (Drives 0-11) | MCP-220-00178-0B | $ 24.50 | 4 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | ||
| 12 SATA (Drives 0-11) | CBL-PWEX-1136-70 | 1 | MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS | |||
| 12 SATA (Drives 0-11) | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF, | ||
| 4 NVMe (Drives 8-11) | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF, | ||
| 4 NVMe (Drives 8-11) | CBL-MCIO-1226M5 | $ 0.00 | 1 | MCIO (x8 STR to x8 STR),26CM,85OHM,RoHS | ||
| 4 NVMe (Drives 8-11) | CBL-MCIO-1340M5-1 | $ 0.00 | 1 | MCIO x8 (STR to STR), semi-flat, 40cm,32AWG,RoHS | ||
| 4 NVMe (Drives 8-11) | MCP-220-00178-0B | $ 24.50 | 4 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | ||
| 4 NVMe (Drives 8-11) | CBL-PWEX-1136-70 | 1 | MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS | |||
| 4 SATA (Drives 8-11) | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF, | ||
| 4 SATA (Drives 8-11) | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS | ||
| 4 SATA (Drives 8-11) | CBL-MCIO-1255L4Y • | 1 | (MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS | |||
| 4 SATA (Drives 8-11) | MCP-220-00178-0B | $ 24.50 | 4 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | ||
| 4 SATA (Drives 8-11) | CBL-PWEX-1136-70 | 1 | MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS | |||
| 8 NVMe (Drives 0-7) | CBL-MCIO-1245M5RE | 1 | [NR] MCIO x8 (STR to RE),45cm,85OHM,RoHS | |||
| 8 NVMe (Drives 0-7) | MCP-220-11902-0B | $ 24.00 | 2 | HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS | ||
| 8 NVMe (Drives 0-7) | CBL-MCIO-1339M5R | $ 55.50 | 1 | MCIO x8 (STR to RA),39CM,32AWG,RoHS | ||
| 8 NVMe (Drives 0-7) | CBL-MCIO-1330M5 | $ 0.00 | 2 | MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS | ||
| 8 SATA (Drives 0-7) | MCP-220-11902-0B | $ 24.00 | 2 | HS119 Modular Bay Dummy Cover_1x2 2.5" Slim Drive Slot,RoHS | ||
| 8 SATA (Drives 0-7) | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS | ||
| 8 SATA (Drives 0-7) | CBL-MCIO-1255L4Y • | 1 | (MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS | |||
| CacheVault for Broadcom 3916/3908 | BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916) | 1 | SuperCap mounting bracket for PCIe location | |||
| CacheVault for Broadcom 3916/3908 | BTR-CVPM05 + MCP-240-21747-0N (For S3908/S3916) | 1 | SuperCap mounting bracket for AIOM location | |||
| Heat Sink Options | SNK-P2082PV-2 | $ 160.00 | 1 | 1U Passive EVAC CPU Heat Sink for AS -1116CS-TN | ||
| Heat Sink Options | SNK-P0082V | $ 99.50 | 1 | 1U Passive CPU VC Heat Sink for AMD Socket SP5 Processors | ||
| M.2 Control Card | AOC-SLG4-2H8M2 | $ 224.00 | 1 | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP | ||
| M.2 Option | CBL-NSKS-1240K5-E | 1 | M-PIC, KickStart 50p to 50p,40cm,G5,30AWG,RoHS | |||
| M.2 Option | AOM-DCM2-BOOT-P | 1 | DC-MHS M.2 Boot Board,2x 22110/2280 M.2 slots (M-key),P | |||
| Power Supply Options | PWS-1K04A-1R | $ 319.00 | 2 | CRPS: 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm) | ||
| Power Supply Options | PWS-2K09A-1R | $ 475.00 | 2 | CRPS: AC-DC 1U 2000W 80 Plus Titanium CRPS, forward airflow, W73.5 | ||
| Power Supply Options | PWS-1K21A-1R | 2 | M-CRPS: 1200W, Titanium efficiency, Redundant W73.5xH40xL185 mm PWS | |||
| Power Supply Options | PWS-1K61A-1R | $ 480.00 | 2 | M-CRPS: 1600W, Titanium efficiency, W73.5xH39/40xL185 mm, C-14 inlet | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD (-16DD/-32DD) + 1x CBL-SAST-1276F-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | AOC-S3916L-H16iR-32DD (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-100 | 1 | Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT (-16DD/-32DD) + 1x CBL-SAST-1276F-100 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | |||
| Storage Control Card and Cable(s) (HBA) | AOC-S3816L-L16IT (-16DD/-32DD) + 1x CBL-SAST-1276F-100 + 1x CBL-SAST-1265F-100 | 1 | Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | |||
| TPM security module | AOM-TPM-9672SCM-P | 1 | TPM 2.0 with Infineon SLB 9672 For SCM module,HF,RoHS |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
