  1. Products
  2. InnoDisk DEM28-B56IB1KWAQF-B051 Hard Drive 256GB NVMe PCIe x4 Lanes Generation 3.0 M.2 2280 Wide Temperature TLC 3TE4 Series

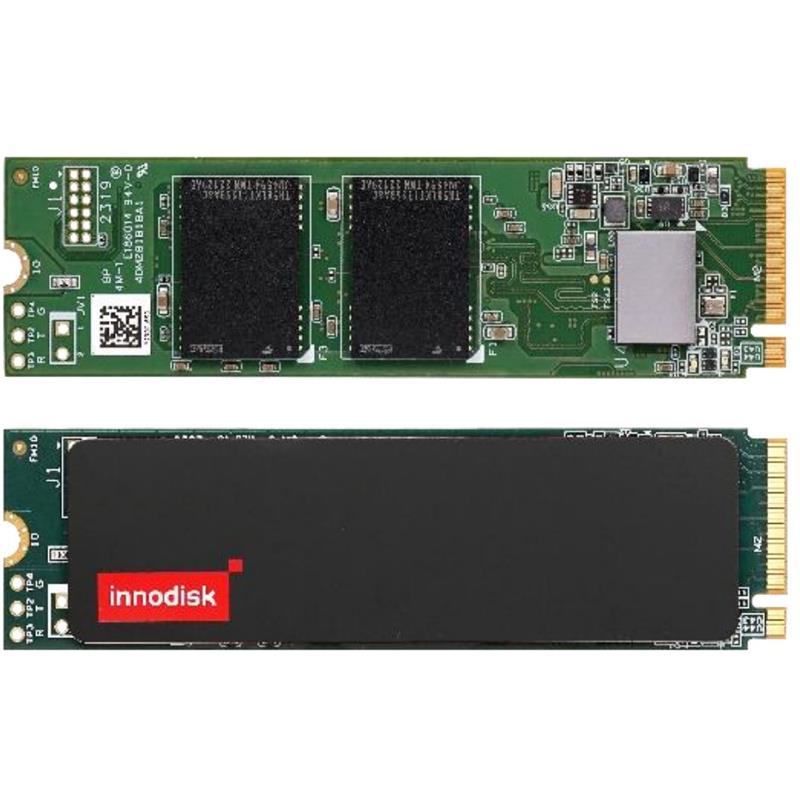

InnoDisk DEM28-B56IB1KWAQF-B051 Hard Drive 256GB NVMe PCIe x4 Lanes Generation 3.0 M.2 2280 Wide Temperature TLC 3TE4 Series

InnoDisk DEM28-B56IB1KWAQF-B051 Hard Drive 256GB NVMe PCIe x4 Lanes Generation 3.0 M.2 2280 Wide Temperature TLC 3TE4 Series

  • Features a DRAM-less architecture with an anti-vibration mechanical design

  • Integrated with iPower Guard Protection and supports a wide operating temperature

  • Powered by PCIe Gen 3 x4 and NVMe 1.3 interface, delivering fast and efficient data transfer

  • Dynamic Thermal Throttling technology to ensure consistent performance and protect against overheating

The Hard Drive Features 256GB Storage Capacity With NVMe Solid State Drive (SSD) Built With PCIe Generation 3.0 x4 Interface, Designed in M.2-inch Form Factor 22mm x 80mm. Triple-Level Cell (TLC) Technology, Wide Temperature Optimized For IoT and Embedded Applications. InnoDisk 3TE4 Series - OEM

$ 70.00$ 70.0070.0USD

$ 70.00

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    BORN FOR SUPERIOR PERFORMANCE


    Innodisk M.2 (P80) 3TE4 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P80) 3TE4 supports PCIe Gen 3 x4 and it is compliant with NVMe 1.3 providing excellent top and outstanding sustained performance. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.


    Features


    • Powered by PCIe Gen 3 x4 and NVMe 1.3

    • DRAM-less solution

    • Anti-vibration mechanical design

    • Dynamic Thermal Throttling

    • iPower Guard Protection

    • Supports a wide temperature range from -40°C to 85°C

    Extra Specifications for InnoDisk DEM28-B56IB1KWAQF-B051 Hard Drive 256GB NVMe PCIe x4 Lanes Generation 3.0 M.2 2280 Wide Temperature TLC 3TE4 Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity256GB
    InterfacePCIe Gen 3 x4
    Form FactorM.2 (22x80)
    NAND Flash Memory Type3D TLC NAND
    Dimensions (WxDxH)S/T: 22.0 x 80.0 x 3.5 and with the heat-spreading copper layer: 22.0 x 80.0 x 4.1
    Power
    Power Consumption4.0W
    Environmental Parameters
    Operating Temperature-40C~+85C
    Miscellaneous
    Environmental ComplianceVibration: 20G@[7 ~ 2000Hz]
    Shock: 1500G@0.5ms
    MTBF3 million hours

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
