| Product SKUs |

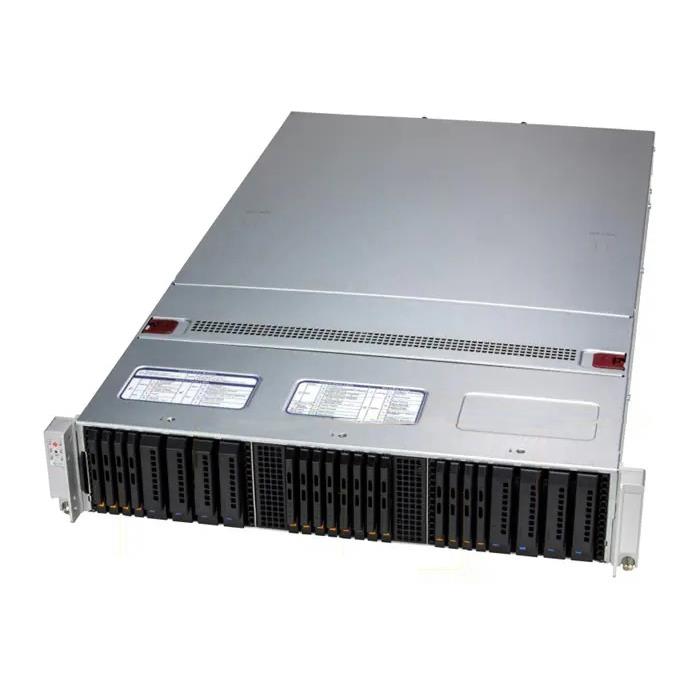

| Product SKUs | SSG-222B-NE3X24R |
| Motherboard |

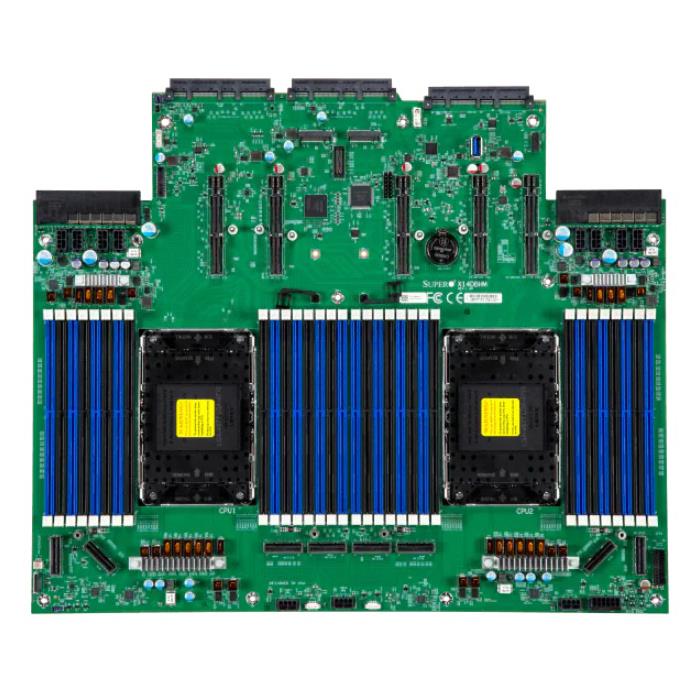

| Motherboard | Super X14DBHM |
| Processor |
| CPU | Dual Socket E2 (LGA-4710) |
| Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| P-cores: Up to 86C/172T; Up to 336MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 2 double-width GPUs |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: L40 |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 32 DIMM slots/2 Channels |
| Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM |
| Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| View AOC Options |
| View AIOM Options |

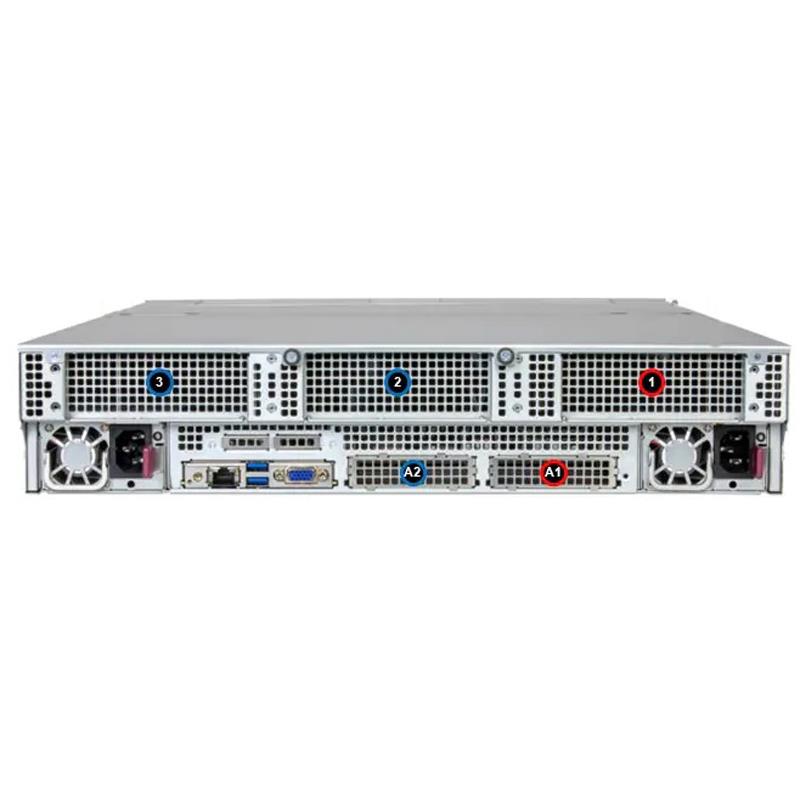

| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |

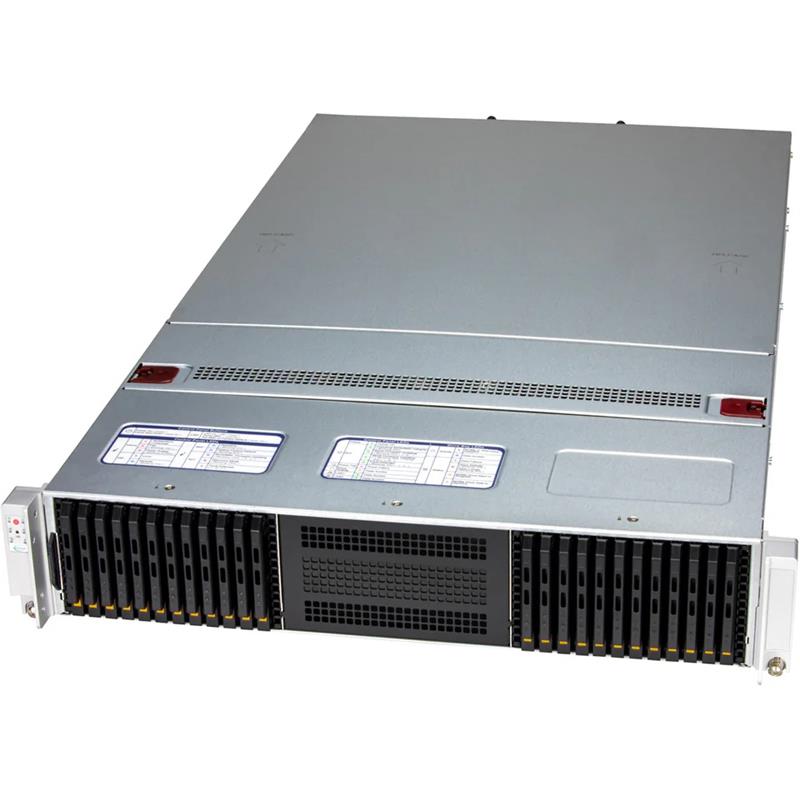

| Form Factor | 2U Rackmount |
| Model | CSE-246E3-R2K09P |
| Dimensions and Weight |
| Height | 3.47" (88 mm) |
| Width | 17.25" (438 mm) |
| Depth | 30.7" (780 mm) |
| Package | 9.4" (H) x 23.5" (W) x 43.2" (D) |
| Weight | Gross Weight: 83.78 lbs (38 kg) |
| Net Weight: 61.73 lbs (28 kg) |
| Available Color | Silver |
| Front Panel |
| LED | LAN1 activity |
| Power status |
| HDD activity |
| System information (overheat/UID) |
| Power Fail |
| LAN2 acticity |
| Buttons | UID button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| CXL Support |
| Drive Bays / Storage |
| Drive Bays Configuration | View NVMe Options |
| Default: Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays |
| 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays |
| Option A: Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays |

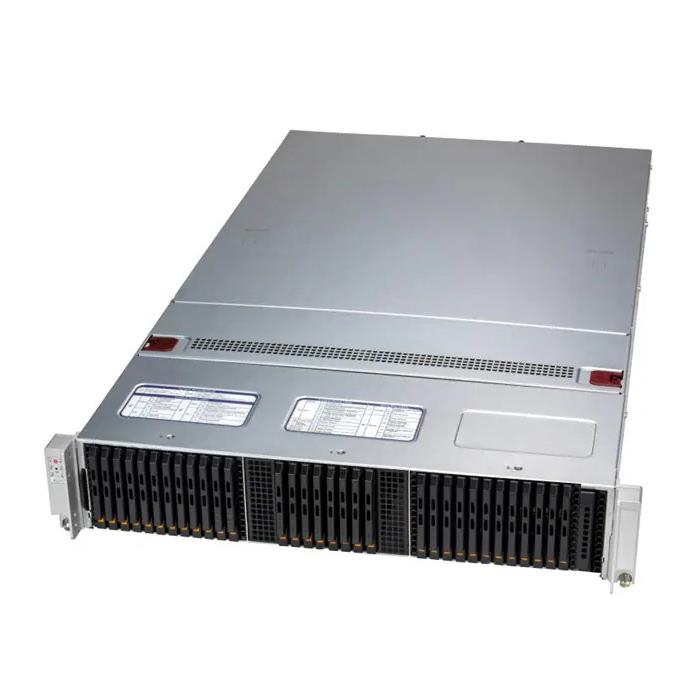

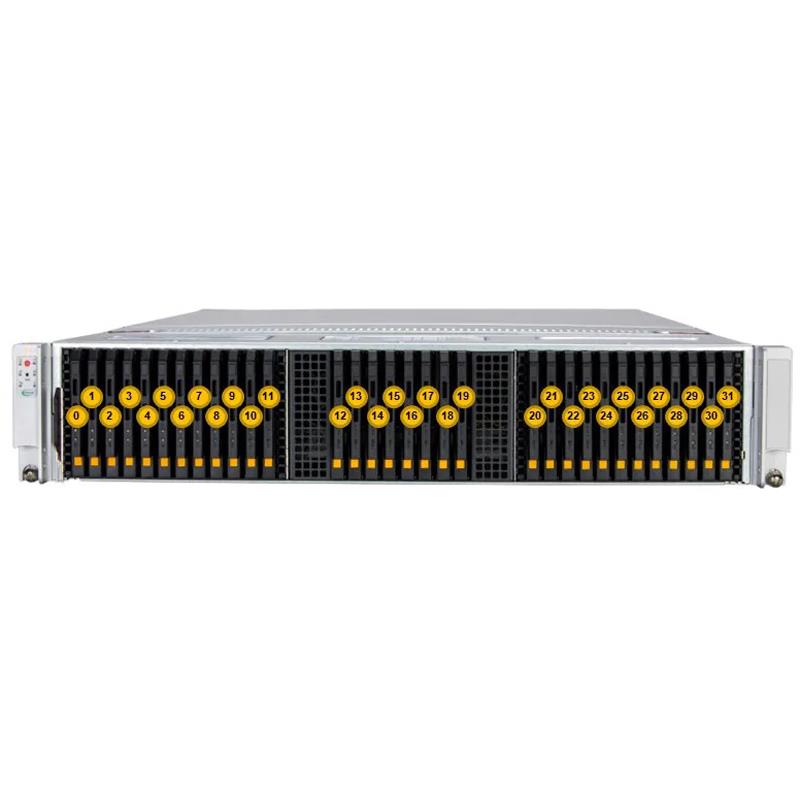

| Option B: Total 32 bays 32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays |
| 32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays |

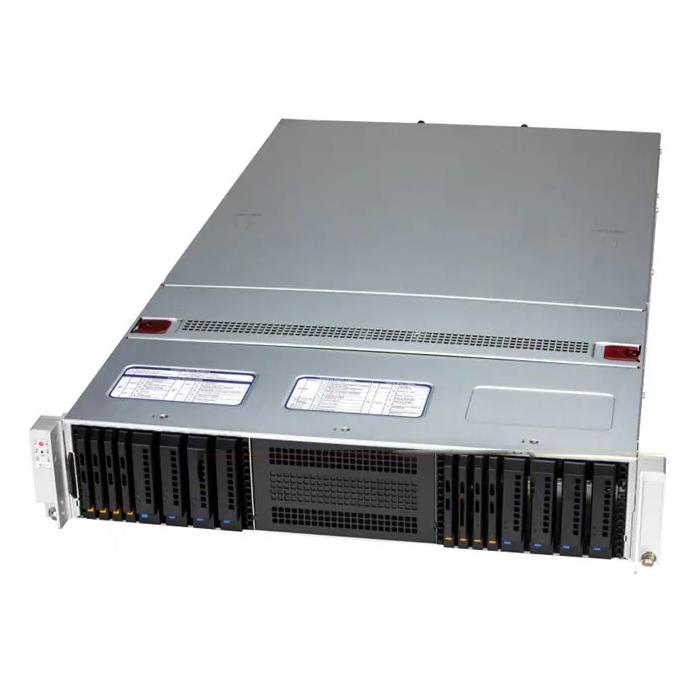

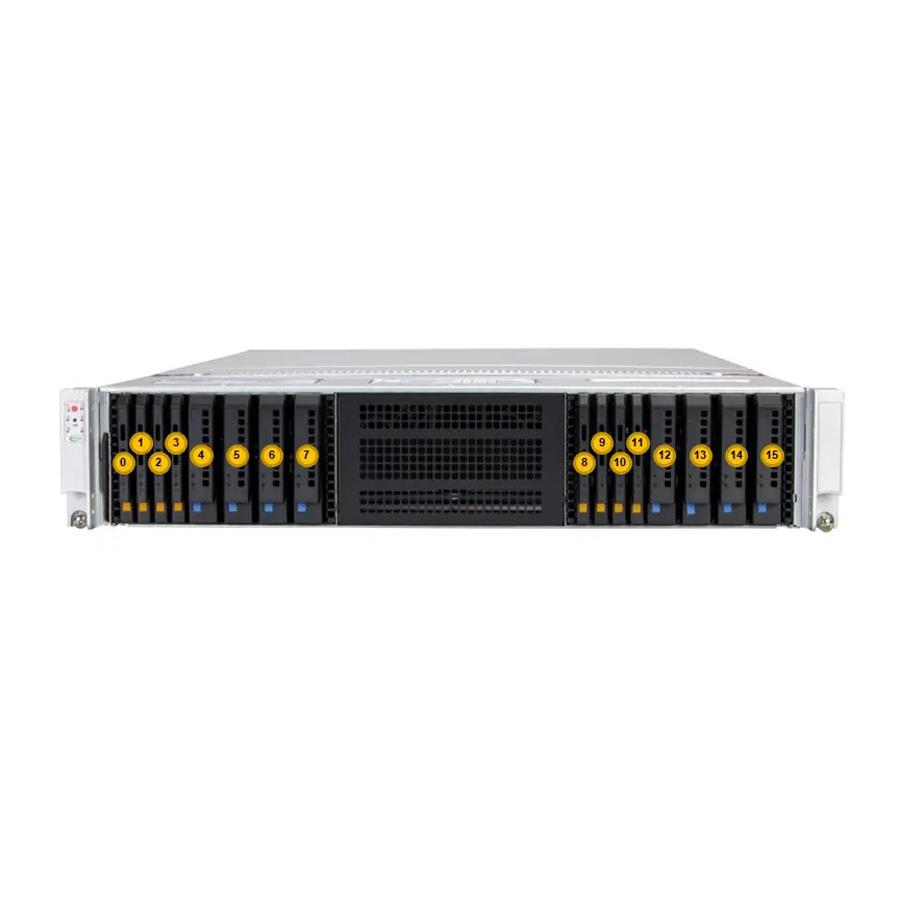

| Option C: Total 16 bays 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3* drive bays |
| 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays |
| 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3* drive bays |
| (*CXL Type 3/NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | View M.2 Options |
| 2 M.2 NVMe slots (M-key 2280/22110) |
| System Cooling |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
