| GPU |
| Max GPU Count | Up to 1 double-width or 1 single-width GPU |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Supported GPU | NVIDIA PCIe: L4 |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | Slot Count: 4 DIMM slots/1 Channels |
| Max Memory (1DPC): Up to 128GB/512GB 4800MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Intel® I210-IT |
| 2 QSFP28 100GbE with Intel® SoC |
| Input / Output |
| LAN | 1 RJ45 1 GbE LAN port (Intel® I210-IT) (IPMI shared on LAN port 1) |
| 2 QSFP28 100 GbE LAN ports (Intel® SOC) |
| USB | 2 USB 2.0 ports(header) |
| 2 USB 3.0 Type-A ports(Front) |
| Video | 1 VGA port |
| Serial | 1 COM port(Header) |
| TPM | 1 TPM header |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | Plug and Play (PnP) |
| ACPI 6.5 |
| UEFI 2.9 |
| PCI F/W 3.3 |
| SMBIOS 3.7 or later |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Plug-ins for 3rd Party Software |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | CPU thermal trip support, PEPI Monitoring for CPU and chassis environment |
| Other Features | WOL,RoHS, Control of power-on for recovery from AC power loss, ACPI power management |
| Voltage | Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD activity |
| System information |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 2 bays 2 internal fixed 2.5" PCIe 4.0 x4 NVMe drive bays |
| 2 internal fixed 2.5" PCIe 4.0 x4 NVMe drive bays |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) |
| Product SKUs |

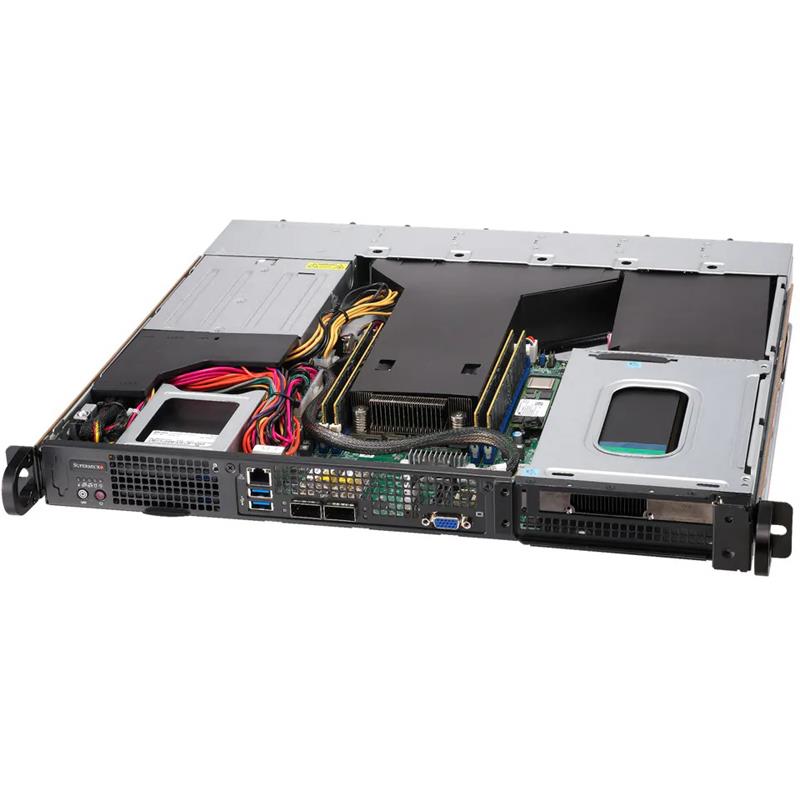

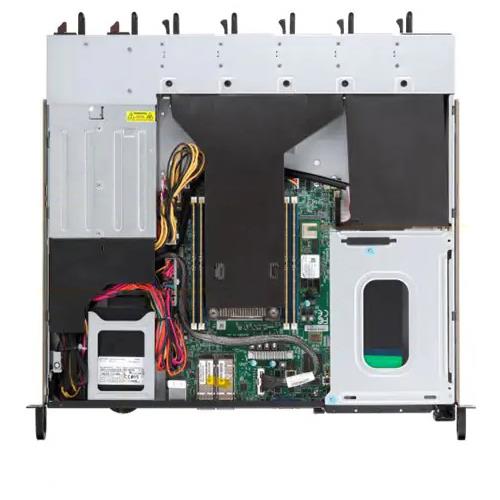

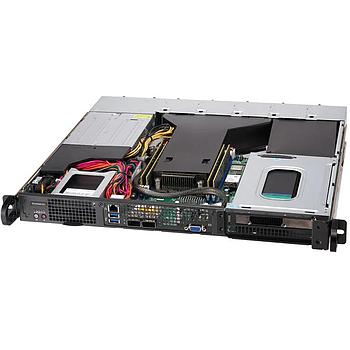

| Product SKUs | SYS-112D-20C-FN3P |
| Motherboard |
| Motherboard | Super X14SDV-20C-SP3F |
| Processor |
| CPU | Single processor(s) |
| Note | Supports up to 145W TDP CPUs (Air Cooled) |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-515M-R000NP2 |
| Dimensions and Weight |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 15.7" (399 mm) |
| Package | 7.9" (H) x 26.7" (W) x 23.8" (D) |
| Weight | Net Weight: 18 lbs (8.16 kg) |
| Gross Weight: 29 lbs (13.15 kg) |
| Available Color | Silver |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| System Cooling |
| Fans | 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 35°C (32°F to 95°F) |
