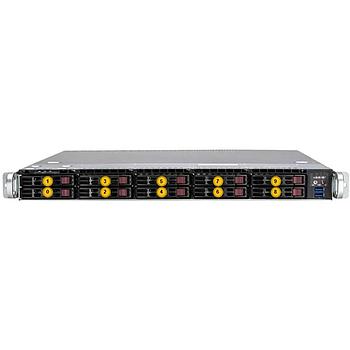

- Supermicro SYS-112B-WR WIO 1U Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
Supermicro SYS-112B-WR WIO 1U Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
• Virtualization
• Cloud Computing
• Data Center Optimized
• Database/Storage
• Storage Headnode
• Web Cache, CDN, Video Streaming
• AI Inference
• Networking Security Appliance

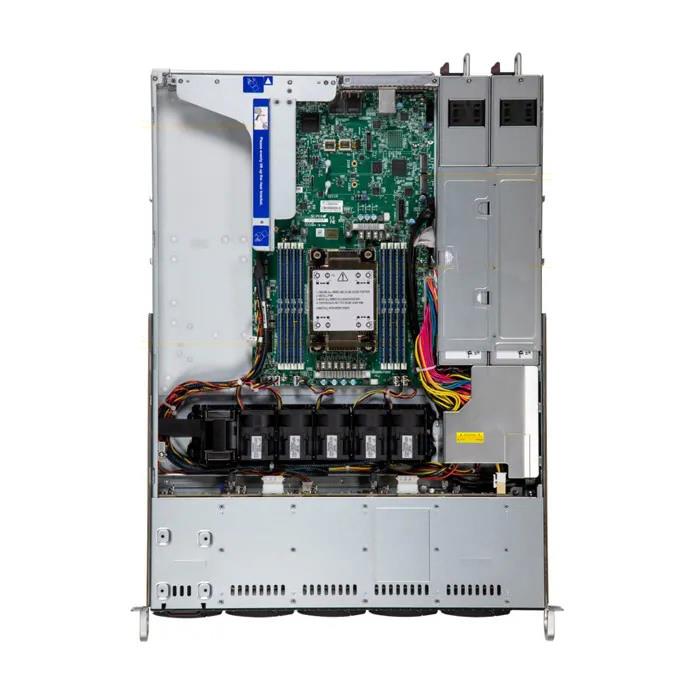

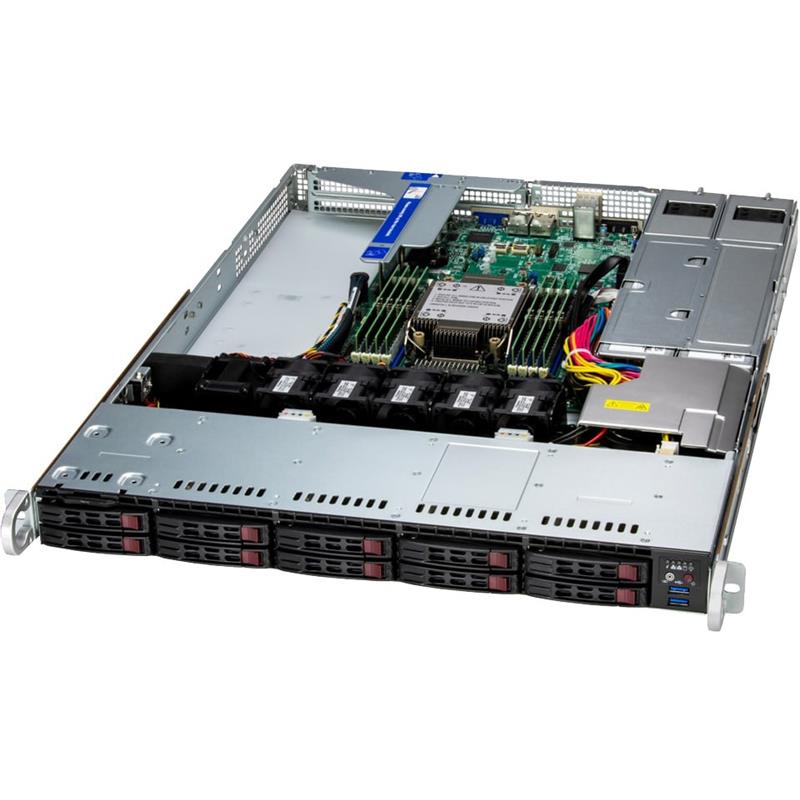

Barebone 1U Rackmount SuperServer, Supports Single Socket E2 (LGA-4710) For Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores. P-cores: Up to 86C/172T, Up to 336MB Cache, E-cores: Up to 144C/144T, Up to 108MB Cache. Supports up to 350W TDP CPUs (Air Cooled). Up to 2TB 6400MT/s ECC DDR5 RDIMM, in 8 DIMM slots, Chipset: System on Chip, On-Board: SATA (6Gbps), NVMe. Drive Bays / Storage: 8 Front Hot-swap 2.5in SAS/SATA Drive Bays, 2 M.2 PCIe 5.0 x2 NVMe Slots (M-key 2280/22110; VROC Required for RAID). Network Connectivity: 2 RJ45 1GbE LAN Ports, 1 RJ45 1GbE Dedicated BMC LAN Port (IPMI shared on LAN port 1). 2x 860W Power Supplies - (CSE-116BTS-R000WNP + Super X14SBW-F) - SYS-112B-WR
1. WIO systems offer flexible I/O configurations in a cost-effective architecture to deliver truly optimized systems for specific enterprise requirements.
2. Single Intel® Xeon® 6 Processor
3. 8 DIMM slots supporting up to 2TB of memory
4. Tool-less, Top-loading riser design support 3 PCIe 5.0 Expansion (2x FHFL + 1x LP).
5. Native SATA drives supported, with option for up to 8 PCIe 5.0 NVMe drives or 10 SAS drives.
6. Trusted Platform Module (TPM) 2.0 onboard.
Extra Specifications for Supermicro SYS-112B-WR WIO 1U Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or 6700 Series Processors With E-cores
| Product SKUs | ||
| Product SKUs | SYS-112B-WR | |
| Motherboard | ||

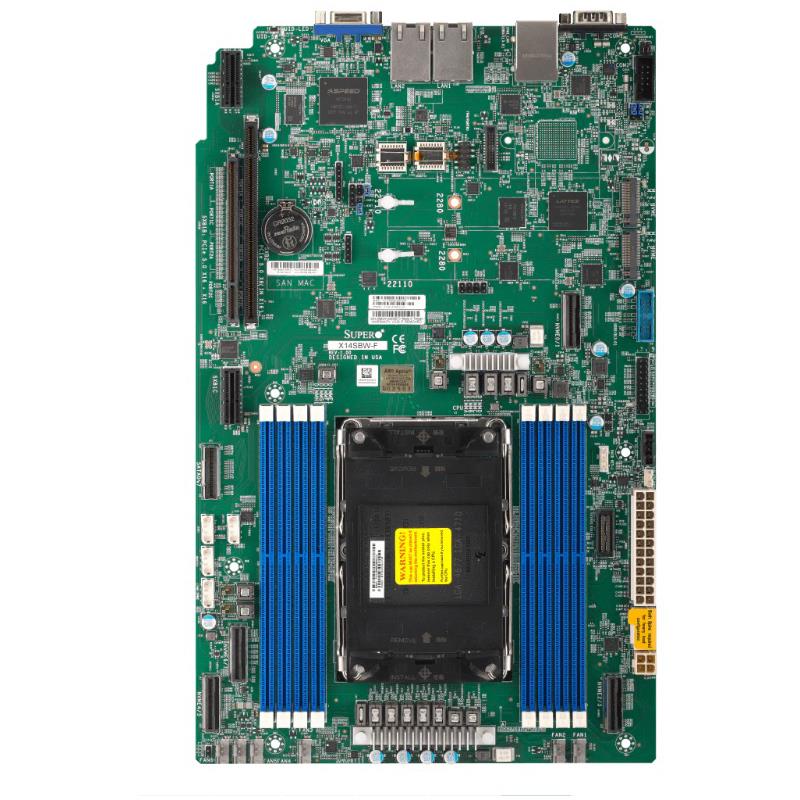

| Motherboard | Super X14SBW-F | |
| Processor | ||
| CPU | Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores | |
| Single Socket E2 (LGA-4710) | ||
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache | |
| E-cores: Up to 144C/144T; Up to 108MB Cache | ||
| Note | Supports up to 350W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 8 DIMM slots/8 Channels | ||
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) | |
| NVMe | View NVMe Options | |
| NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) | ||
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 1GbE with Intel® I210 | ||

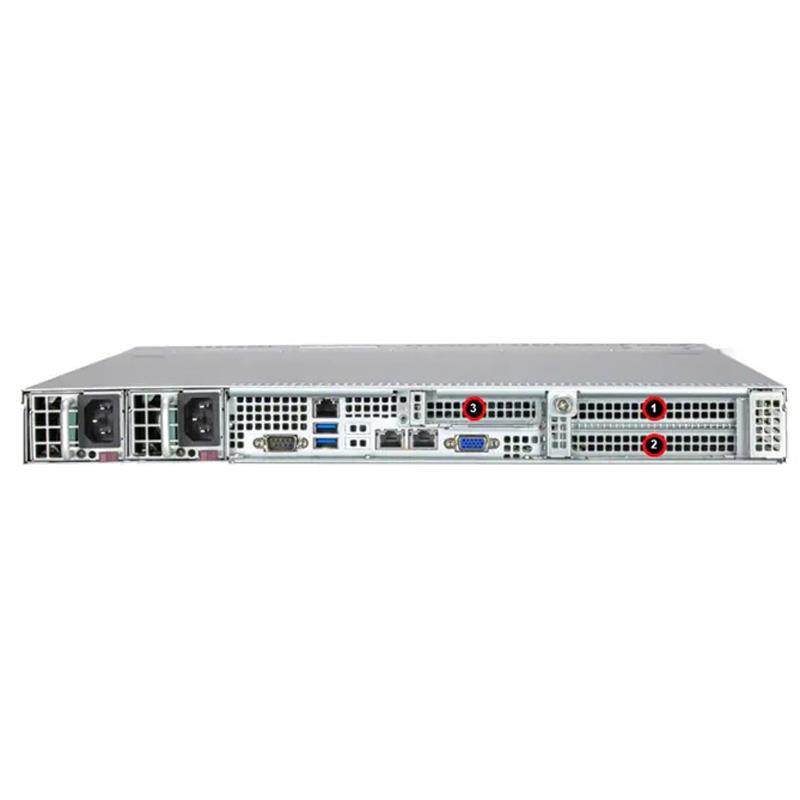

| Input / Output | ||
| LAN | 2 RJ45 1 GbE LAN ports | |
| 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) | ||
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) | |
| 2 USB 3.2 Gen1 Type-A ports(front) | ||
| Video | 1 VGA port | |
| Serial | 1 COM port(Rear) | |
| 1 COM port(Header) | ||
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Power configurations | ACPI/APM Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 8 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-116BTS-R000WNP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 23.5" (597 mm) | |
| Package | 7.75" (H) x 23.5" (W) x 31.5" (D) | |
| Weight | Net Weight: 21 lbs (9.53 kg) | |
| Gross Weight: 33.5 lbs (15.2 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| Unit Identification (UID) button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| View NVMe Options | ||

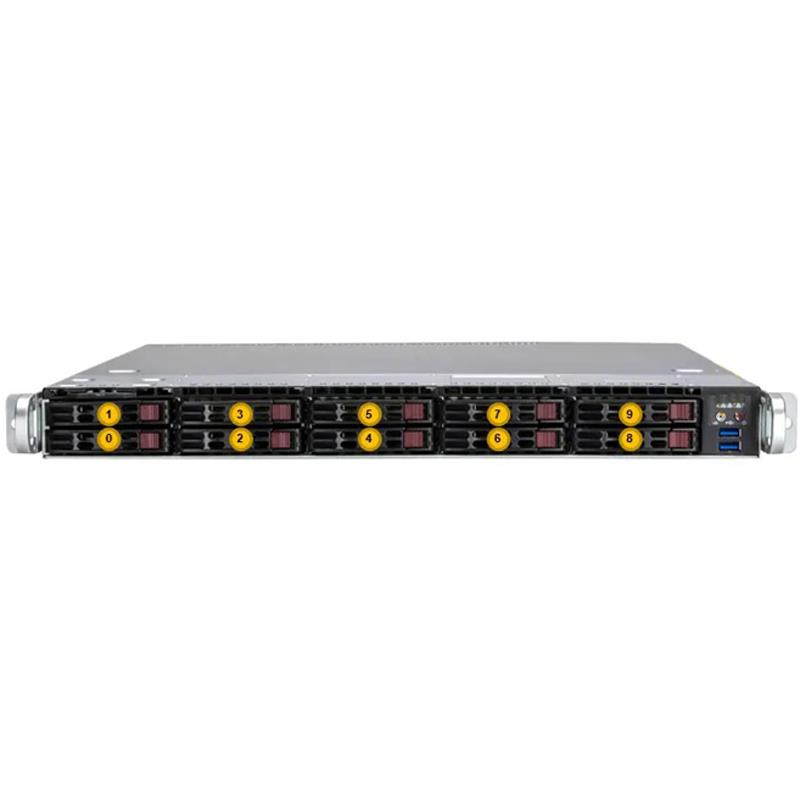

| Default: Total 8 bays 8 front hot-swap 2.5" SAS*/SATA drive bays | ||
| 8 front hot-swap 2.5" SAS*/SATA drive bays | ||
| Option A: Total 10 bays 2 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 8 front hot-swap 2.5" SAS*/SATA drive bays | ||
| 2 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays | ||
| Option B: Total 10 bays 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 6 front hot-swap 2.5" SAS*/SATA drive bays | ||
| 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays | ||
| 6 front hot-swap 2.5" SAS*/SATA drive bays | ||
| Option C: Total 10 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 2 front hot-swap 2.5" SAS*/SATA drive bays | ||
| 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays | ||
| 2 front hot-swap 2.5" SAS*/SATA drive bays | ||
| Option D: Total 10 bays 10 front hot-swap 2.5" SAS* drive bays | ||
| 10 front hot-swap 2.5" SAS* drive bays | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID) | ||
| System Cooling | ||
| Fans | 1 AOC cooling Fan(s) (optional) | |
| 5 middle cooling PWM 40x40x56mm Fan(s) | ||
| Air Shroud | 1 CPU Air Shroud | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| CacheVault | BTR-CV3916-1U1 (For S3908/S3916) | 1 | SuperCap kit mounting in 1U 40x56 fan tray | |||
| CacheVault | BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916) | 1 | SuperCap mounting bracket for PCIe location | |||
| Cooling Fan | FAN-0163L4 | $ 34.00 | 1 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | ||
| Front Bezel | MCP-210-11603-0B | $ 49.50 | 1 | Black Front Bezel | ||
| Intel VROC RAID Key for NVMe | AOC-VROCPREMOD | $ 347.50 | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 | ||
| Intel VROC RAID Key for NVMe | AOC-VROCSTNMOD | $ 178.00 | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | ||
| NVMe Cable (Drive Bay 0-1) | CBL-MCIO-1265M5 | $ 0.00 | 1 | MCIO (x8 to x8) STR,65CM,85 OHM | ||
| NVMe Cable (Drive Bay 2-5) | CBL-MCIO-1340M5-1 | $ 0.00 | 2 | MCIO (x8 to x8) STR,26CM,85 OHM | ||
| NVMe Cable (Drive Bay 6-7) | CBL-MCIO-1250M5-Z | $ 57.00 | 1 | MCIO (x8 to x8) STR,40CM,85 OHM | ||
| NVMe Cable (for 8 SATA + 2 NVMe config only) | CBL-MCIO-1218M5 | $ 61.00 | 1 | MCIO (x8 to x8) STR,40CM,LNRV,85 OHM | ||
| NVMe Drive Tray(s) | MCP-220-00167-0B | $ 29.00 | 8 | Tool-less Hot-swap Gen-3 NVMe drive tray, Orange tab, Black | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Software | SFT-SDDC-SINGLE | $ 306.00 | 1 | SuperCloud Composer (per node license) | ||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) | AOC-S3916L-H16iR-32DD + 1x CBL-SAST-1265F-100 | 1 | Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT | $ 401.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | ||
| Storage Control Card and Cable(s) (HBA) | AOC-S3816L-L16IT + 1x CBL-SAST-1265F-100 | 1 | Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA |
