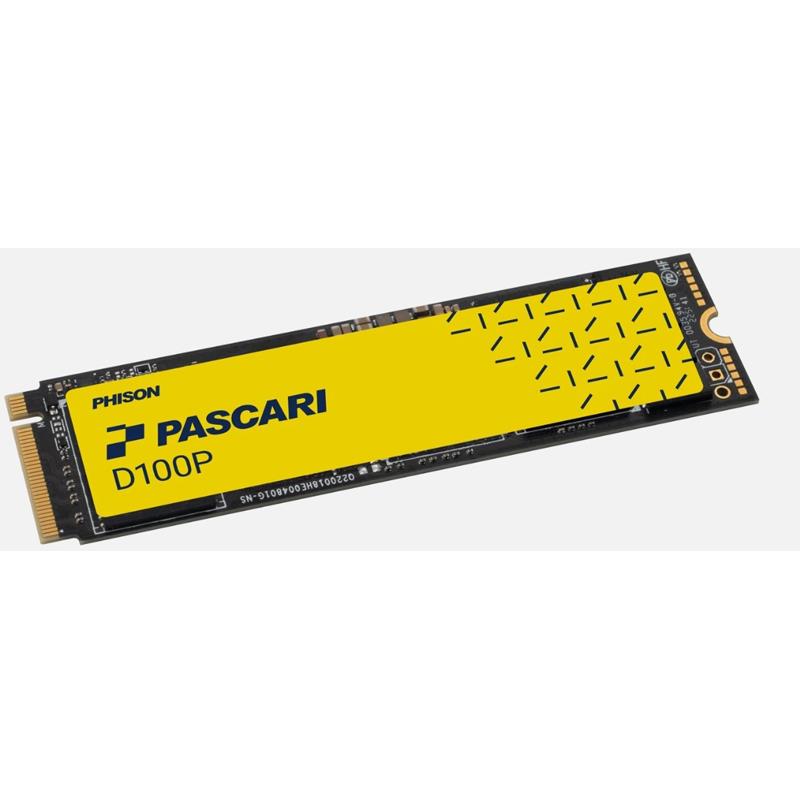

  2. Phison HDS-PMN-D1802K480GP0 Hard Drive 480GB NVMe PCIe x4 Lanes Generation 4.0 M.2 2280 3D TLC 1DWPD D100P Series
Phison HDS-PMN-D1802K480GP0 Hard Drive 480GB NVMe PCIe x4 Lanes Generation 4.0 M.2 2280 3D TLC 1DWPD D100P Series

Phison HDS-PMN-D1802K480GP0 Hard Drive 480GB NVMe PCIe x4 Lanes Generation 4.0 M.2 2280 3D TLC 1DWPD D100P Series

  • Supports Pyrite, AES256, SHA512, and RSA4096 for advanced data protection and encryption

  • Optimized for PCIe Gen4x4 with NVMe 1.4, and fully backward compatible with Gen3 M.2 2280 slots

  • Built on TSMC’s 12nm process, the D100 delivers top-tier PCIe Gen4x4 performance with low latency

  • Phison’s 4th Gen LDPC ECC ensures reliable data integrity and protection against flash memory errors

The Hard Drive Features 480GB Storage Capacity With NVMe Solid State Drive (SSD). Built With PCIe Generation 4.0 x4 Interface, Designed in M.2-inch Form Factor 22mm x 80mm. Triple-Level Cell (TLC) Technology, With a Durability Rating Of 1DWPD. Optimized For Data Center Applications. Phison D100P Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    Phison 4th Generation LDPC ECC Engine

    While flash memory cells deteriorate with use and can generate stored data bit errors, the D100 utilizes Phison’s proprietary Low Density Parity Check error-correcting code algorithm to ensure robust data entry and extraction, as well as protection from internal corruption.


    Market-leading Performance

    Manufactured using TSMC’s 12nm process technology, the D100 is optimized for a PCIe Gen4x4 interface, enabling SSDs with maximized bandwidths and link efficiency. Paired with state-of-the-art 3D NAND flash memory chips, the D100 handles application payloads immaculately with minimal latency.


    PCIe Gen4x4 and Backward Compatibility

    The D100 SSD is designed with the PCIe Gen4x4 interface and the NVMe 1.4 command specification, making it an excellent performance upgrade for PCIe Gen3 and Gen4 M.2 2280 slots


    Security Features

    The D100 supports the latest security and encryption standards defined by Pyrite, AES256, SHA512, and RSA4096.

    Extra Specifications for Phison HDS-PMN-D1802K480GP0 Hard Drive 480GB NVMe PCIe x4 Lanes Generation 4.0 M.2 2280 3D TLC 1DWPD D100P Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity480GB
    Form FactorM.2 2280
    InterfacePCIe Gen4 x4
    NAND Flash Memory Type3D TLC NAND
    Performance
    Internal Data Rate6000 MB/s (Read) / 700 MB/s (Write)
    4KB Random Read2450K IOPS
    4KB Random Write25K IOPS
    Endurance DWPD1DWPD
    Average Latency4K Random Read: 75 us
    4K Random Write: 40 us
    Specifications
    Power Consumption (Max):8.5 W
    Power
    Power Consumption (Idle)4 W
    Reliability
    Non-Recoverable Errors1 in 1017
    Environmental Parameters
    Operating TemperatureOperating Temperature: 0°C - 70°C
    Non-Operating Temperature: -40°C - 85°C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:PHISON
    Type of Support:FULL
    Phone No.:(425) 296-3177
    URL:Click here for Manufacturer Website
