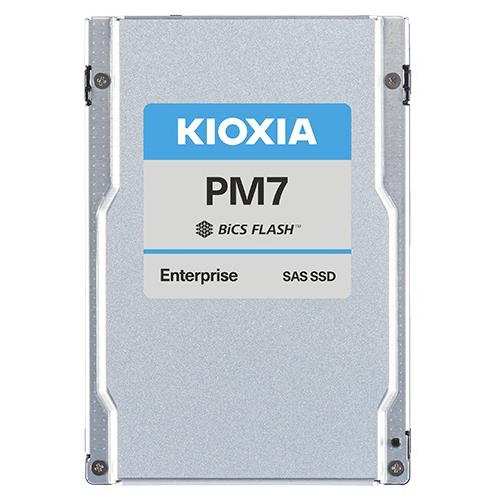

  2. Kioxia KPM7XRUG1T92 1.92TB SAS Solid-State Drive 24Gb/s 2.5in x 15mm SIE - PM7-R Series
Kioxia KPM7XRUG1T92 1.92TB SAS Solid-State Drive 24Gb/s 2.5in x 15mm SIE - PM7-R Series

Kioxia KPM7XRUG1T92 1.92TB SAS Solid-State Drive 24Gb/s 2.5in x 15mm SIE - PM7-R Series

  • 24G SAS interface with single/dual-port

  • Optimized for read-intensive applications

  • 1 DWPD with 100 % Random Write Workload

  • Data warehousing, Streaming Media Applications

The SAS Solid-State Drive Features 1.92TB Storage Capacity. SAS 24 Gb/s 2.5in x 15mm Optimized For Read Intensive Applications, Sanitize Instant Erase (SIE) SCEF BiCS FLASH TLC 1.0DWPD PM7-R Series

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    Enterprise SAS SSD SAS SSD 2.5-inch


    PM7-R Series 24G SAS Enterprise SSD is optimized for read-intensive applications, including web services, data warehousing, streaming media, and video on demand. The series provides high levels of performance, reliability, and endurance, and is designed to minimize total cost of ownership.


    Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day).

    Extra Specifications for Kioxia KPM7XRUG1T92 1.92TB SAS Solid-State Drive 24Gb/s 2.5in x 15mm SIE - PM7-R Series

    Main Specifications
    Device TypeSolid state drive - internal
    Capacity1.92TB
    Form Factor2.5 in, 15mm
    InterfaceSAS 24.0 Gbps
    Interface Speed22.5 Gbit/s, 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s
    NAND Flash Memory TypeBiCS FLASH TLC
    Weight150 g Max
    Dimensions (WxDxH)Height: 15.0mm + 0, - 0.5mm, Width: 69.85mm ± 0.25mm, length: 100.45mm Max
    Performance
    Read4200 MB/s
    Write3400 MB/s
    4KB Random Read720K IOPS
    4KB Random Write155K IOPS
    Endurance DWPD1DWPD
    Power
    Power Consumption5 W typ
    Miscellaneous
    MTBF2,500,000 hours
    Package TypeOEM, Tray
    Environmental
    Operating EnvironmentTemperature (Operating): 0 °C to 70 °C
    Humidity (Operating): 5 % R.H. to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 G } ( Peak, 5 to 800 Hz )
    Shock (Operating): 9.8 km/s2 { 1,000 G } ( Peak, 0.5 ms )

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
