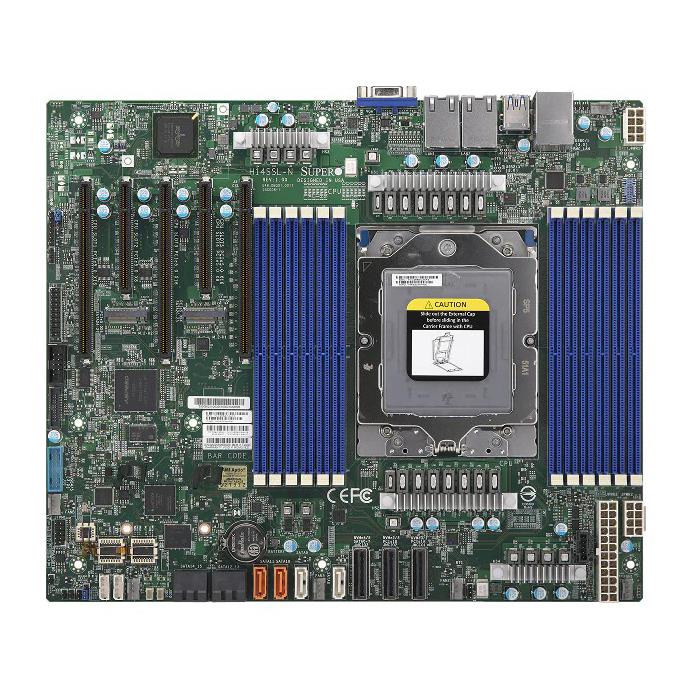

Supermicro H14SSL-N Mainstream Server Board ATX Single Socket SP5 AMD EPYC 9005 Series Processors

AMD EPYC 9005 series processors for high performance
Two PCIe 4.0 x4 M.2 slots (2280, 22110) for fast storage options
Supports up to 12 DDR5 DIMM slots (1DPC) at speeds up to 6400MT/s
Includes 3 PCIe 5.0 x16 and 2 PCIe 5.0 x8 slots for advanced expansion

Motherboard ATX Support Single Socket SP5, Supporting AMD EPYC 9005 Series Processors, Core Count: Up to 192C/384T, Supports up to 500W TDP CPUs. Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM in 12 DIMM Slots, Chipset: System on Chip. On-Board: SATA3, ASPEED AST2600 BMC Graphics. LAN Ports: Dual LAN with Broadcom BCM57416 10GBase-T, Others: 6 USB Ports, 1 VGA Port, 1 COM Port (header), 1 TPM Header, 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid Port, 2 MCIO (PCIe 5.0 x8/SATA3) Port. Includes 3 PCIe 5.0 x16 (in x16) Slots, 2 PCIe 5.0 x8 Slots. 2 M.2 PCIe 4.0 x4 SATA Slots (M-key 2280/22110) - (MBD-H14SSL-N)

Key Features

AMD EPYC 9005 series Processors
System on Chip
Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for details)
3 PCIe 5.0 x162 PCIe 5.0 x8
Up to 6 USB 3.0 ports(4 rear + 2 via header)
8 SATA3
ASPEED AST2600 BMC graphics
6 PWM 4-pin Fans with tachometer status monitoring
M.2 Interface: 2 PCIe 4.0 x4M.2 Form Factor: 2280, 22110

Extra Specifications for Supermicro H14SSL-N Mainstream Server Board ATX Single Socket SP5 AMD EPYC 9005 Series Processors

Main Specifications
Device Type	Mainstream Server Board
Form Factor	ATX
Dimensions (WxDxH)	12" x 10.1" (30.48cm x 25.65cm)
Processor
Compatible Processors	AMD EPYC 9005 Series Processors
Compatible Socket	Single Socket SP5
Number of Cores	Up to 192C/384T
Miscellaneous
Note	Supports up to 500W TDP CPUs
System Memory
Memory Capacity	Slot Count: 12 DIMM Slots, Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes	RDIMM/3DS RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors, Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	System on Chip
Network Controllers	Dual LAN with Broadcom BCM5720 1GBase-T
TPM	1 TPM Header
Others	1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s), 2 MCIO (PCIe 5.0 x8/SATA3) port(s)
Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB(s)	2 USB 3 port(s) (Header), 4 USB 3 port(s)
Video Output	1 VGA port(s)
Serial Port / Headers	1 COM port(s) (header)
Expansion / Connectivity
Expansion Slots Total (Free)	3 PCIe 5.0 x16 (in x16) slots, 2 PCIe 5.0 x8 slots
M.2	2 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110)
Management
Software	SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software
Security
Hardware	Trusted Platform Module (TPM) 2.0
Memory
Voltage	+12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature
PC Health Monitoring
LED	BMC/IPMI Heartbeat LED, UID/remote UID LED
FAN	6x 4-pin fan headers (up to 6 fans)
Other Features	RoT
Parts List
I/O Shield	1x MCP-260-00073-0N
I/O Cables	6x CBL-0044L

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
