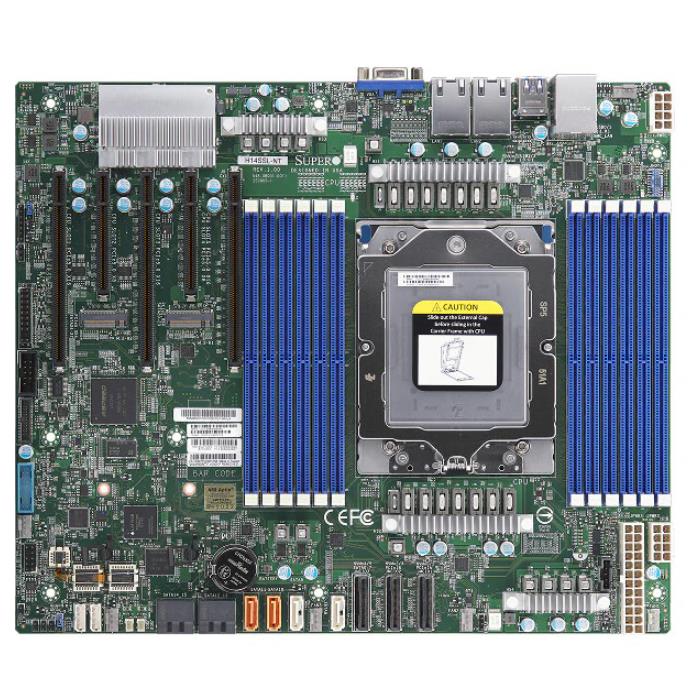

Supermicro H14SSL-NT UP Mainstream Server Board ATX Single Socket SP5 AMD EPYC 9005 Series Processors

Supermicro H14SSL-NT UP Mainstream Server Board ATX Single Socket SP5 AMD EPYC 9005 Series Processors

  • Supports 12 DDR5 DIMMs (1DPC) up to 6400MT/s

  • AMD EPYC 9005 series processors for strong performance

  • Equipped with dual 10GBase-T LAN ports using Broadcom BCM57416

  • Includes two PCIe 4.0 x4 M.2 slots compatible with 2280 and 22110 form factors

Motherboard ATX Support Single Socket SP5, Supporting AMD EPYC 9005 Series Processors, Core Count: Up to 192C/384T, Supports up to 500W TDP CPUs. Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM in 12 DIMM Slots, Chipset: System on Chip. On-Board: SATA3, ASPEED AST2600 BMC Graphics. LAN Ports: Dual LAN with Broadcom BCM57416 10GBase-T, Others: 6 USB Ports, 1 VGA Port, 1 COM Port (header), 1 TPM Header, 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid Port, 2 MCIO (PCIe 5.0 x8/SATA3) Port. Includes 3 PCIe 5.0 x16 (in x16) slots, 2 PCIe 5.0 x8 slots. 2 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110) - (MBD-H14SSL-NT)

$ 775.50$ 775.50775.5USD

$ 775.50

Option not available

PreOrder
3 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Key Features


    • AMD EPYC 9005 series Processors

    • System on Chip

    • Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)

    • 3 PCIe 5.0 x162 PCIe 5.0 x8

    • 2x 10GBase-T LAN Ports via Broadcom BCM57416

    • Up to 6 USB 3.0 ports(4 rear + 2 via header)

    • 8 SATA3

    • ASPEED AST2600 BMC graphics

    • 6 PWM 4-pin Fans with tachometer status monitoring

    • M.2 Interface: 2 PCIe 4.0 x4M.2 Form Factor: 2280, 22110

    Extra Specifications for Supermicro H14SSL-NT UP Mainstream Server Board ATX Single Socket SP5 AMD EPYC 9005 Series Processors

    Main Specifications
    Device TypeMainstream Server Board
    Form FactorATX
    Dimensions (WxDxH)12" x 10.1" (30.48cm x 25.65cm)
    Processor
    Compatible ProcessorsAMD EPYC 9005 Series Processors
    Compatible SocketSingle Socket SP5
    Number of CoresUp to 192C/384T
    Miscellaneous
    NoteSupports up to 500W TDP CPUs
    System Memory
    Memory CapacitySlot Count: 12 DIMM Slots, Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM
    DIMM SizesRDIMM/3DS RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    Network ControllersDual LAN with Broadcom BCM57416 10GBase-T
    Others1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port, 2 MCIO (PCIe 5.0 x8/SATA3) port
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    USB(s)2 USB 3 port(s) (Header), 4 USB 3 port(s)
    Video Output1 VGA port
    Serial Port / Headers1 COM port(s) (header)
    TPM1 TPM header
    Expansion / Connectivity
    Expansion Slots Total (Free)3 PCIe 5.0 x16 (in x16) slots, 2 PCIe 5.0 x8 slots
    M.22 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110)
    Management
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Memory
    Voltage+12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature
    PC Health Monitoring
    LEDBMC/IPMI Heartbeat LED, UID/remote UID LED
    FAN6x 4-pin fan headers (up to 6 fans)
    Other FeaturesRoT
    Parts List
    I/O Shield1x MCP-260-00073-0N
    I/O Cables6x CBL-0044L

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
