Main Specifications |
Device Type | MP SuperServer |
Built-in Devices | Super X14QBH+ |
Form Factor | 2U Rackmount - CSE-218H2TS-R5K4AWP |
Dimensions (WxDxH) | Height 3.5" (88 mm) x Width 17.3" (438.4 mm) x Depth 33.4" (848.7 mm) |
Weight | Gross Weight: 99.7 lbs (45.2 kg) - Net Weight: 72.1 lbs (32.7 kg) |
Enclosure Color | Silver |
Processor |
Compatible Processors | Intel Xeon 6700 series processors with P-cores (4S/8S), Supports 165W - 350W TDP CPUs (Air Cooled) |
Compatible Socket | Quad E2 (LGA-4710) |
Number of Cores | Up to 86C/172T, Up to 336MB Cache per CPU |
GPU |
Max GPU Count | Up to 2 double-width GPUs |
CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
GPU-GPU Interconnect | PCI-E |
System Memory |
Memory Capacity | Slot Count: 64 DIMM slots |
| Max Memory (1DPC): Up to 8TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (2DPC): Up to 16TB 5200MT/s ECC DDR5 RDIMM |
Memory Voltage | 1.1V |
On-Board Devices |
Chipset | System on Chip |
Network Connectivity | Via AIOM |
Input / Output |
LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
USB(s) | 2 USB 3.0 Type-A ports(Rear) |
Video Output | 1 VGA port (Front), 1 DisplayPort port (Rear) |
Serial Port / Headers | 1 COM port(Rear) |
System BIOS |
BIOS Type | AMI 32MB SPI Flash EEPROM |
Management |
Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
Security |
Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
PC Health Monitoring |
CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 8 Phase-switching voltage regulator |
FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
Expansion / Connectivity |

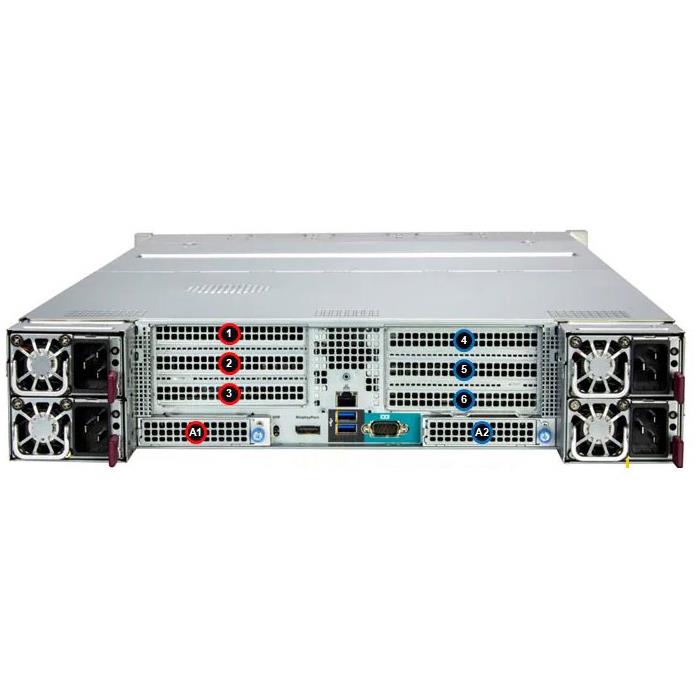

Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x8 (in x16) FHHL slots, 4 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Option A: 2 PCIe 5.0 x16 FHFL double-width slots, 2 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) |
M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110, VROC required for RAID) |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110, VROC required for RAID) |
Drive Bays / Storage |
Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe drive bays |
System Cooling |
Fans/Air Shroud | 4 Air Shrouds |
| 2 Internal Heavy duty counter-rotating 6cm Fan(s) |
| 3 Heavy duty counter-rotating 8cm Fan(s) |
Power Supply |
Power Supply | 4x 2700W Redundant (2 + 2) Titanium Level (96%) power supplies |
Miscellaneous |
Environmental Compliance | RoHS Compliant |
Environmental |
Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
