| Product SKUs |

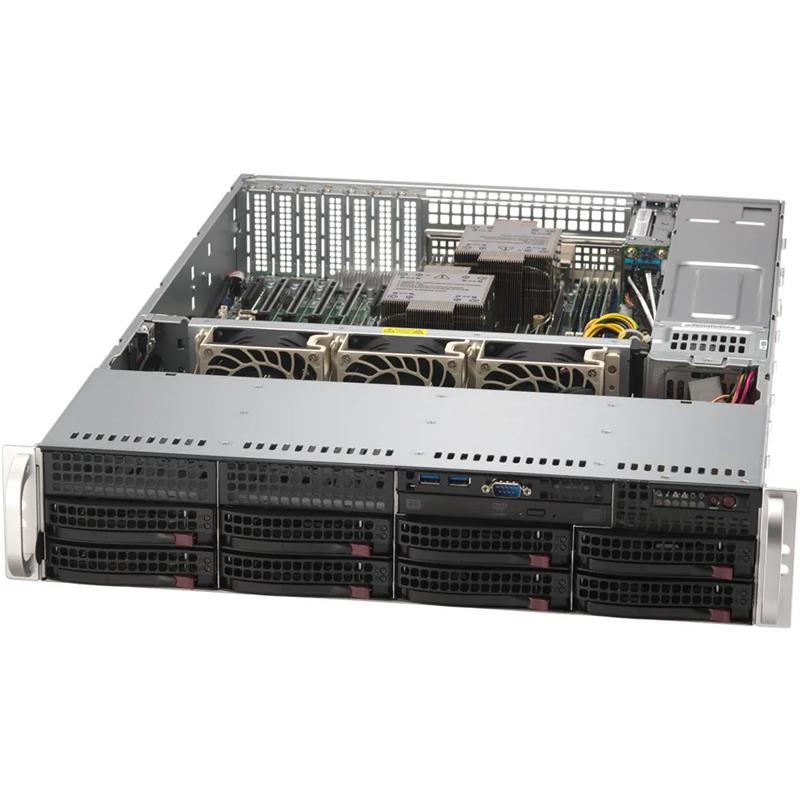

| Product SKUs | SYS-622B-TRT |
| Motherboard |
| Motherboard | Super X14DBI-T |
| Processor |
| CPU | Dual Socket E2 (LGA-4710) |
| Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| P-cores: Up to 128C/256T; Up to 336MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 16 DIMM slots |
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 2 RJ45 10GbE |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(front) |
| 4 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| Serial | 1 COM port(Rear) |
| 1 COM port(Front) |
| TPM | 1 TPM Onboard/port 80 |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-825BTS-R1K23LPP1 |
| Dimensions and Weight |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.5" (647 mm) |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) |
| Weight | Gross Weight: 69 lbs (31.2 kg) |
| Net Weight: 36.38 lbs (16.5 kg) |
| Available Color | Black |
| Front Panel |
| LED | Power status |
| HDD activity |
| Network activity |
| System information (overheat/UID) |
| Buttons | System Reset |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| View NVMe Options |
| 4 front hot-swap 3.5" SAS*/SATA drive bays |
| (*NVMe/SAS support may require additional storage controller and/or cables) |
| Default: Total 8 bays 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5" SAS*/SATA drive bays |
| 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x4 NVMe slots (M-key) |
| Peripheral Bays | 1 slim DVD bay (optional) |
| System Cooling |
| Fans | 3 middle 8cm Fan(s) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) |
