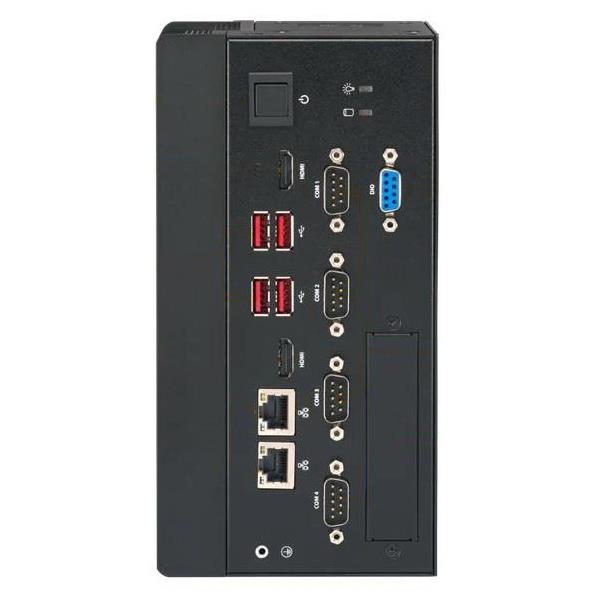

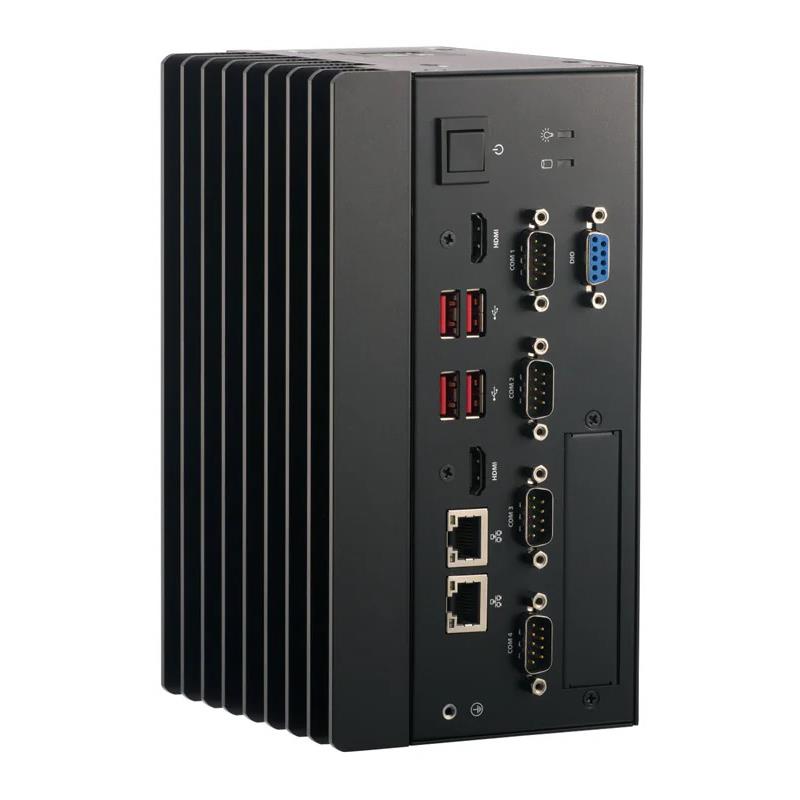

Supermicro SYS-E101-14AM-H Compact Fanless Embedded Intel Atom x7835RE Processor With 8-Core

Supermicro SYS-E101-14AM-H Compact Fanless Embedded Intel Atom x7835RE Processor With 8-Core

• Industrial / Automation
• Healthcare
• Digital Signage Kiosk, Interactive info system
• Retail

Barebone Compact Fanless System, Embedded Intel Atom x7835RE Processor, 3.6GHz (8-Core/8Thread, 6MB Cache / TDP 12W). Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM in 1 DIMM slots, Chipset: System on Chip, Drive Bays / Storage: 1 M.2 PCIe 3.0 x1 SATA Slot (B-key 2242/2280), 1 M.2 PCIe 3.0 x1 NVMe Slot (M-key 2242/2280). Network Connectivity: 2 RJ45 2.5 GbE LAN Ports (Intel I226). Others: 6 USB Ports, 2 HDMI 1.4 Ports (Front), 4 COM RS232 Ports. (CSE-E101-IA3 + A4SAN-H-WOHS) - SYS-E101-14AM-H

1. Fanless DIN Rail Mounted System
2. Intel® Atom® x7835RE (TDP 12W/8C)
3. 1 DIMM supporting up to 16 GB of Non-ECC DDR5 SO-DIMM with speeds up to 4800 MT/s
4. 2 RJ45 2.5GbE
5. DC 9-36V; Power Adapter Terminal Block 60W
6. 4 USB 3.2; 2 HDMI 1.4; 4 COM ports (COM1/2 RS232/422/485 + COM3/4 RS232); 1 SMBUS 8-bit GPIO

Extra Specifications for Supermicro SYS-E101-14AM-H Compact Fanless Embedded Intel Atom x7835RE Processor With 8-Core

Product SKUs
Product SKUs	SYS-E101-14AM-H
Motherboard

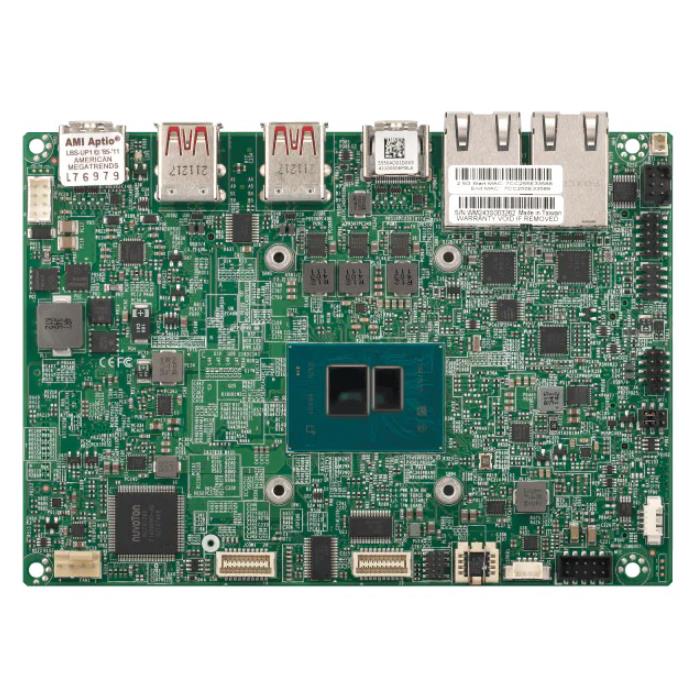

Motherboard	Super A4SAN-H-WOHS
Processor
CPU	Intel® Atom® x7835RE
Core Count	Up to 8C/8T; Up to 6MB Cache
Note	Supports up to 12W TDP CPUs (Air Cooled)
System Memory
Memory	View Memory Options
	Slot Count: 1 DIMM slots/1 Channels
	Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 2.5GbE with Intel® I226-IT
Input / Output
LAN	2 RJ45 2.5 GbE LAN ports (Intel® I226)
USB	2 USB 2.0 Type-A ports(rear)
	4 USB 3.2 Gen2 Type-A ports(Front)
Video	2 HDMI 1.4 ports(Front)
Serial	2 COM RS232 ports(Front)
	2 COM RS232/RS422/RS485 ports(Front)
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	Supermicro SuperDoctor® 5 (SD5)
Power configurations	ACPI Power Management
	Power-on mode control for AC power loss recovery
	Force power-on by jumper

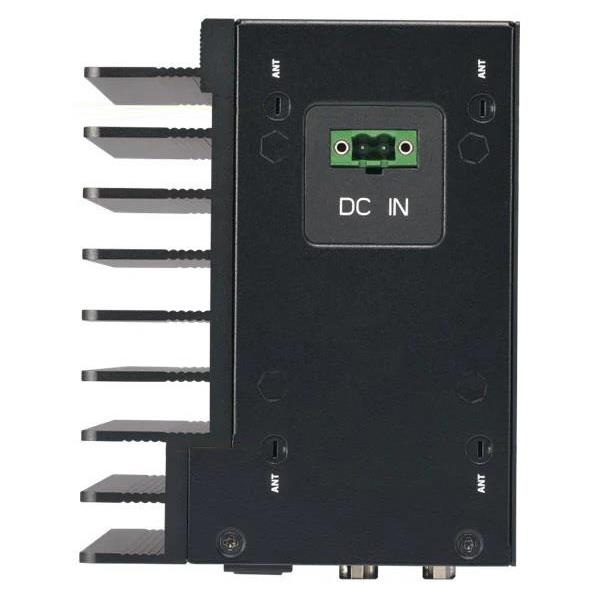

	+9~36V DC Power Input
Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Secure Boot
Chassis
Form Factor	Fanless Embedded
Model	CSE-E101-IA3
Dimensions and Weight
Height	4.52" (115 mm)
Width	7.64" (194 mm)
Depth	4.96" (126 mm)
Package	12.01" (H) x 27.17" (W) x 12.6" (D)
Weight	Gross Weight: 4.3 lbs (1.95 kg)
	Net Weight: 3.7 lbs (1.68 kg)
Available Color	Black
Expansion Slots
M.2
Drive Bays / Storage
M.2	View M.2 Options
	1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280)
	1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280)
System Cooling
Fans	N/A
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)
	Operating Temperature: -40°C to 55°C (-4°F to 131°F) with 0.7 m/s airflow

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
