  2. Supermicro SBI-612B-1NE34 SuperBlade Sled Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or E-cores

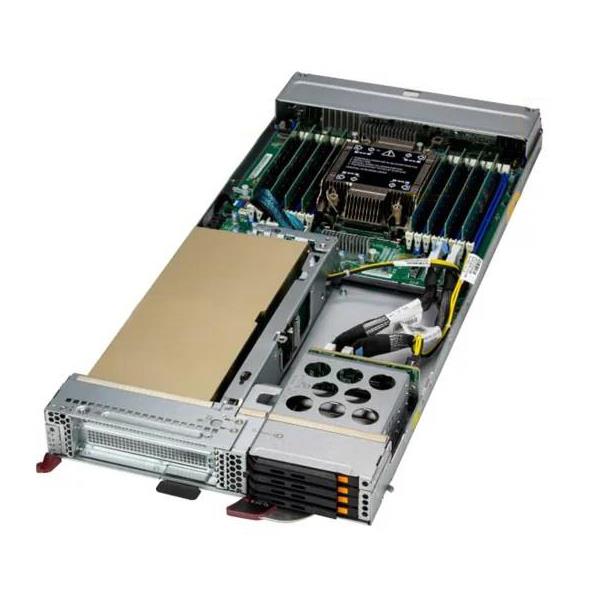

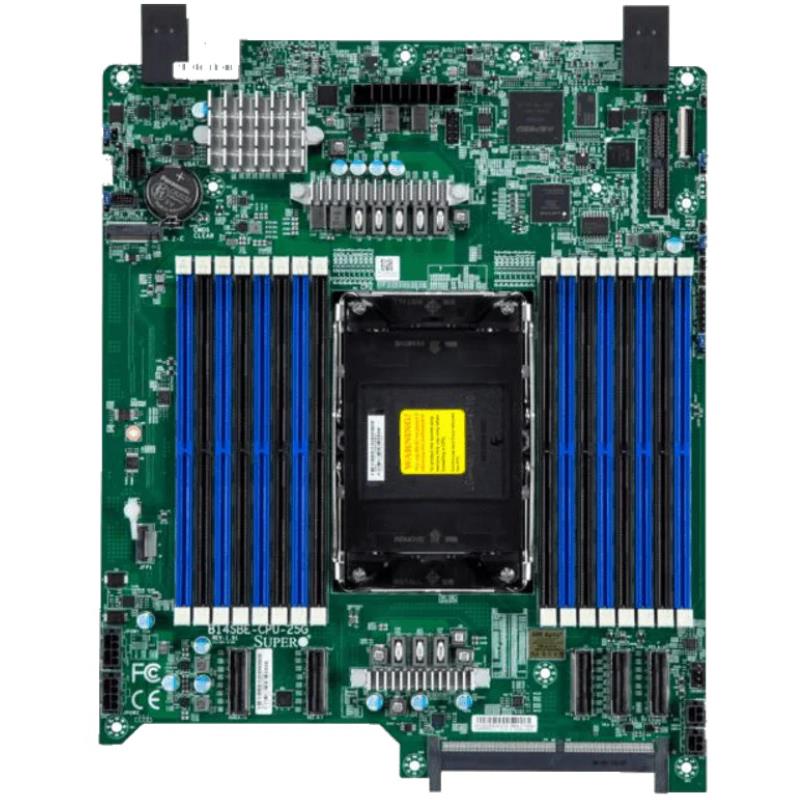

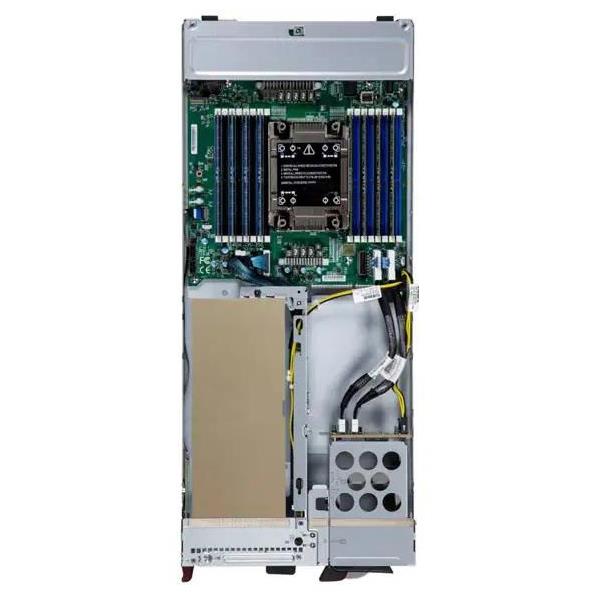

Supermicro SBI-612B-1NE34 SuperBlade Sled Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or E-cores
Supermicro SBI-612B-1NE34 SuperBlade Sled Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or E-cores
Supermicro SBI-612B-1NE34 SuperBlade Sled Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or E-cores

Supermicro SBI-612B-1NE34 SuperBlade Sled Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or E-cores

  • Onboard dual 25G Ethernet, System-on-Chip architecture

  • Up to 4TB DDR5 ECC RDIMM/3DS RDIMM across 16 DIMM slots

  • Supports Intel Xeon 6700/6500 Series CPUs (up to 250W TDP, P-cores or E-cores)

  • Supports 1 double-width or 2 single-width GPUs, 4x E3.S hot-swap bays, and 1x M.2 2280

Barebone Node, Designed For Supermicro 6U Enclosure SBE-610J-822/622/422 And SBE-610J2-830/630/430/822/622/422 Supports Single Socket E2 (LGA-4710) For Intel Xeon 6700/6500 Series Processors With P-cores or E-cores, Up to 250W TDP CPUs (Air Cooled at 35°C). Max GPU Count: Up to 1 Double-width or 2 Single-width GPU. Up to 4TB DDR5 ECC-RDIMM/3DS-RDIMM in 16 DIMM slots, Chipset: System on Chip, On-Board: NVMe. Drive Bays / Storage: 4 Hot-swap E3.S Drive Bays, 1 M.2 2280. Network Connectivity: Onboard Dual 25G Ethernet - SBI-612B-1NE34

$ 1,389.00$ 1,389.001389.0USD

$ 1,389.00

Option not available

PreOrder
20 lb

    This combination does not exist.

    Add to Cart

    Key Applications


    • Enterprise Applications

    • High Performance Computing

    • Engineering/scientific research

    • Cloud, virtualization, financial, EDA



    Key Features


    1. Fits 70 servers per 42U rack

    2. Single-socket Intel Xeon 6700/6500 (P-core or E-core) on LGA-4710

    3. Up to 4TB DDR5 ECC (6400MT/s 1DPC / 5200MT/s 2DPC) across 16 DIMMs

    4. 4 hot-swap E3.S PCIe Gen5 SSDs

    5. Dual-port 25G Ethernet (LOM)

    6. Expansion slot for Ethernet mezzanine + standard PCIe

    7. Optional liquid cooling available

    Extra Specifications for Supermicro SBI-612B-1NE34 SuperBlade Sled Barebone Single Intel Xeon 6700/6500 Series Processors With P-cores or E-cores

    Main Specifications
    Device TypeSuperBlade Sled
    Dimensions (WxDxH)Height 1.7in x Width 9.83in x Depth 24in
    Weight6.2 lbs
    Enclosure ColorMetalic Silver with Black Drive Bays
    Processor
    Compatible Socket (per Node)Single Socket E2 (LGA-4710)
    Compatible Processors (per Node)Intel Xeon 6700/6500-series processors with P-cores or E-cores
    Note: Up to 250W TDP CPUs (Air Cooled at 35°C)
    GPU
    Max GPU Count (per Node)Up to 1 double-width or 2 single-width GPUs
    System Memory
    Memory Capacity (per Node)16 DIMM slots (2DPC)
    Up to 4TB DDR5ECC RDIMM/3DS-RDIMM, with speed 6400MT/s (1DPC) or 5200MT/s (2DPC) in 16 DIMM slots
    Up to 512GB MRDIMM with speed 8000MT/s in 1DPC memory population
    On-Board Devices
    Chipset (per Node)System on Chip
    Network Controllers (per Node)Onboard Dual 25G Ethernet
    1 expansion slot w/ optional mezzanine cards
    MGMT/Security (per Node)IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
    Graphics (per Node)Aspeed AST2600
    TPM1 TPM Header
    Input / Output
    NVMe (per Node)NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required)
    System BIOS
    BIOS TypeAMI 256Mb SPI Flash EEPROM
    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED, UID, Network Activity LED, Fault LED
    Expansion Slots
    Expansion Slots (per node)2 PCIe Gen5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards
    Expansion / Connectivity
    Drive Bays / Storage (per Node)4 Hot-swap E3.S drive bays
    1 M.2 2280
    Miscellaneous
    Environmental ComplianceRoHS Compliant
    Environmental
    Operating EnvironmentOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
