| Product SKUs |
| Product SKUs | SYS-512AR-N4T |

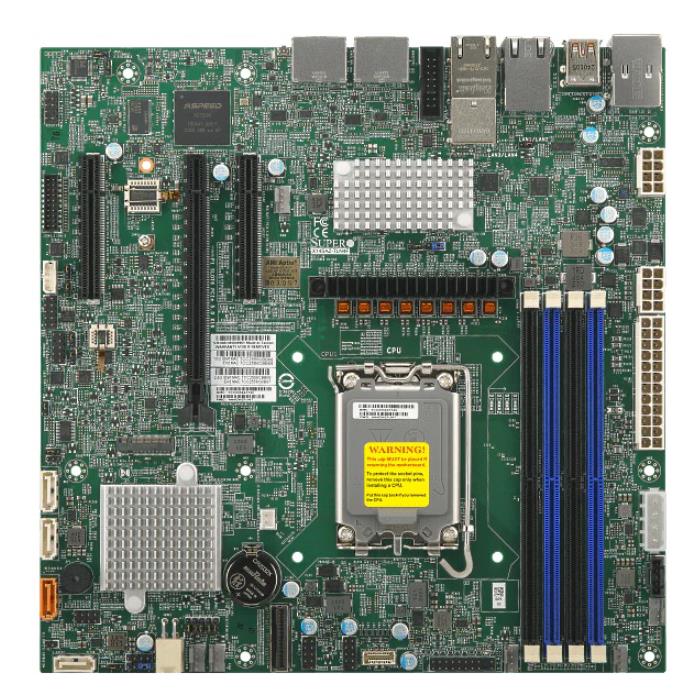

| Motherboard |
| Motherboard | Super X14SAZ-TLN4F |
| Processor |
| CPU | Single LGA-1851 |
| Intel® Core™ Ultra 9/7/5 (Series 2) processors |
| Core Count | 24C/24T; 36MB Cache |
| Note | Supports up to 95W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 1 single-width GPU |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 4 DIMM slots/2 Channels |
| Max Memory (1DPC): 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM |
| Max Memory (2DPC): 192GB 4400MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 2 RJ45 10GbE with Intel® X550 |

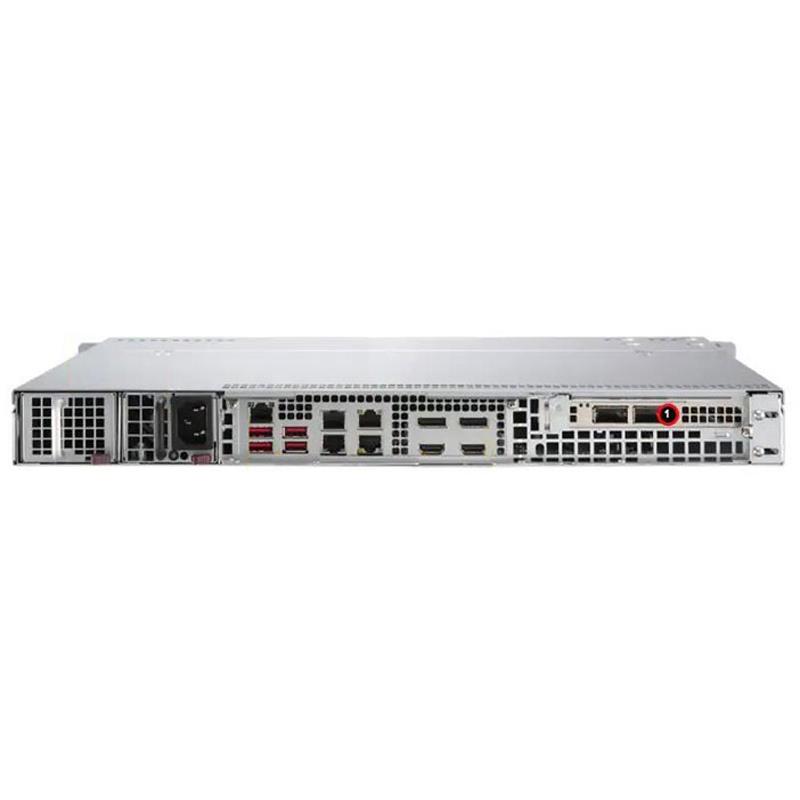

| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| 2 RJ45 10 GbE LAN ports (Intel® X550-AT2) |
| 2 RJ45 2.5 GbE LAN ports (Intel® I226) |
| USB | 4 USB 3.2 Gen2 Type-A ports(Rear) |
| Video | 2 DisplayPort 1.4 ports(Rear) |
| 2 HDMI 2.1 ports(Rear) |
| TPM | 1 TPM header |
| 1 TPM Onboard/port 80 |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| System Lockdown |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |

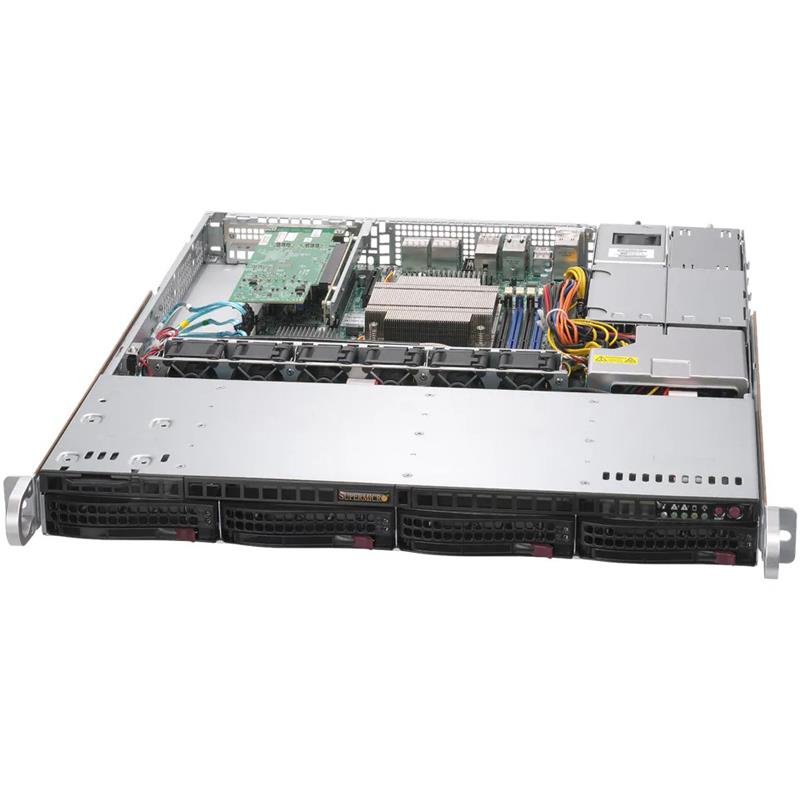

| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-813MF2TS-R000CNBP-2 |
| Dimensions and Weight |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 19.98" (507 mm) |
| Package | 8.5" (H) x 24" (W) x 29.5" (D) |
| Weight | Gross Weight: 30.4 lbs (13.8 kg) |
| Net Weight: 17.6 lbs (8 kg) |
| Available Color | Black |

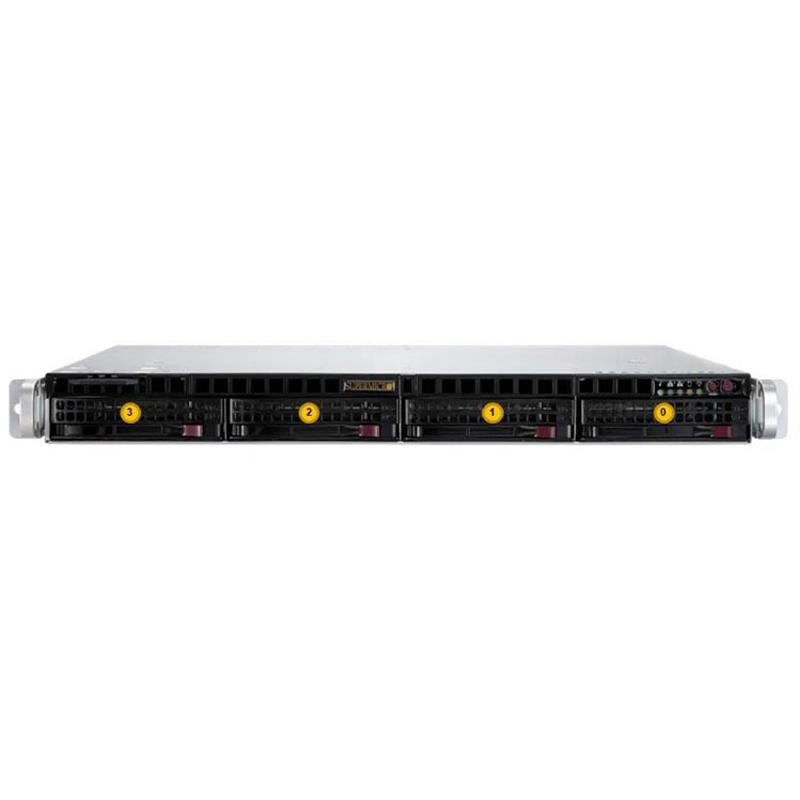

| Front Panel |
| LED | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Buttons | System Reset |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays |
| 4 front hot-swap 3.5" SATA drive bays |
| M.2 | 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280/22110) |

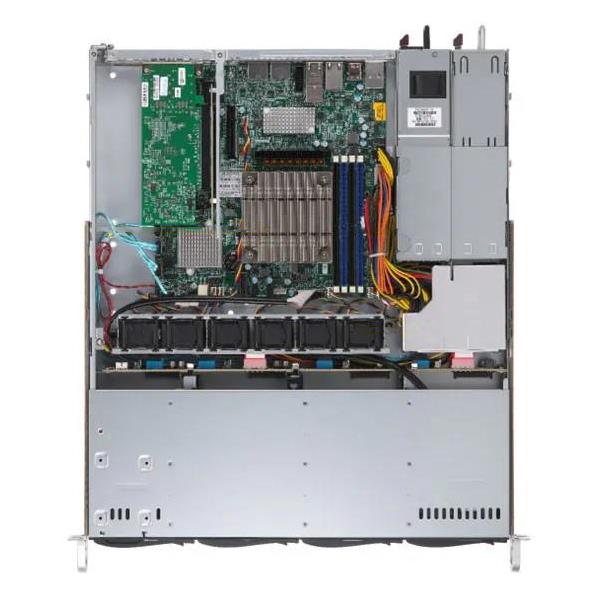

| System Cooling |
| Fans | 6x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 95°F) |
