| GPU |
| Max GPU Count | Up to 6 double-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 64 DIMM slots |
| Max Memory (1DPC): Up to 8TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (2DPC): Up to 16TB 5200MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| View AOC Options |
| View AIOM Options |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port(Front) |
| 1 DisplayPort port(Rear) |
| Serial | 1 COM port(rear) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| View NVMe Options |
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| Default: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays |
| 24 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays |
| M.2 | View M.2 Options |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110; VROC required for RAID) |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110; VROC required for RAID) |
| Product SKUs |

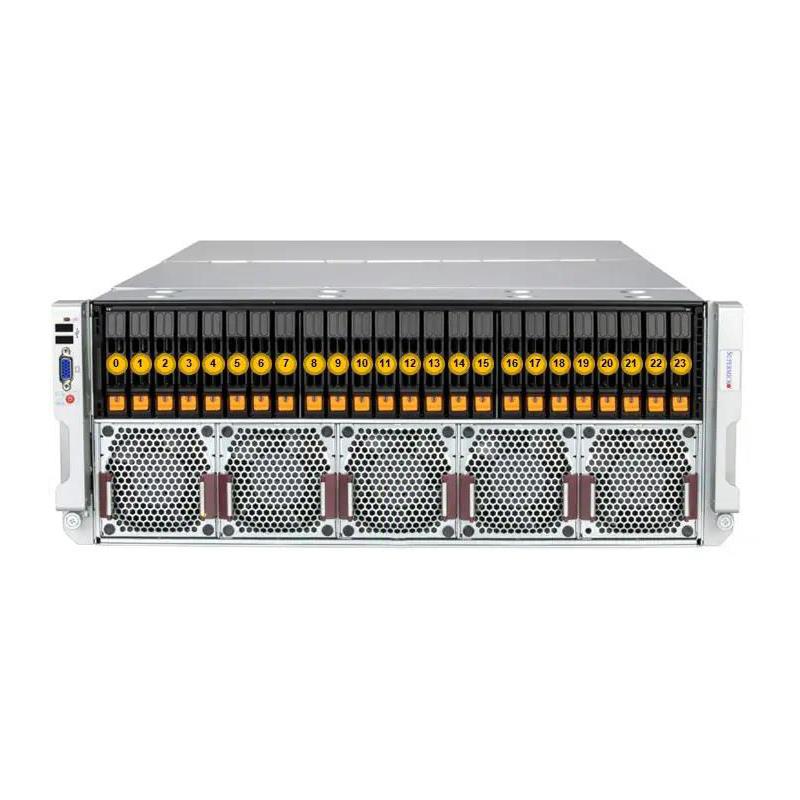

| Product SKUs | SYS-442B-NR |
| Motherboard |
| Motherboard | Super X14QBH+ |
| Processor |
| CPU | Quad E2 (LGA-4710) |
| Intel® Xeon® 6700 series processors with P-cores (4S/8S) |
| Core Count | Up to 86C/172T; Up to 336MB Cache per CPU |
| Note | Supports 165W - 350W TDP CPUs (Air Cooled) |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-418H2TS-R5K4AWP |
| Dimensions and Weight |
| Height | 7" (177 mm) |
| Width | 17.3" (438.4 mm) |
| Depth | 33.4" (848.7 mm) |
| Package | 15.94" (H) x 27.32" (W) x 49.41" (D) |
| Weight | Gross Weight: 158.9 lbs (72.1 kg) |
| Net Weight: 120.4 lbs (54.6 kg) |
| Available Color | No Paint |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| System Cooling |
| Fans | 10 Heavy duty counter-rotating 8cm Fan(s) |
| Air Shroud | 5 Air Shrouds |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
