| Product SKUs |
| Product SKUs | AS -4145GH-TNMR |

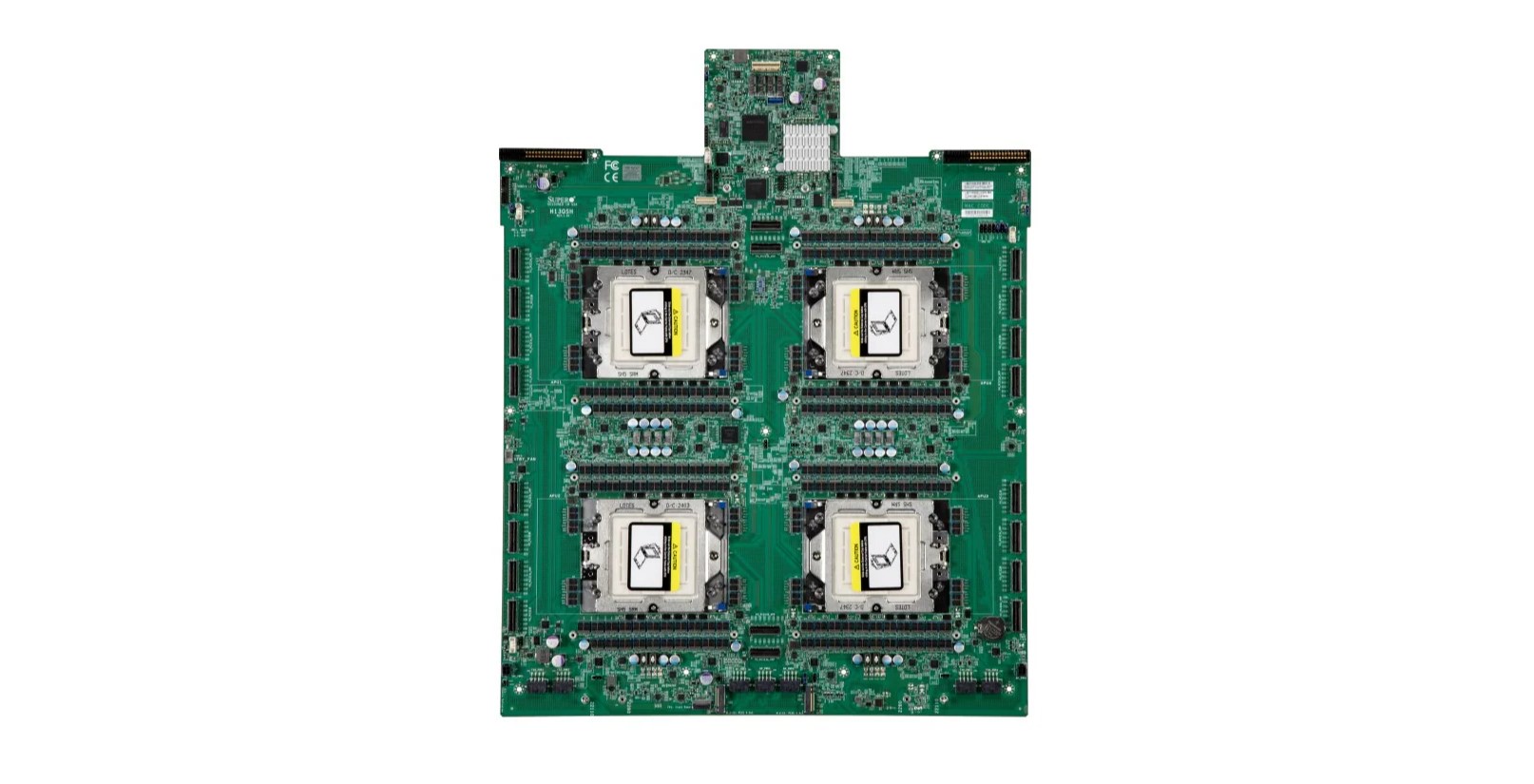

| Motherboard |
| Motherboard |
| Processor |
| CPU | Quad Socket SH5 |

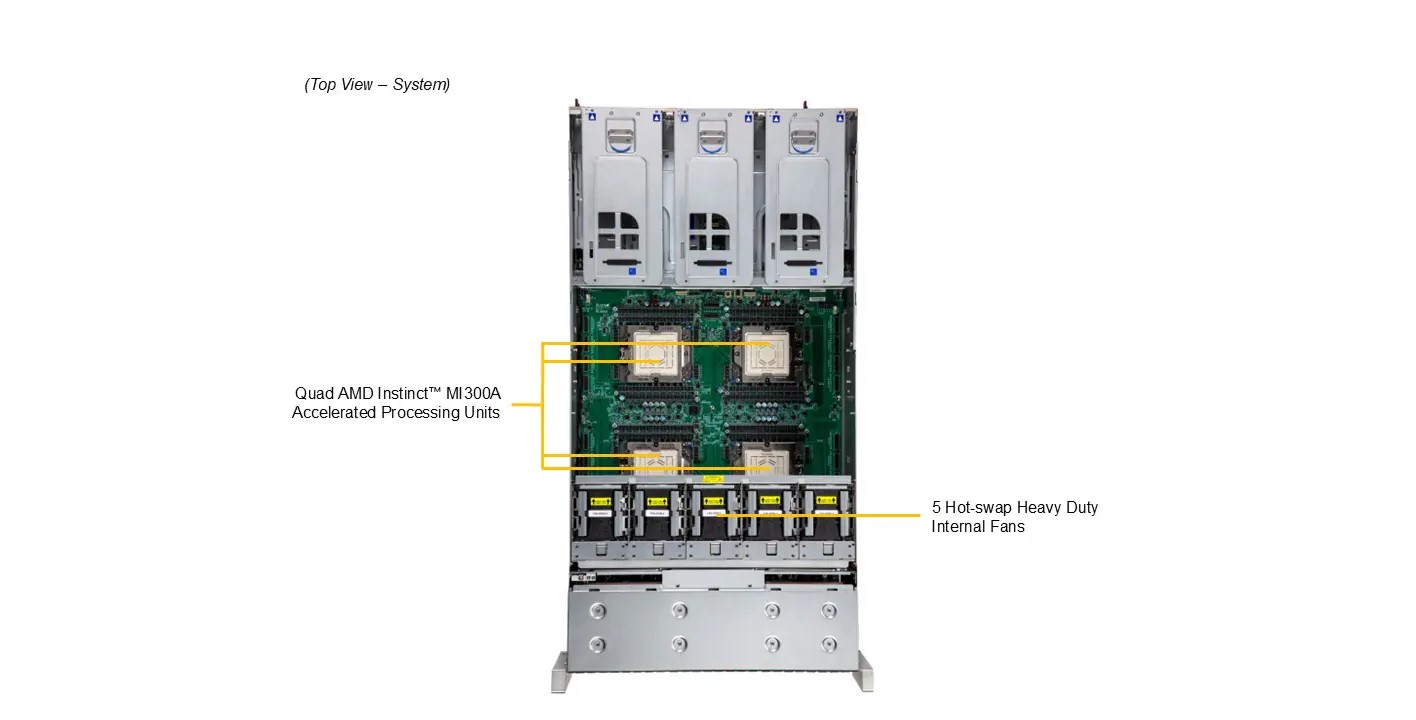

| AMD Instinct™ MI300A Accelerated Processing Units (APUs) |
| Note | Supports up to 760W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 4 onboard GPU(s) |
| Supported GPU | View GPU Options |
| AMD: Instinct MI300A APU |
| System Memory |
| Memory | Slot Count: Onboard Memory |
| Max Memory: Up to 512GB non-ECC HBM3 |
| On-Board Devices |
| Chipset | AMD SH5 |
| Network Connectivity | Via AIOM |
| View AOC Options |
| View AIOM Options |
| NVMe | View NVMe Options |

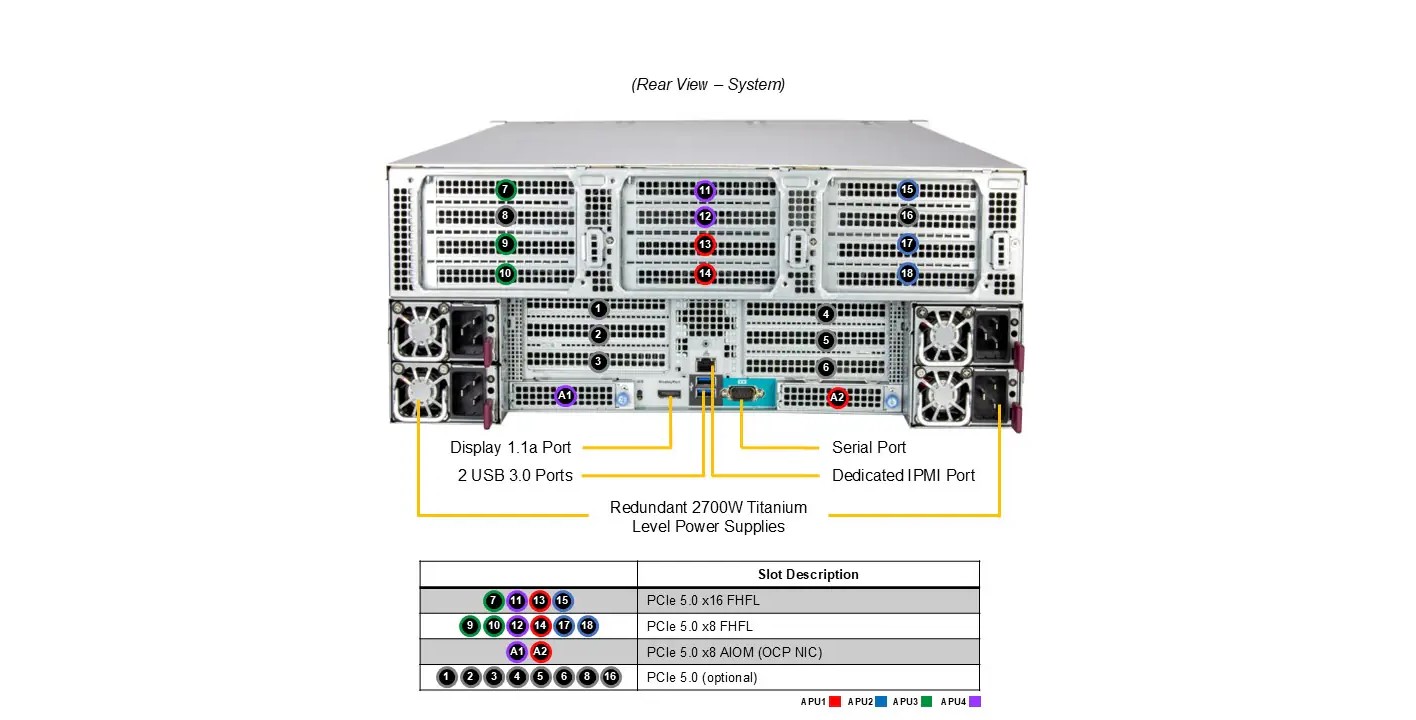

| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 USB 3.0 port(s) (rear) |
| Video | 1 DisplayPort port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |

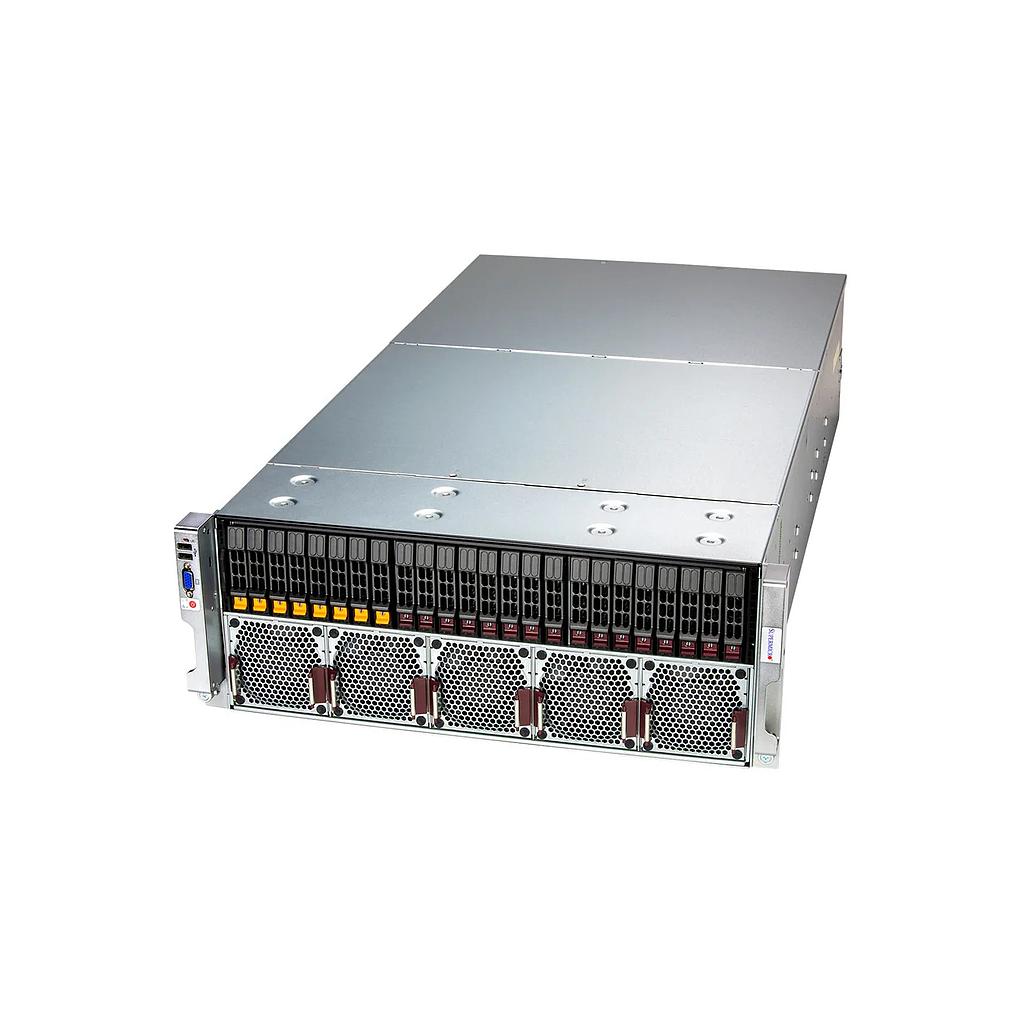

| Form Factor | 4U Rackmount |
| Model | CSE-418H2TS-R3K2AWP |
| Dimensions and Weight |
| Height | 7" (177 mm) |
| Width | 17.3" (438.4 mm) |
| Depth | 33.4" (848.7 mm) |
| Package | 17.12" (H) x 28.34" (W) x 42.5" (D) |
| Weight | Gross Weight: 132.27 lbs (60 kg) |
| Net Weight: 77.16 lbs (35 kg) |
| Available Color | Black |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |

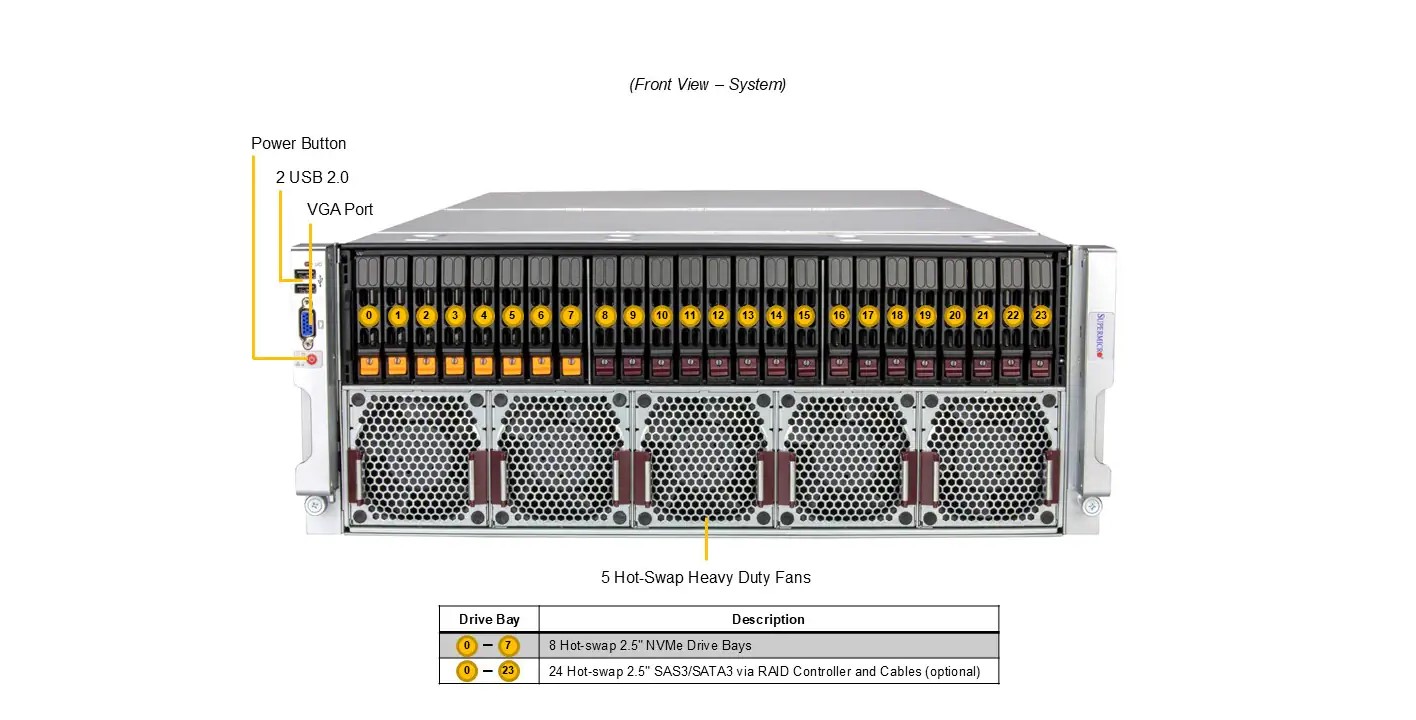

| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| Default: Total 8 bay(s) 8 front hot-swap 2.5" NVMe drive bay(s) |
| 8 front hot-swap 2.5" NVMe drive bay(s) |
| (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Option A: Total 24 bay(s) 24 front hot-swap 2.5" SAS*/SATA* drive bay(s) |
| 24 front hot-swap 2.5" SAS*/SATA* drive bay(s) |
| M.2 | 2 M.2 NVMe/SATA slot(s) (M-key) |
| System Cooling |
| Fans | 10 Heavy duty counter-rotating 8cm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 73.5 x 40 x 203 mm |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) |
| Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12V SB | Max: 4A / Min: 0A |
| AC Input | 2700W: 200-240Vac / 50-60Hz |
| 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
