| Main Specifications |

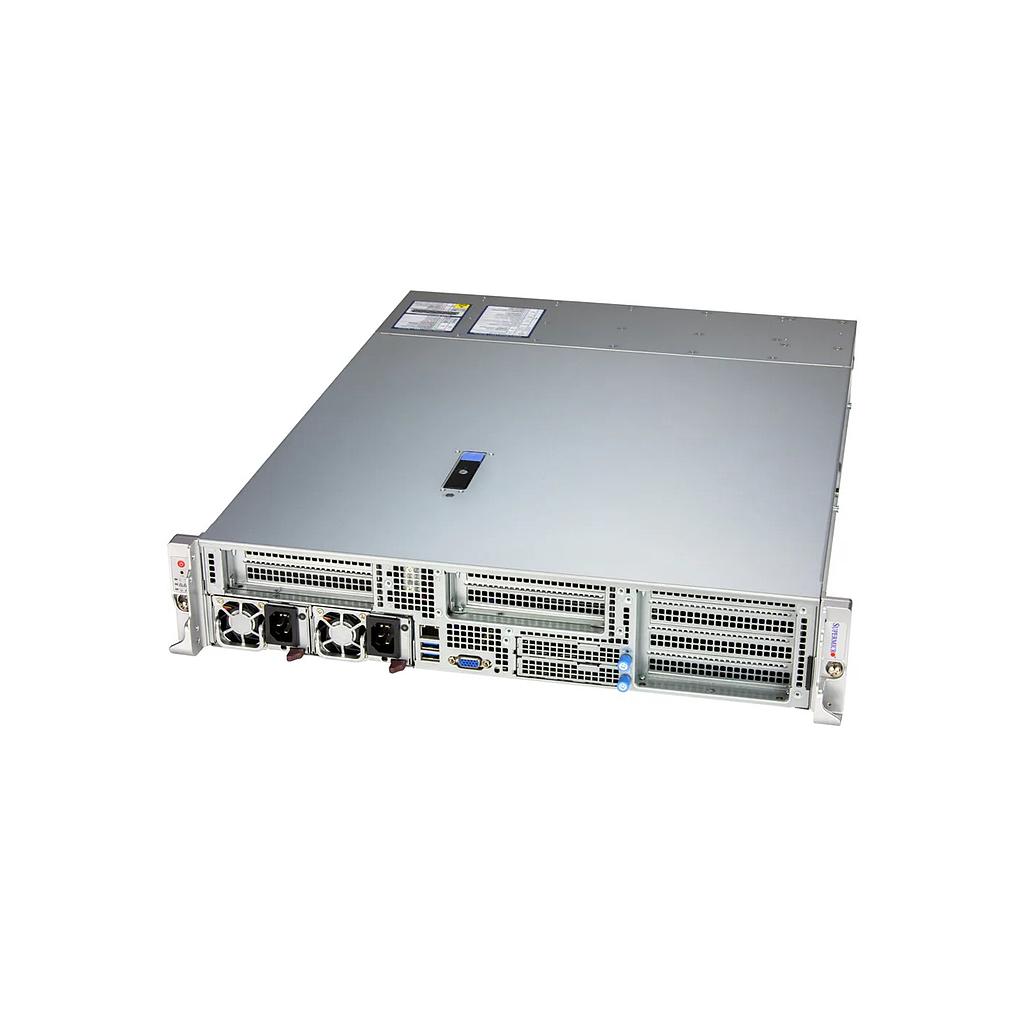

| Device Type | IoT A+ Server |
| Built-in Devices | Super H13SSH |
| Form Factor | 2U Rackmount - CSE-HE211-R000NFP |
| Dimensions (WxDxH) | Height 3.5" (88.9 mm) x Width 17.2" (436.88 mm) x Depth 22.6" (574 mm) |
| Weight | Net Weight: 34.4 lbs (15.6 kg) - Gross Weight: 47.4 lbs (21.5 kg) |
| Enclosure Color | Silver |
| Processor |
| Compatible Processors | AMD EPYC 9005/9004 Series Processors |
| Compatible Socket | Single processor, up to 500W TDP CPUs |
| Number of Cores | Up to 192C/384T |
| GPU |
| Max GPU Count | Up to 4 double-width or 4 single-width GPUs |
| Supported GPUs | NVIDIA PCIe: H100 NVL, L40S, L4 |
| CPU-GPU Interconnect | PCIe Gen5 x16 |
| GPU-GPU Interconnect | PCIe |
| System Memory |
| Memory Capacity | Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor) |
| Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor) |
| Slot Count: 24 DIMM slots/12 Channels |
| Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) |
| Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Provided via AIOM |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 Type-A ports(Front) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), OOB Management Package (SFT-OOB-LIC), SuperServer Automation Assistant (SAA) New |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Memory |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Front Panel |
| LEDs | HDD activity LED, LAN1 activity, LAN2 activity, Power Fail, Power status LED, System information |
| Buttons | Power On/Off button, UID button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Option A: 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible), 3 PCIe 5.0 x16 (in x16) FHFL slots, 2 PCIe 4.0 x8 (in x16) FHFL slots |
| Option B: 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible), 3 PCIe 5.0 x16 (in x16) FHFL slots, 1 PCIe 4.0 x16 (in x16) FHFL slot |
| Option C: 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible), 5 PCIe 5.0 x8 (in x16) FHFL slots, 3 PCIe 4.0 x8 (in x16) FHFL slots (Requires additional parts, please see the optional parts list for details) |
| 8 PCI 5V 32-bit slots |
| M.2 | 1 M.2 PCIe 3.0 x4 slot (M-key 22110(default)/2280) |
| 1 M.2 PCIe 3.0 x2 slot (M-key 22110(default)/2280) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 6 rear hot-swap 2.5" PCIe 5.0 x4 NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| 6x 6cm heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | Optional Configuration |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
