| Main Specifications |
| Device Type | IoT A+ Server |

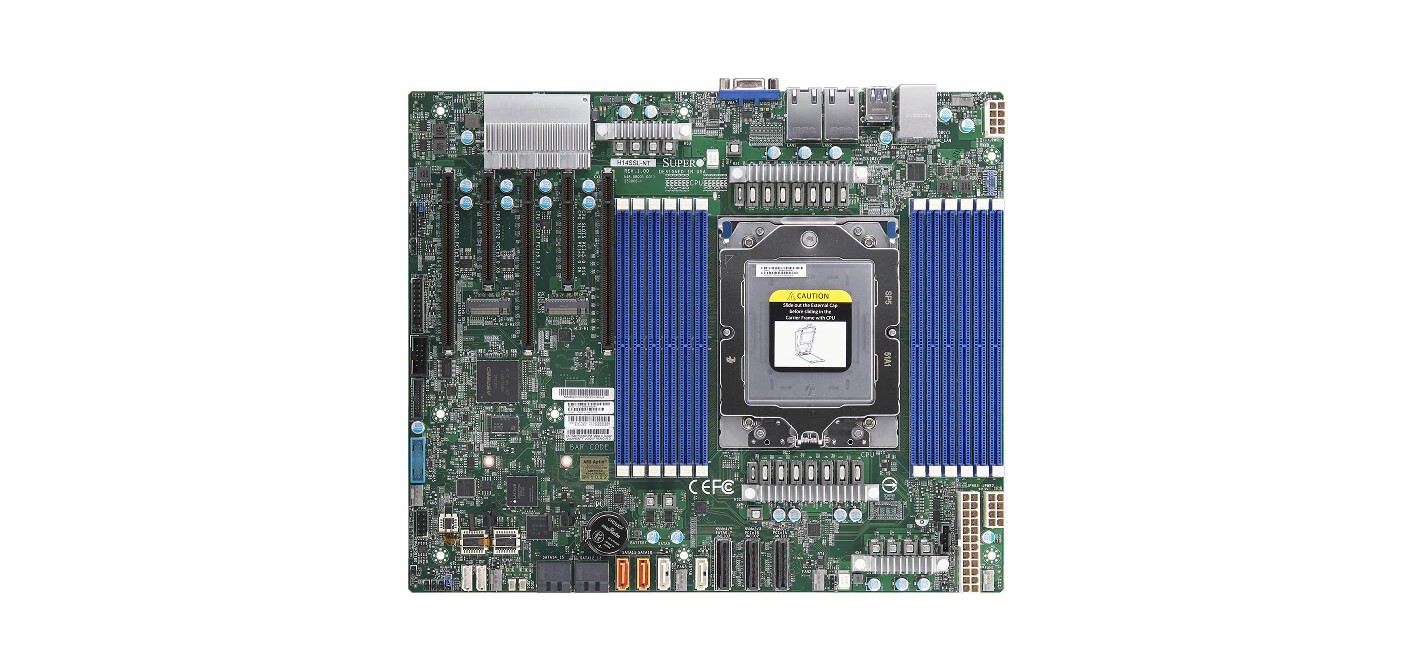

| Built-in Devices | Super H14SSL-NT |

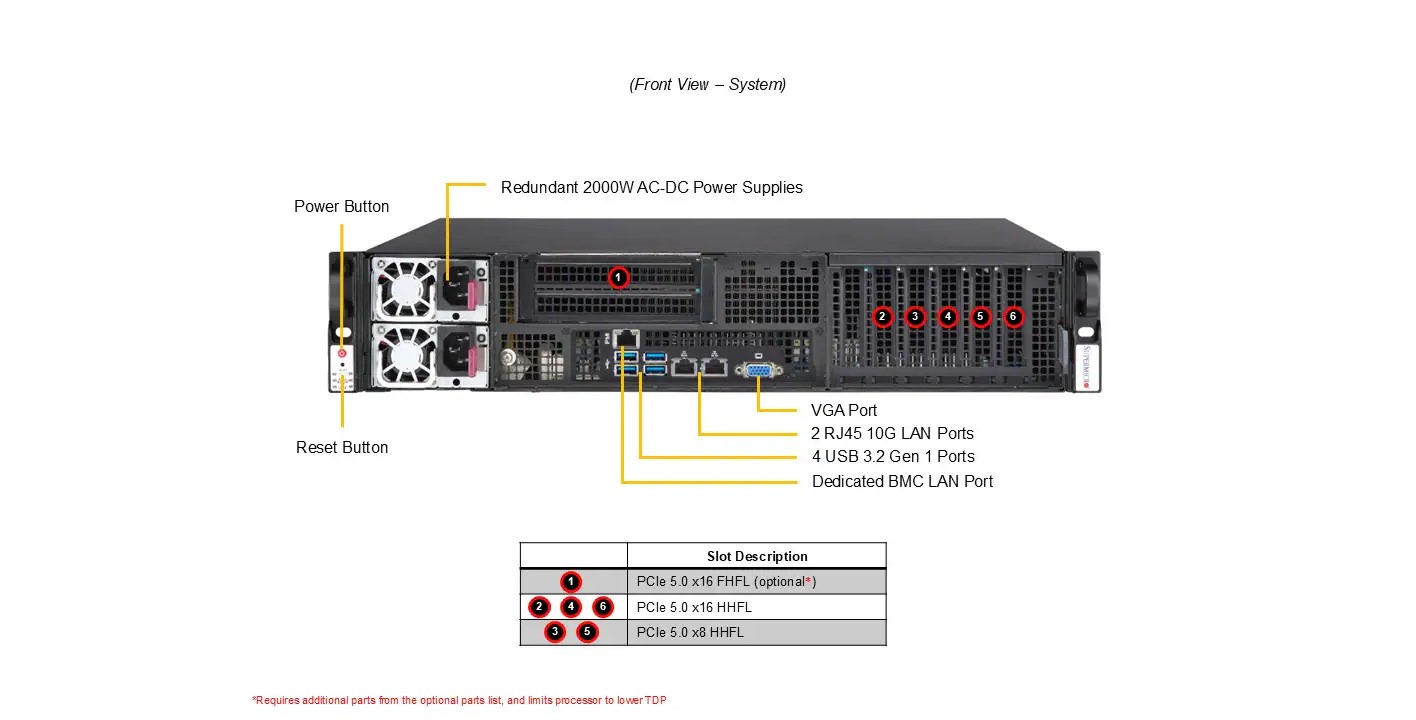

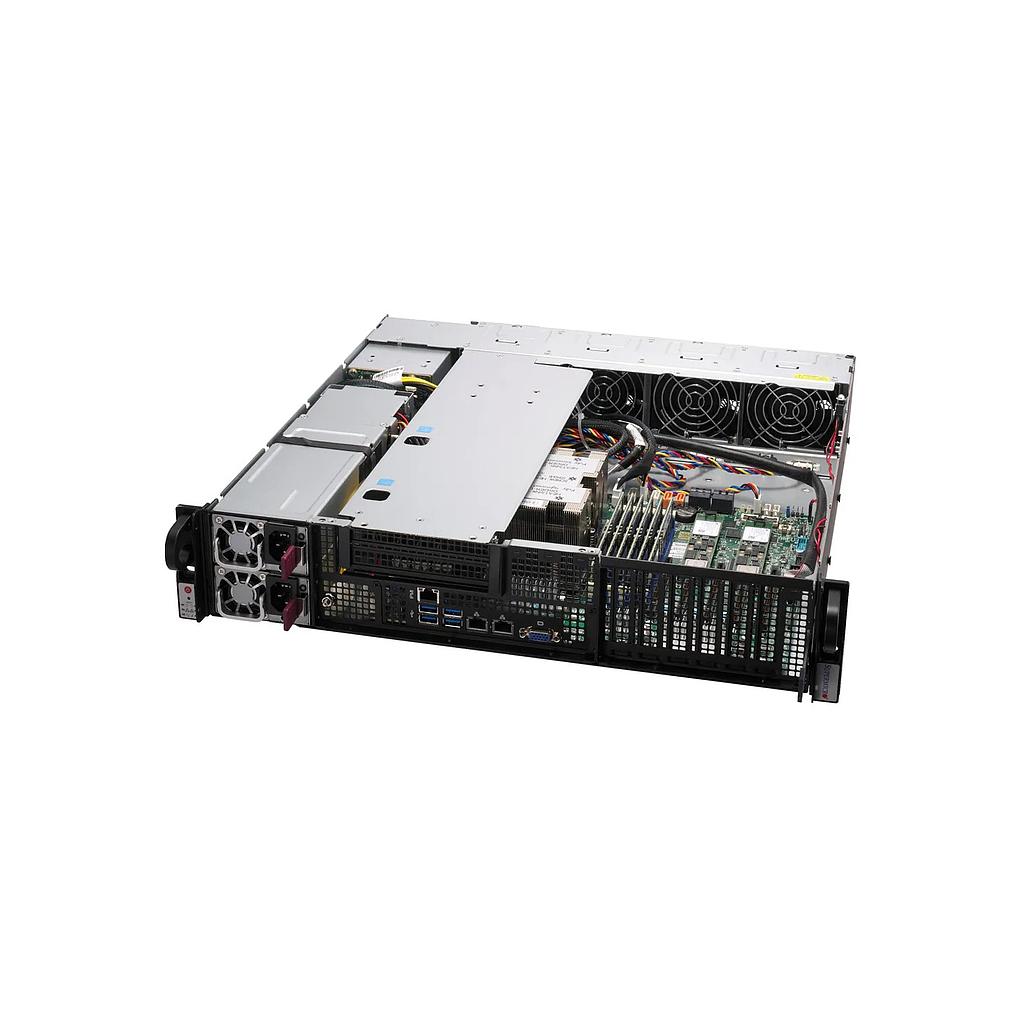

| Form Factor | 2U Rackmount - CSE-223M-R000LPNDP |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 17.72" (450 mm) |
| Weight | Gross Weight: 23 lbs (10.43 kg) - Net Weight: 17 lbs (7.7 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | AMD EPYC 9005 Series Processors |
| Compatible Socket | Single processor, up to 500W TDP CPUs |
| Number of Cores | Up to 192C/384T, Up to 384MB Cache |
| GPU |
| Max GPU Count | Up to 4 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory |

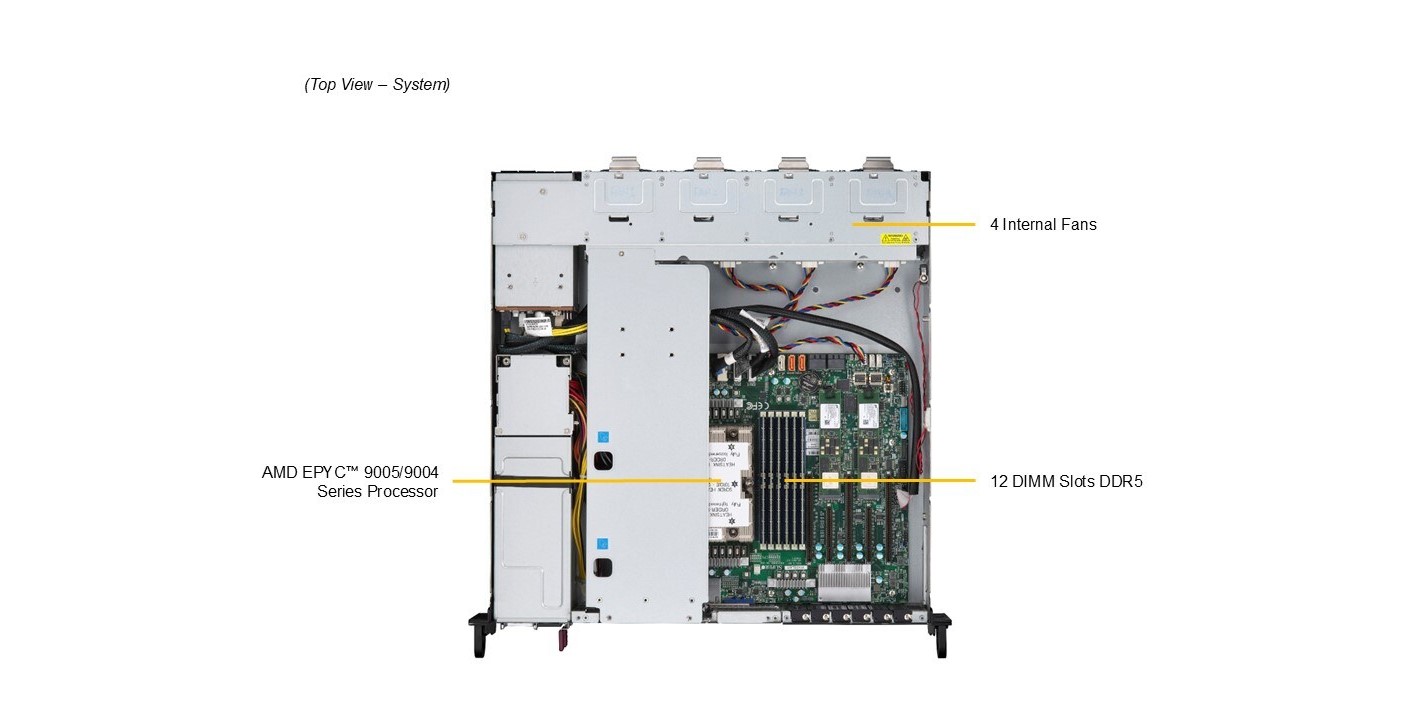

| Memory Capacity | Slot Count: 12 DIMM Slots, Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom BCM57416 |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port, 2 RJ45 10 GbE LAN ports |
| USB(s) | 4 USB 3.2 Gen1 Type-A ports |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| Front Panel |
| LEDs | HDD activity, LAN1 activity, LAN2 activity, Power status, System information |
| Buttons | Power On/Off button, UID button |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 3 PCIe 5.0 x16 (in x16) HHFL slots, 2 PCIe 5.0 x8 (in x8) HHFL slots |
| Option A: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe/SATA slots (M-key 22110(default)/2280) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 4 front hot-swap 2.5" NVMe/SATA drive bays (NVMe support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | 1 per node Air Shroud(s) |
| 4x 8cm Fans |
| Power Supply |
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Name: A2 |
| Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
