| Product SKUs |
| Product SKUs | SYS-741A-T |
| Motherboard |

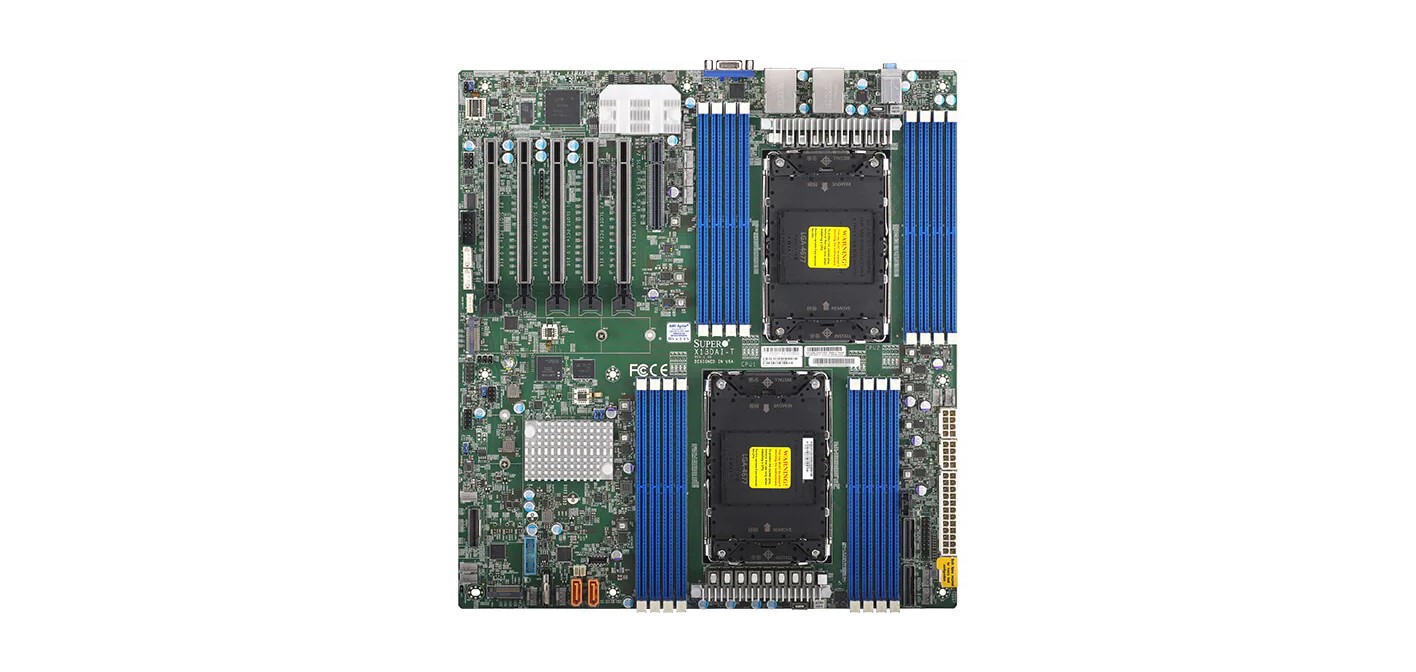

| Motherboard | Super X13DAI-T |
| Processor |
| CPU | Dual Socket E (LGA-4677) |
| Procesadores escalables Intel® Xeon® de 5ª generación / Intel® Xeon® de 4ª generación |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 2 double-width GPUs |
| Supported GPU | NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, T400, RTX A5500, T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada Generation |
| Ver opciones de GPU |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory |

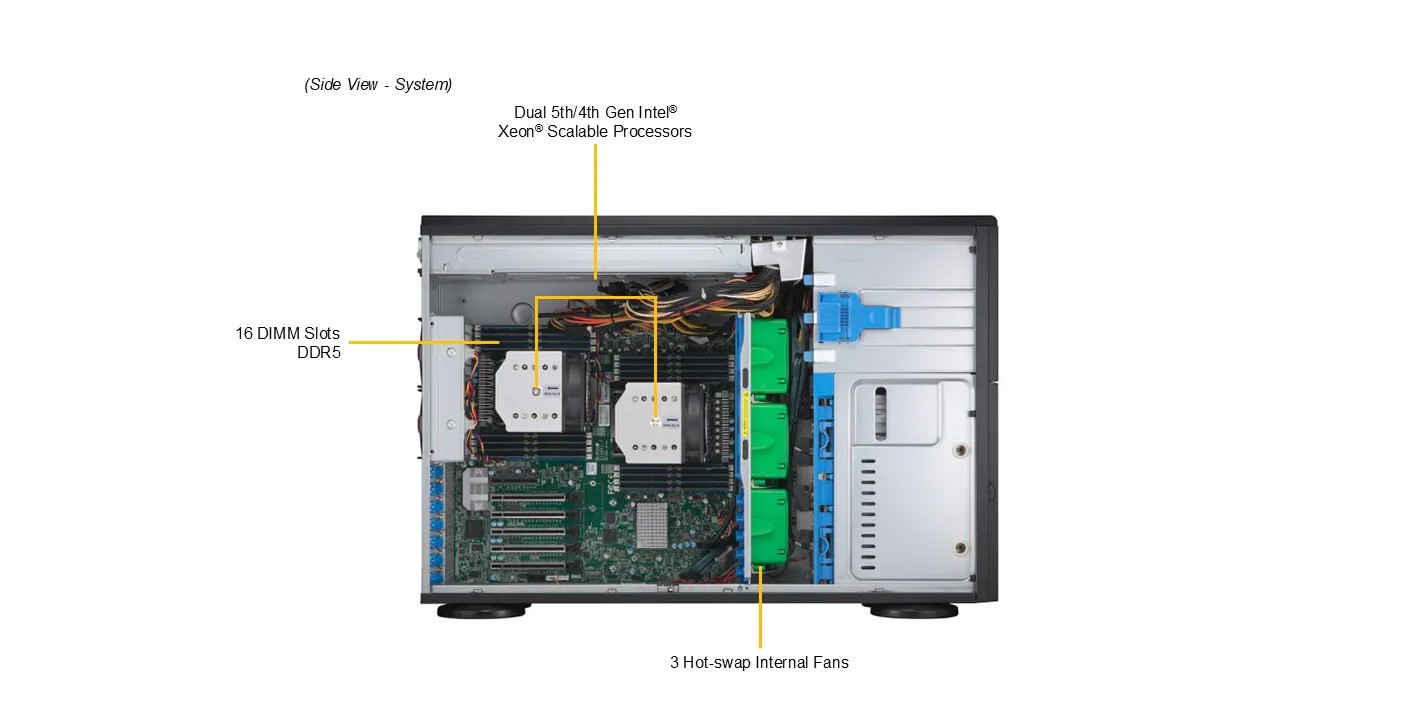

| Memory | Slot Count: 16 DIMM slots |
| Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| Ver opciones de memoria |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| Chipset | Intel® C741 |
| Network Connectivity | 2 RJ45 10GbE |
| Ver opciones de AOC |

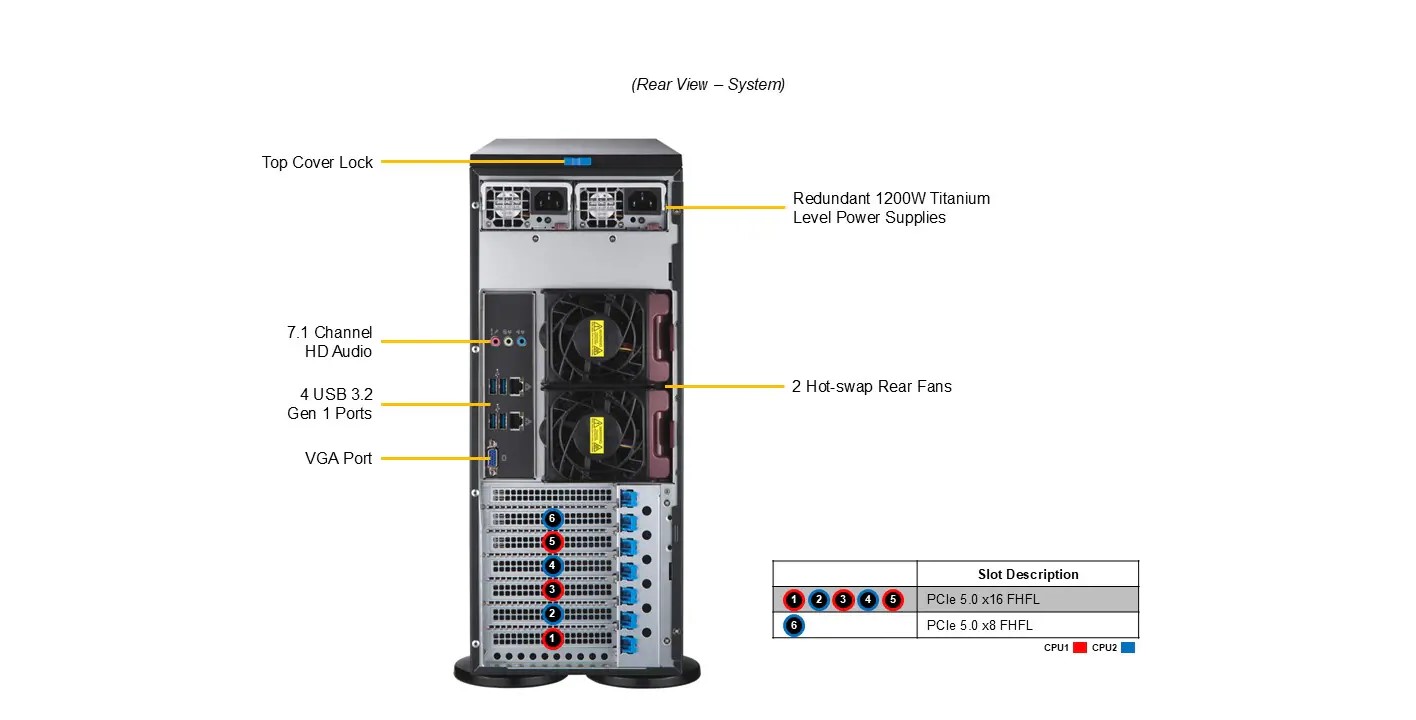

| Input / Output |
| LAN | 2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1) |
| USB | 4 USB 3.0 Type-A ports(Rear) |
| 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 VGA port |
| DOM | 2 SATA DOM (Disk on Module) ports |
| Audio | 7.1 HD Audio |
| Line Out |
| Mic in |
| System BIOS |
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management |
| Software | SuperCloud Composer |
| Supermicro Server Manager (SSM) |
| Supermicro SuperDoctor® 5 (SD5) |
| Gestor de actualizaciones de Supermicro (SUM) |
| Super Diagnóstico Offline (SDO) |
| Servicio Thin-Agent (TAS) de Supermicro |
| Asistente de Automatización de SuperServer (SAA) ¡Nuevo! |
| Power configurations | ACPI/APM Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| Chassis |

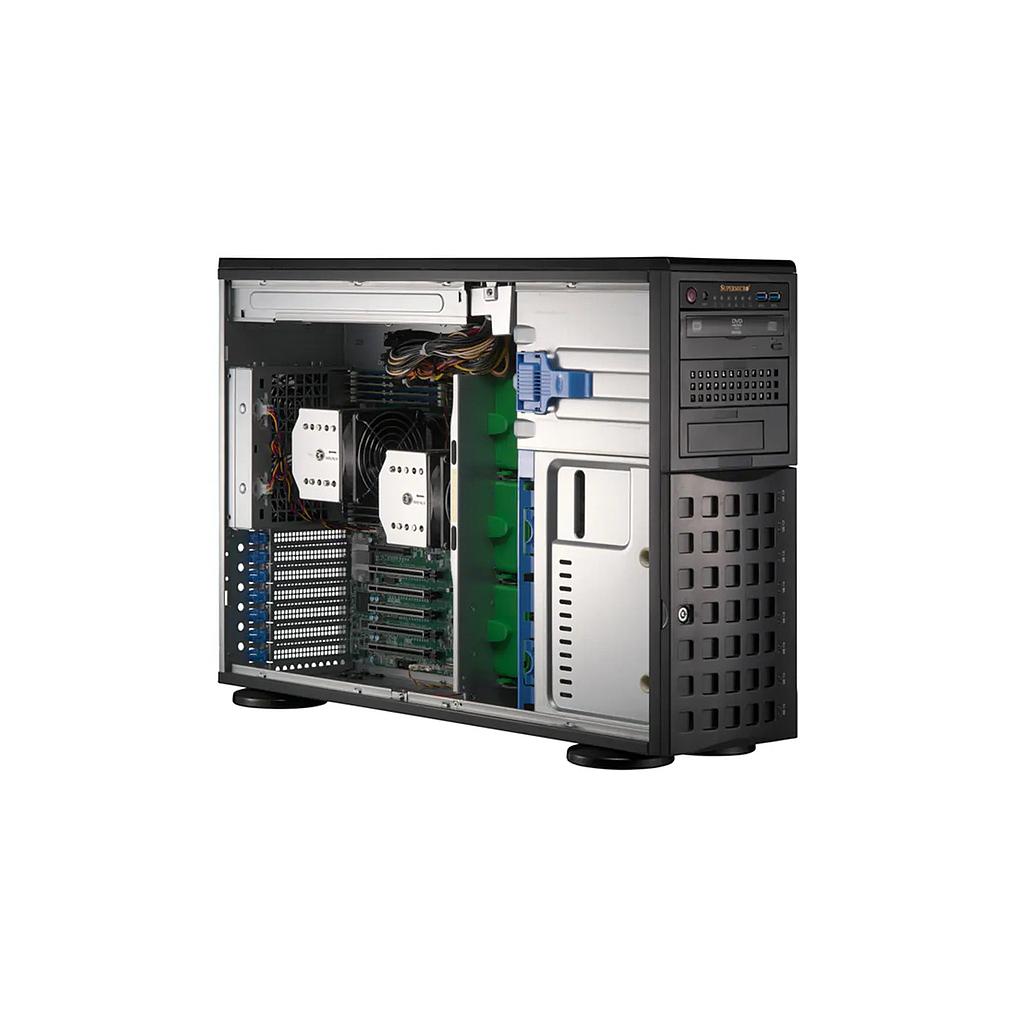

| Form Factor | 4U Tower Rackmount |
| Model | CSE-745BTS-R1K23BP3 |
| Dimensions and Weight |
| Height | 17.8" (452 mm) |
| Width | 7" (178 mm) |
| Depth | 25.5" (647 mm) |
| Package | 24.6" (H) x 14" (W) x 31.3" (D) |
| Weight | Net Weight: 59 lbs (26.76 kg) |
| Gross Weight: 62 lbs (28.12 kg) |
| Available Color | black |
| Front Panel |
| LED | Power status LED |
| HDD activity LED |
| Network activity LEDs |
| Buttons | Power On/Off button |
| Reset button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Default: Total 8 bays 8 front fixed 3.5"/2.5" NVMe/SAS*/SATA drive bays |
| 8 front fixed 3.5"/2.5" NVMe/SAS*/SATA drive bays |
| Option A: Total 16 bays 8 front fixed 3.5"/2.5" SAS/SATA drive bays 8 front fixed 2.5" NVMe/SAS/SATA drive bays |
| 8 front fixed 3.5"/2.5" SAS/SATA drive bays |
| 8 front fixed 2.5" NVMe/SAS/SATA drive bays |
| Ver opciones de accionamiento |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
| Ver opciones M.2 |
| Peripheral Bays | 1 DVD bay |
| System Cooling |
| Fans | 5x 8cm heavy duty fans with optimal fan speed control |
| Operating Environment |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
