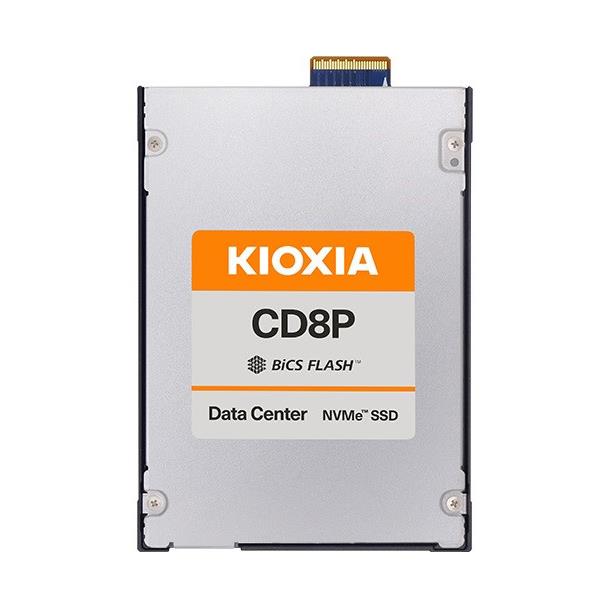

Kioxia KCD8XPJE3T84 3.84TB NVMe Solid-State Drive PCIe 5.0 NVMe 2.0 E3.S 7mm BiCS FLASH TLC 1DWPD Sanitize Instant Erase (SIE) CD8P-R Series

Data Center NVMe Read Intensive SSD

KIOXIA CD8P-R Series is a read-intensive data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe 4.0 SSDs (KIOXIA CD8-R Series 2.5-inch).

Featuring KIOXIA BiCS FLASH generation 5 TLC flash memory, CD8P-R E3.S form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 3.84TB, making them well-suited for hyperscale data center applications.

Key Features

• PCIe 5.0, NVMe 2.0 specification compliant

• Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)

• Form factor: E3.S, 7.5 mm thickness

• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH generation 5 TLC flash memory

• Single-port design, optimized for data center class workloads

• Consistent performance and reliability for demanding 24x7 environments

• Designed for high-density storage deployments

• Power loss protection (PLP) and end-to-end data correction

Key Applications

• Hyperscale

• IoT and big data analytics

• Online transaction processing (OLTP)

• (transactional and relational databases)

• Virtualized environments

• Streaming media and content delivery networks
