| GPU |
| Max GPU Count | Up to 8 double-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 24 DIMM slots |
| Max Memory (1DPC): 6.0TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): 6.0TB 8800MT/s ECC DDR5 MRDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GBASE-T with ASPEED AST2600 |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| Front Panel |
| Buttons | Power On/Off button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |

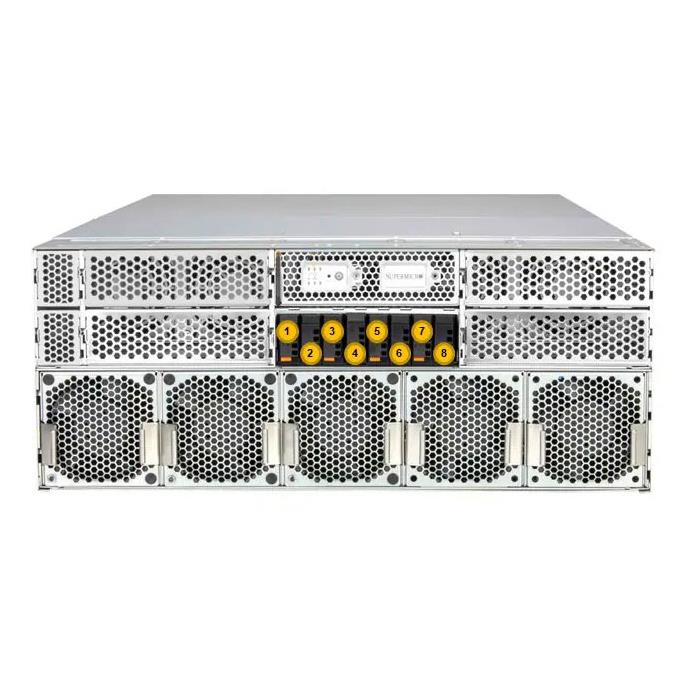

| Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| 8 front hot-swap E1.S NVMe drive bays |
| M.2 | View M.2 Options |
| Product SKUs |
| Product SKUs | SYS-422GL-NR |
| Motherboard |

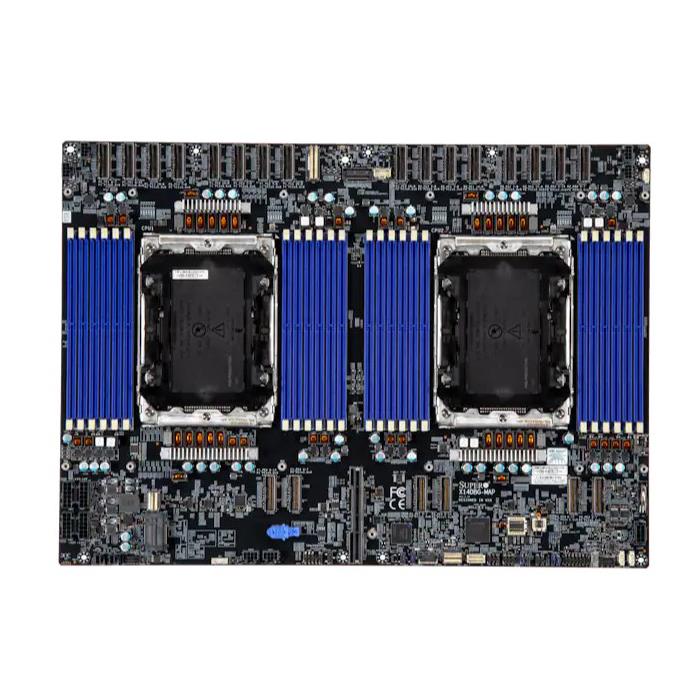

| Motherboard | Super X14DBG-MAP |
| Processor |
| CPU | Dual Socket BR (LGA-7529) |
| Intel® Xeon® 6900 series processors with P-cores |
| Core Count | 72C/144T |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| Input / Output |
| USB | 1 USB 3.0 Type-A port(Rear) |
| Video | 1 mini-DP port |
| TPM | 1 TPM header |
| Chassis |

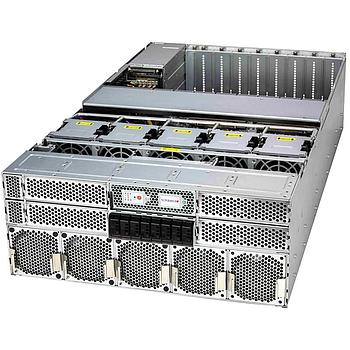

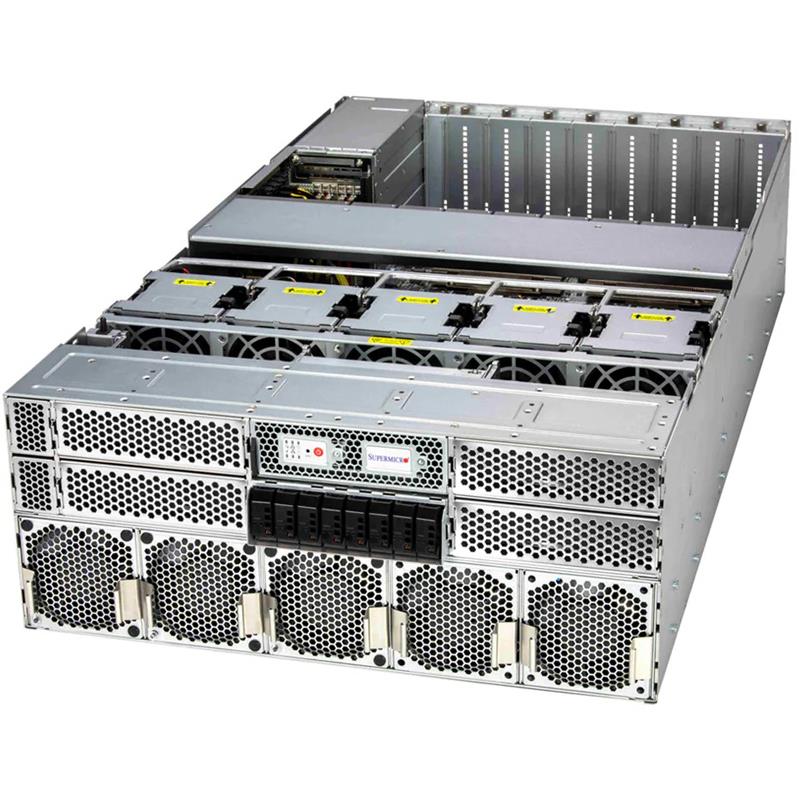

| Form Factor | 4U Rackmount |
| Model | CSE-MG401TS-R0ANDFP |
| Dimensions and Weight |
| Height | 6.93" (176 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 31.5" (800 mm) |
| Package | 27.32" (H) x 49.41" (W) x 19.49" (D) |
| Weight | Gross Weight: 96.45 lbs (43.75 kg) |
| Net Weight: 49.5 lbs (22.45 kg) |
| Available Color | Silver |
| System Cooling |
| Fans | 10 Fan 80mm Fan(s) |
| Operating Environment |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
