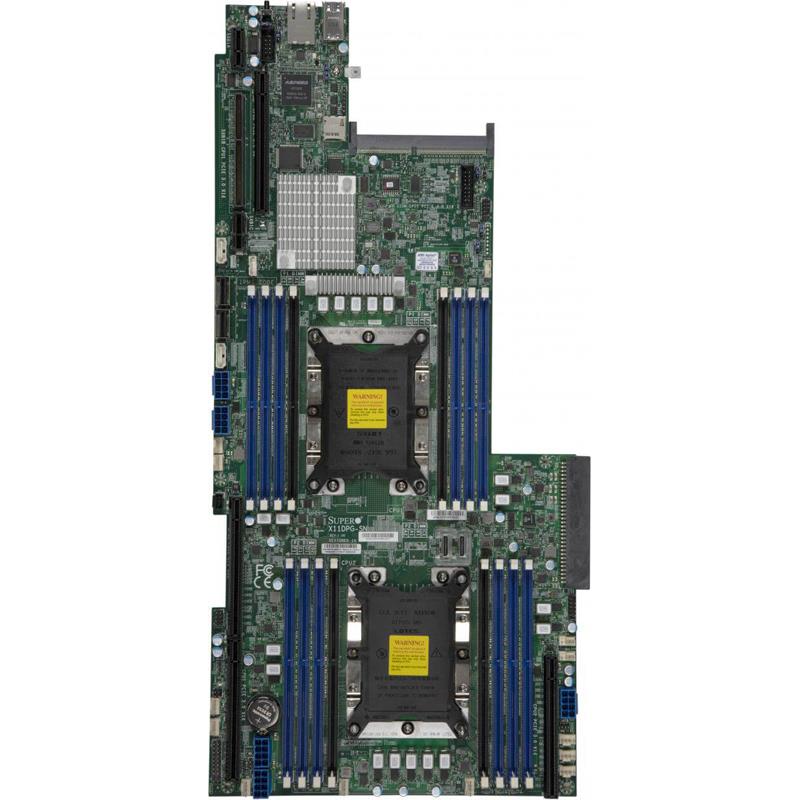

Supermicro X11DPG-SN GPU Serverboard Proprietary Dual Socket Socket P (LGA-3647) Intel Xeon Scalable 2nd Generation Processors and Intel Xeon Scalable Processors

Supermicro X11DPG-SN GPU Serverboard Proprietary Dual Socket Socket P (LGA-3647) Intel Xeon Scalable 2nd Generation Processors and Intel Xeon Scalable Processors

  • CPU TDP up to 205W and 3 UPI links at 10.4 GT/s

  • Up to 4TB DDR4-2933MHz ECC memory in 16 DIMM slots

  • Intel C621 controller with 10 SATA3 ports and RAID 0,1,5,10

  • Supports Intel Xeon Scalable 2nd Generation Processors with Dual Socket LGA-3647

Motherboard Proprietary Support Dual Socket Socket P (LGA-3647) For Intel Xeon Scalable 2nd Generation Processors and Intel Xeon Scalable Processors. Up To 205W TDP, 3 UPI up to 10.4 GT/s. Up To 4TB 3DS ECC RDIMM/LRDIMM, DDR4-2933MHz, In 16 DIMM Slots, Up To 2TB Intel Optane DC Persistent Memory In Memory Mode (Cascade Lake Only). On-Board: Intel C621 Controller For 10 SATA3 (6 Gbps) Ports, RAID 0, 1, 5, 10. LAN Ports: Options Provided Via SIOM Or AOC NIC. Others: 1 RJ45, 1 VGA Port, 1 COM Port. Includes 4 PCIe 3.0 x16, 1 PCIe 3.0 x8 - (MBD-X11DPG-SN)

Contact us for volume discounts

    This combination does not exist.

    InStock
    3 lb
    Email For Price

    1. 1 VGA port
    2. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
    3. Intel® C621
    4. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
    5. 4 PCIe 3.0 x16, 1 PCIe 3.0 x8, 2 PCIe 3.0 NVMe x4 Internal Port(s)
    6. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    7. Networking options provide via SIOM or AOC NIC

    Extra Specifications for Supermicro X11DPG-SN GPU Serverboard Proprietary Dual Socket Socket P (LGA-3647) Intel Xeon Scalable 2nd Generation Processors and Intel Xeon Scalable Processors

    Product SKUs
    Product SKUsMBD-X11DPG-SN
    Physical Stats
    Form FactorProprietary
    Dimension9.2" x 19.8" (23.37cm x 50.29cm)
    Processor
    CPU2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
    Note*2933 MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    System Memory
    Memory Capacity16 DIMM slots
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz
    Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
    Memory Type2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM SizesRDIMM: 64GB, 128GB
    LRDIMM: 128GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C621
    SATAIntel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2500
    Graphics1 ASPEED AST2500 BMC port(s)
    Network ControllersN/A
    Input / Output
    LAN1 RJ45 Dedicated IPMI LAN port
    USB2 USB 3.0 port(s) (2 rear)
    Video Output1 VGA port(s)
    Serial Port1 COM Port(s) (1 header)
    TPM1 TPM Header
    Expansion Slots
    PCIe4 PCIe 3.0 x16,
    1 PCIe 3.0 x8
    System BIOS
    BIOS TypeAMI UEFI
    Management
    SoftwareSuperDoctor® 5, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog
    PC Health Monitoring
    VoltageSystem temperature, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 12 -fan status
    LEDUID/Remote UID
    CPU / System Overheat LED
    Suspend static indicator LED
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support
    PECI
    FANPWM fan speed control
    Overheat LED indication
    12x 4-pin fan headers (up to 12 fans)
    Other FeaturesUID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion detection, ACPI power management

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
