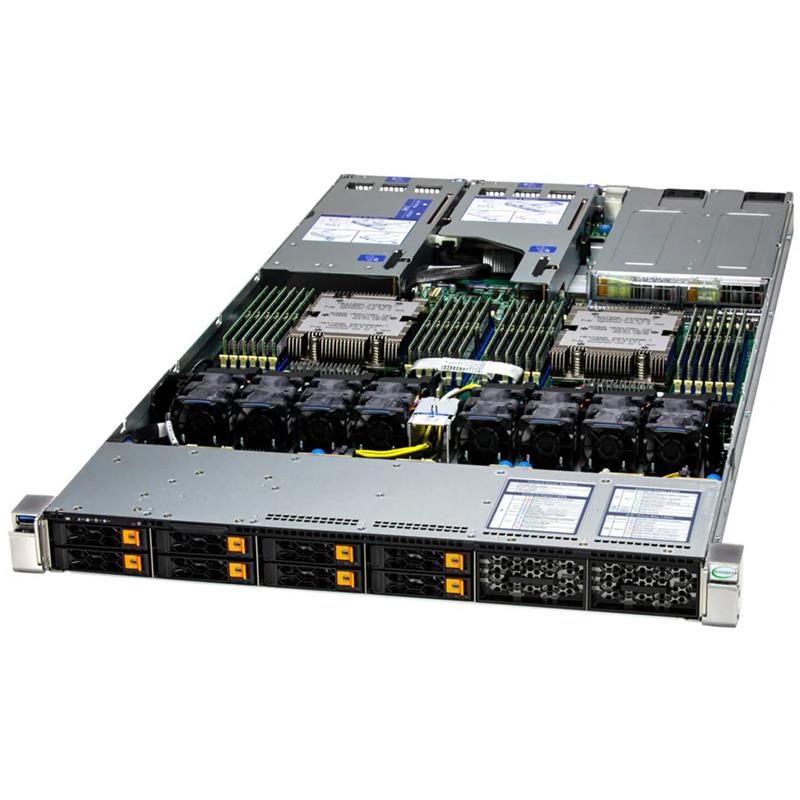

Supermicro AS-1126HS-TN Hyper A+ 1U Barebone Dual AMD EPYC 9005/9004 Series Processors
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
• High Performance Computing (HPC)
Barebone 1U Rackmount SuperServer, Supports Dual Socket SP5 Processors For AMD EPYC 9005/9004 Series Processors, Up To 384C/768T, Supports Up To 500W TDP CPUs. Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor), Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor) In 24 DIMM Slots. Chipset: System on Chip, On-Board: NVMe/SATA. Drive Bays / Storage: 8 Front Hot-Swap 2.5in NVMe/SATA Drive Bays, 2 M.2 PCIe 3.0 x4 NVMe Slots (M-Key 2280/22110). Network Connectivity: Flexible Via AIOM. Optional Configuration For Power Supply - (CSE-HS101-R000NFP + H14DSH) - AS-1126HS-TN
1. Dual AMD EPYC™ 9005/9004 Series Processors
2. Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
3. 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 FHHL slot
4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
5. 8 Hot-swap 2.5" NVMe/SATA drive bays Optional 4 Hot-swap 2.5" NVMe/SATA drive support via additional parts 2 M.2 PCIe 3.0 NVMe slots
6. Dual 1600W / 2000W / 2600W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1126HS-TN Hyper A+ 1U Barebone Dual AMD EPYC 9005/9004 Series Processors
| Product SKUs | ||
| Product SKUs | AS -1126HS-TN | |
| Motherboard | ||
| Motherboard | Super H14DSH | |
| Processor | ||
| CPU | Dual processor(s) | |
| AMD EPYC™ 9005/9004 Series Processors | ||
| Core Count | Up to 384C/768T | |
| Note | Supports up to 500W TDP CPUs * | |
| *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details. | ||
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 24 DIMM slots | ||
| Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) | ||
| Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | Via AIOM | |
| View AOC Options | ||
| View AIOM Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB | 2 USB 3.0 ports(rear) | |
| 1 USB 3.0 port(front) | ||
| Video | 1 VGA port | |
| TPM | 1 TPM Onboard/port 80 | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| UEFI 2.8 | ||
| ACPI 6.5 | ||
| SMBIOS 3.7 or later | ||
| Management | ||
| Software | KVM with dedicated LAN | |
| IPMI 2.0 | ||
| Supermicro Thin-Agent Service (TAS) | ||
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| IPMIView | ||
| Power configurations | Power-on mode control for AC power loss recovery | |
| Power button override mechanism, | ||
| ACPI/APM Power Management | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-HS101-R000NFP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 30.66" (778.7 mm) | |
| Package | 8.82" (H) x 26.46" (W) x 43.31" (D) | |
| Weight | Gross Weight: 41.4 lbs (18.8 kg) | |
| Net Weight: 19.2 lbs (8.7 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| LED | LAN1 activity | |
| Power status | ||
| HDD activity | ||
| System information | ||
| Buttons | UID button | |
| Power On/Off | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| CXL Support | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| View NVMe Options | ||
| Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SATA* drive bays | ||
| 8 front hot-swap 2.5" NVMe*/SATA* drive bays | ||
| (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SATA* drive bays | ||
| 12 front hot-swap 2.5" NVMe*/SATA* drive bays | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 8 counter-rotating 40x40x56mm Fan(s) | |
| Air Shroud | 2 Air Shrouds | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Environmental / Recycling | ||
| Recycle | Return Server-End of Life Product | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 12 NVMe | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,RoHS | ||
| 12 NVMe | CBL-PWEX-1136-40 | $ 25.00 | 1 | MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHS | ||
| 12 NVMe | MCP-220-00178-0B | $ 24.50 | 4 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | ||
| 12 NVMe | CBL-MCIO-1347M5REL | 1 | MCIO x8 (RE to LE),47cm,32AWG,RoHS | |||
| 12 NVMe | CBL-MCIO-1462M5FRFB2 | $ 136.00 | 1 | 2 MCIOx8 (STR to RF),FFC,FOLD,62/52cm,30AWG,RoHS | ||
| 12 NVMe | CBL-MCIO-1463M5FLFB1-J | 1 | 2 MCIOx8 (STR to LF),FFC,FOLD,63/53cm,30AWG,RoHS | |||
| 12 NVMe | CBL-MCIO-1473M5FRF | 1 | MCIOx8 (STR to RF),FFC,FOLD,73cm,30AWG,RoHS | |||
| 12 SATA | MCP-220-00178-0B | $ 24.50 | 4 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | ||
| 12 SATA | CBL-PWEX-1136-40 | $ 25.00 | 1 | MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHS | ||
| 12 SATA | CBL-MCIO-1255L4Y • | 2 | (MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS | |||
| 12 SATA | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS | ||
| 12 SATA | BPN-NVME5-HS119N-S4R | $ 106.00 | 1 | 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,RoHS | ||
| 8 NVMe | CBL-MCIO-1347M5REL | 1 | MCIO x8 (RE to LE),47cm,32AWG,RoHS | |||
| 8 NVMe | CBL-MCIO-1473M5FRF | 1 | MCIOx8 (STR to RF),FFC,FOLD,73cm,30AWG,RoHS | |||
| 8 NVMe | CBL-MCIO-1463M5FLFB1-J | 1 | 2 MCIOx8 (STR to LF),FFC,FOLD,63/53cm,30AWG,RoHS | |||
| 8 SATA | CBL-MCIO-1255L4Y • | 1 | (MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS | |||
| 8 SATA | CBL-CDAT-1062Y-45 | $ 21.50 | 1 | Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHS | ||
| Cable Management Arm | MCP-290-11901-0N | $ 115.00 | 1 | 41" ball-bearing rail set for Hyper servers | ||
| Cable Management Arm | MCP-290-00168-0N ( ***Requires MCP-290-11901-0N ***) | 1 | Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N *** | |||
| Power Supply Options & Accessories | PWS-1K63A-1R | $ 438.50 | 2 | 1U 1000W/1600W Redundant Titanium power supply | ||
| Power Supply Options & Accessories | PWS-2K04D-1R | $ 530.50 | 2 | 1U 2000W -48Vdc single output power supply | ||
| Power Supply Options & Accessories | PWS-2K07A-1R | $ 530.50 | 2 | 1U 2000W Redundant Titanium power supply | ||
| Power Supply Options & Accessories | PWS-1K31D-1R | $ 444.00 | 2 | 1U 1300W -48Vdc single output power supply | ||
| Power Supply Options & Accessories | CBL-PWEX-1058 | $ 99.50 | 1 | 48VDC input power cable for PWS-2K04D-1R | ||
| Power Supply Options & Accessories | CBL-PWEX-0710-JP | $ 76.50 | 1 | 48VDC input power cable for PWS-1K30D-1R | ||
| Power Supply Options & Accessories | PWS-1K24A-1R | $ 336.50 | 2 | 1U 800W/1200W Redundant Titanium power supply | ||
| Power Supply Options & Accessories | PWS-2K63A-1R | $ 620.50 | 2 | 1U 2600W Redundant Titanium power supply | ||
| Rail Set | MCP-290-11902-0N (included in the system ) | 1 | 35.25" ball-bearing rail set,without auto latch | |||
| Rail Set | MCP-290-11901-0N | $ 115.00 | 1 | 41" Long ball-bearing rail set, without auto latch | ||
| TPM security module (optional, not included) | AOM-TPM-9671V | $ 56.50 | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor | ||
| TPM security module (optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
